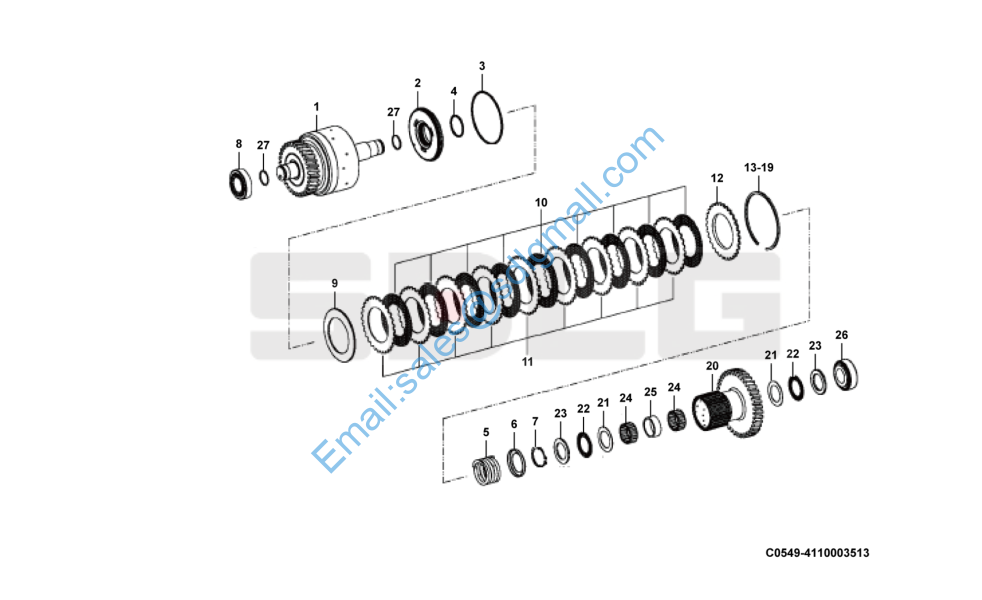

B876F C0549-4110003513 离合器4661.173.006 Clutch assembly

1 4110003513121 离合器4661.273.003 Clutch N 1
2 4110003513013 活塞4661.375.019 Piston N 1
3 4110003513014 O型圈0634.313.005 O-ring Y 1
4 4110003513015 O型圈0634.313.395 O-ring Y 1
5 4110003513017 压缩弹簧0732.042.926 Compression spring N 1
6 4110003513018 弹簧座4661.302.005 Spring brace N 1
7 4110003513019 销0631.306.174 Pin N 1
8 4110003513084 滚轴轴承4661.201.002 Roller bearing Y 1
9 4110003513112 垫板0501.323.146 Gasket N 1
10 4110003513021 内摩擦片0501.232.652 Friction disc Y 9
11 4110003513022 外摩擦片0501.321.410 Friction disc Y 9
12 4110003513023 受压盘0501.321.411 Pressure plate N 1
13 4110003513024 固位环h=2,50 0730.514.792 Snap ring Y 1
14 4110003513025 固位环h=2,75 0730.514.793 Snap ring Y 1
15 4110003513026 固位环D-TEIL*h=3,00 0730.514.794 Snap ring Y 1
16 4110003513027 固位环h=3,25 0730.514.795 Snap ring Y 1
17 4110003513028 固位环h=3,50 0730.514.796 Snap ring Y 1
18 4110003513029 固位环h=3,75 0730.514.797 Snap ring Y 1
19 4110003513030 固位环h=4,00 0730.514.798 Snap ring Y 1
20 4110003513122 齿轮总成4661.373.007 Gear N 1
21 4110003513123 止推垫片0635.290.002 Thrust washer N 2
22 4110003513124 滚针轴承0635.302.019 Needle bearing N 2
23 4110003513125 定位环0635.290.031 Locating ring N 2
24 4110003513126 滚针轴承0735.321.222 Needle bearing N 2
25 4110003513127 轴衬0730.163.212 Bushing N 1
26 4110003513128 滚轴轴承4661.273.005 Roller bearing N 1
27 4110003513085 密封环0734.401.296 Sealing ring Y 2
