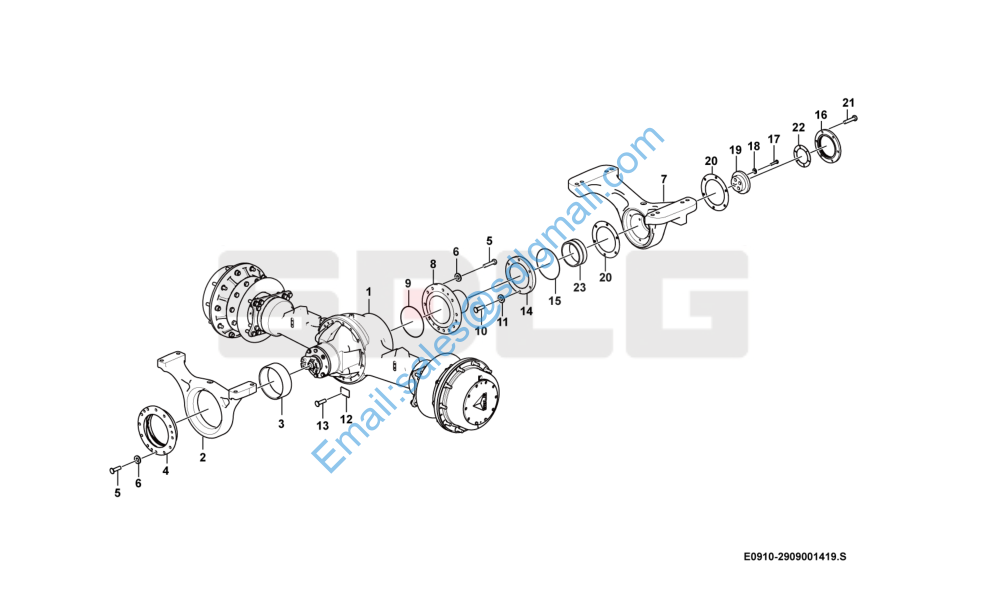

LFT26 E0910-2909001419 AK45A摆动型驱动桥总成 Rear axle

1 29090014201 AK45A后驱动桥总成 Rear axle Y 1
2 29090014111 前摆动支架 Bracket Y 1
3 29090008541 套 Sleeve Y 1
4 29090008552 衬套 Sleeve Y 1
5 4011001323 螺栓GB5785-M161.550flZnyc-8.8-480 Screw Y 28
6 29070009511 垫圈 Washer Y 28
7 29090100061 后摆动支架 Bracket Y 1
8 29090014181 支承轴 Support shaft Y 1
9 4041000021 O形圈LGB308-2603.5 O-ring Y 1 10 4011001243 螺栓GB5783-M1235flZnyc-8.8-480 Screw Y 6
11 29070010131 垫圈 Washer Y 12
12 29090011401 后桥标牌 Name plate N 1
13 4019000012 铆钉GB827-35-BL2 Rivet Y 4 14 29090000101 密封盖 Sealing cover Y 1 15 4030000021 O形圈GB3452.1-1605.30G O-ring Y 1
16 29090000141 端盖 End plate Y 1
17 4011001367 螺栓GB5785-M201.590flZnyc-8.8-480 Bolt Y 4
18 29070011121 垫圈 Washer Y 4
19 29090000131 垫块 Block Y 1
20 29090000121 衬垫 Shim Y 2
21 4011001317 螺栓GB5782-M12*50flZnyc-8.8-480 Screw Y 6
22 29090000161 垫片 Shim Y 1
23 29090000112 轴套 Sleeve Y 1
