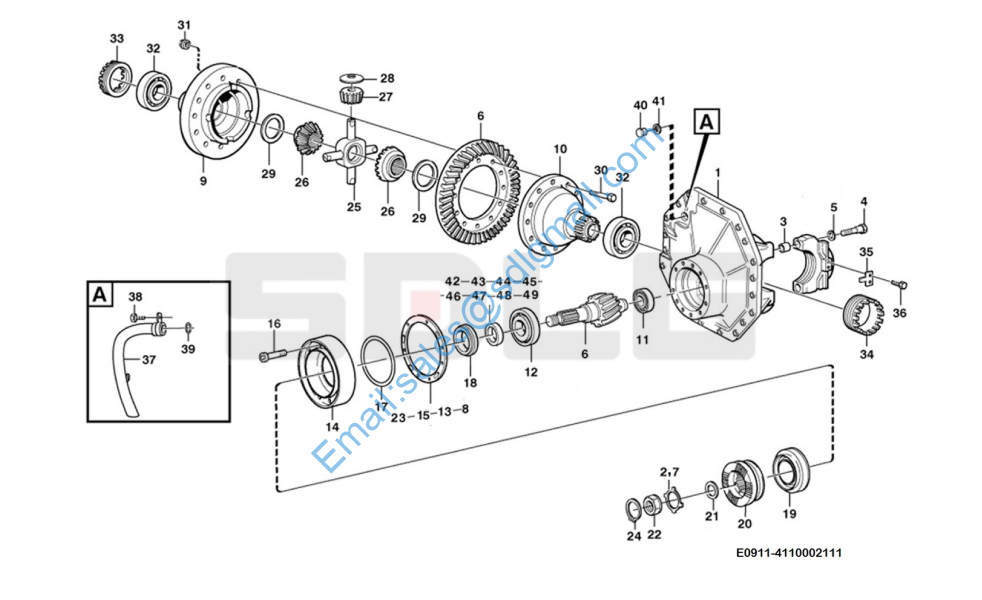

L989F Rear final drive assembly E0911-4110002111

1 4110002111078 中央机架 Centre housing N 1
2 4110002111124 锁垫圈 Lock washer Y 1
3 4110002111079 轴衬 Bushing Y 4
4 4110002111080 螺丝 Screw Y 4
5 4110002111081 垫圈 Washer Y 4
6 4110002111082 驱动齿轮组 Drive gear set N 1
7 4110002111123 锁垫圈 Lock washer Y 1
8 4110002111122 垫片 Shim Y 1
9 4110002111083 差分机架 Differential housing N 1
10 4110002111084 差分机架 Differential housing N 1
11 4110002111085 滚轴轴承 Roller bearing Y 1
12 4110002111086 滚轴轴承 Roller bearing Y 1
13 4110002111121 垫片 Shim Y 1
14 4110002111087 小齿轮轴承套 Pinion bearing sleeve Y 1
15 4110002111120 垫片 Shim Y 1
16 4110002111088 螺丝 Screw Y 8
17 4110002111089 O型圈 O-ring Y 1
18 4110002111090 滚轴轴承 Roller bearing Y 1
19 4110002111091 密封环 Sealing ring N 1
20 4110002111092 配对凸缘 Companion flange N 1
21 4110002111093 垫圈 Washer Y 1
22 4110002111094 螺母 Nut Y 1
23 4110002111119 垫片 Shim Y 1
24 4110002111095 固位环 Retaining ring Y 1
25 4110002111096 十字轴 Spider Y 1
26 4110002111097 差分侧向传动装置 Differential side gear Y 2
27 4110002111098 差分侧向传动装置 Differential side gear Y 4
28 4110002111099 止推垫圈 Thrust washer N 4
29 4110002111100 止推垫圈 Thrust washer Y 2
30 4110002111101 螺丝 Screw Y 16

31 4110002111102 锁定螺母 Lock nut Y 16
32 4110002111103 滚轴轴承 Roller bearing Y 2
33 4110002111104 定位螺母 Setting nut Y 1
34 4110002111105 轴承调节器 Bearing adjuster Y 1
35 4110002111106 锁板 Lock plate Y 2
36 4110001236 螺栓946440 Screw N 4
37 4110002111107 管 Pipe Y 1
38 11210032 法兰螺钉 Flange screw Y 2
39 4110002111108 O型圈 O-ring Y 1
40 4110002111109 塞 Plug Y 1
41 4110002111110 垫圈 Gasket Y 1
42 4110002111111 定位套筒 Spacer sleeve Y 1
43 4110002111112 定位套筒 Spacer sleeve Y 1
44 4110002111113 定位套筒 Spacer sleeve Y 1
45 4110002111114 定位套筒 Spacer sleeve Y 1
46 4110002111115 定位套筒 Spacer sleeve Y 1
47 4110002111116 定位套筒 Spacer sleeve Y 1
48 4110002111117 定位套筒 Spacer sleeve Y 1
49 4110002111118 定位套筒 Spacer sleeve Y 1
