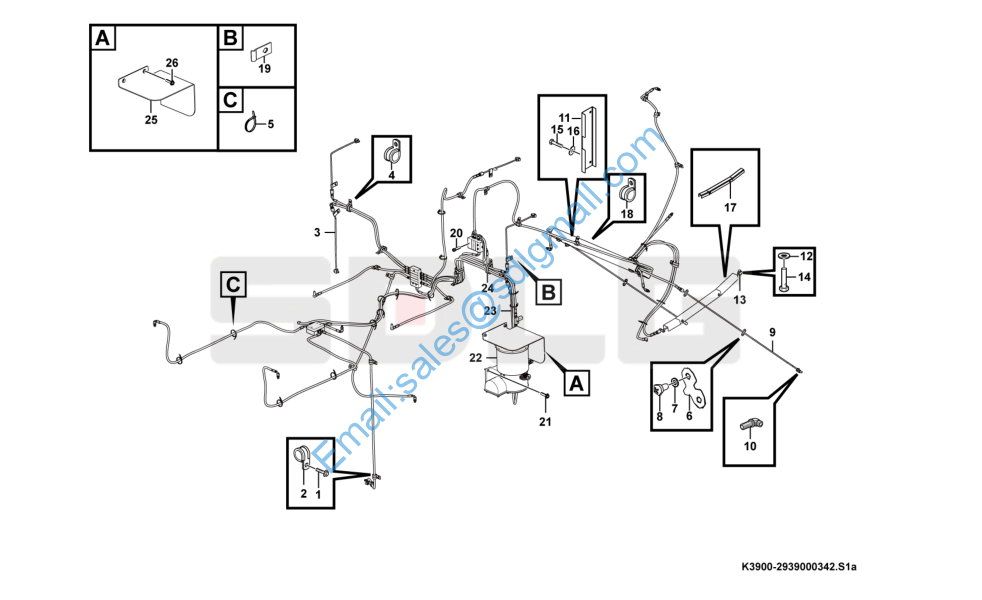

L989F K3900-2939000342 L989F集中润滑系统（加高臂） L989f lubricating system

1 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 29

2 4041002378 管夹LGB169-A10*12.5 Clamp Y 15

3 29390001351 左动臂缸润滑油管 Pipe Y 1

4 4041002407 管夹LGB169-A15*12.5 Clamp Y 5

5 4190000020 扎丝LG13-ZS4*250 Cable tie Y 18

6 29250000311 管夹 Clamp Y 5

7 4015000035 垫圈GB93-6-65Mn Spring washer Y 23

8 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 10

9 29390002721 动臂润滑油管 Lubricating pipe Y 2

10 29390002681 弯接头 Nipple Y 2

11 29390001771 护罩 Protecting cover Y 1

12 29250000301 垫片 Shim Y 6

13 29390003301 拉杆润滑油管 Lubricating pipe Y 1

14 29250000291 通油螺栓 Bolt Y 3

15 4011001239 螺栓GB5783-M12*20flZnyc-8.8-480 Bolt Y 4

16 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 4

17 29390003321 防护罩 Protecting cover Y 1

18 4041002412 管夹LGB169-A20*10 Clamp Y 2

19 29250013741 压板 Plate Y 4

20 4014000548 螺钉GB70.1-M6*40flZnyc-8.8-480 Screw Y 13

21 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 3

22 29390003411 L989F集中润滑采购装机总成 L989f lubricating system N 1

23 29390001371 右动臂缸润滑油管 Pipe Y 1

24 4041002413 管夹LGB169-A25*10 Clamp Y 3

25 29250024071 护板 Plate N 1

26 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 2
