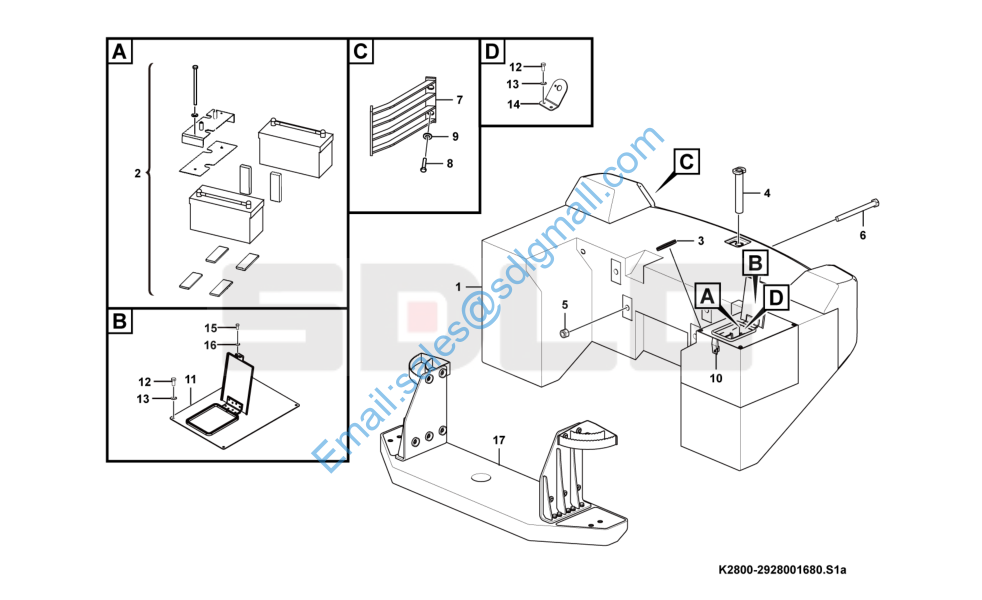

L989F K2800-2928001680 Counterweight

1 29280016791 平衡铁 Counterweight Y 1

2 29280015861 蓄电池固定总成 Battery retainer N 1

3 4043004545 护套LGB313-B10*80*125 Rubber sleeve Y 1

4 29280014301 牵引销 Towing pin Y 1

5 4013000064 螺母GB889.2-M30*2EpZn-8 Lock nut Y 4

6 4011000703 螺栓GB5785-M30*2*330EpZn-8.8 Bolt Y 4

7 29280015121 防护网 Lamp shroud Y 2

8 4011001291 螺栓GB5783-M6*12flZnyc-8.8-480 Bolt Y 8

9 4015000424 垫圈GB97.1-6flZnyc-300HV-480 Washer Y 8

10 4190000025 扣锁NBxs1013 Lock Y 1

11 29280016761 盖板 Plate N 1

12 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 6

13 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 6

14 29280015871 电源开关固定板 Plate Y 1

15 4014000515 螺钉GB818-M5*10flZnyc-4.8-480 Screw Y 5

16 4015000431 垫圈GB97.1-5flZnyc-300HV-480 Washer Y 5

17 29280016861 副配重 Counterweight N 1
