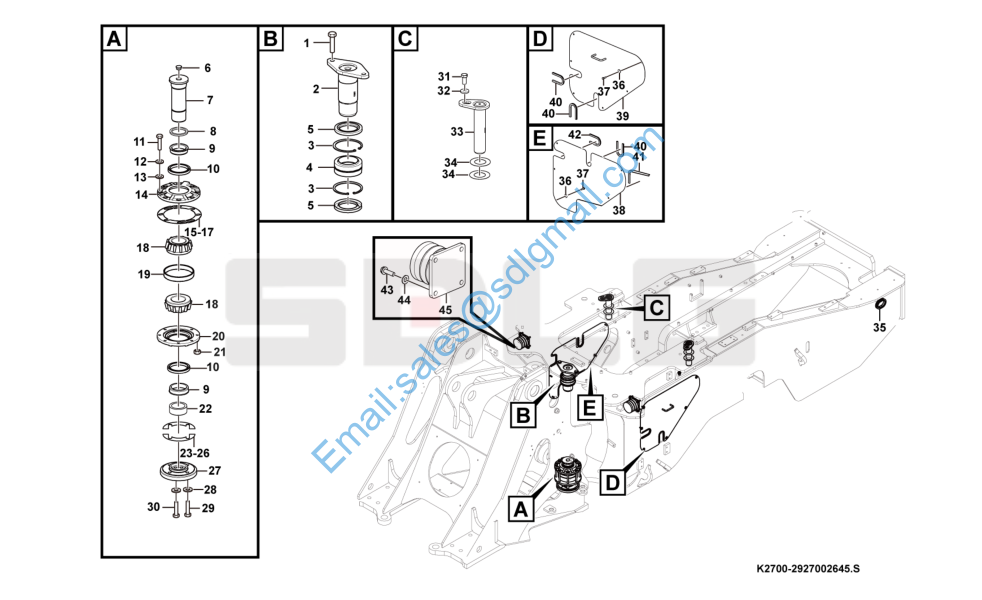

L989F K2700-2927002645 Accessories

1 4011001387 螺栓GB5783-M16*45flZnyc-10.9-480 Bolt Y 2

2 29270009381 销轴 Pin Y 1

3 4015000011 挡圈GB893.1-130-65Mn Retaining ring Y 2

4 4021000233 关节轴承GB9163-GE90ES-2RS Spherical plain bearing Y 1

5 29270009461 防尘圈 Sealing ring Y 2

6 29270009421 塑料塞 Plastic plug Y 2

7 29270009431 销 Pin Y 1

8 29270009441 隔套 Sleeve Y 1

9 29270009451 套 Sleeve Y 2

10 4030000260 旋转轴唇形密封圈GB9877.1-B100*125*12 Sealing ring Y 2

11 4011001329 螺栓GB5782-M12*150flZnyc-8.8-480 Screw Y 8

12 4015000026 垫圈GB93-12-65Mn Spring washer Y 8

13 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

14 29270009471 盘 Disc Y 1

15 4043002667 开口垫片LGB338-4*15*170*0.2 Shim Y 2

16 4043002666 开口垫片LGB338-4*15*170*0.1 Shim Y 2

17 4043002664 开口垫片LGB338-4*15*170*0.5 Shim Y 2

18 4021000231 滚动轴承GB297-32316 Roller bearing Y 2

19 29270009911 隔套 Sleeve Y 1

20 29270009511 盘 Disc Y 1

21 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 8

22 29270009521 套 Sleeve Y 1

23 4043002668 开口垫片LGB338-2*19*105*0.1 Shim Y 2

24 4043002669 开口垫片LGB338-2*19*105*0.15 Shim Y 2

25 4043002670 开口垫片LGB338-2*19*105*0.5 Shim Y 2

26 4043002671 开口垫片LGB338-2*19*105*1.2 Shim Y 2

27 29270009571 盘 Disc Y 1

28 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 10

29 4011001328 螺栓GB5783-M16*50flZnyc-8.8-480 Screw Y 4

30 4011001267 螺栓GB5782-M16*90flZnyc-8.8-480 Screw Y 4

31 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

32 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 2

33 29270009581 转向销轴 Pin Y 2

34 4043000032 垫片LGB303-50*90*1 Shim Y 4

35 29270009101 走线胶套 Rubber sleeve Y 4

36 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 12

37 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 12

38 29270012981 盖板 Plate Y 1

39 29270011311 左挡板 Cover plate Y 1

40 4043001246 卡子胶条LGB320-U220 Sealing strip Y 3

41 4043001002 卡子胶条LGB320-U420 Sealing strip Y 1

42 4043001028 卡子胶条LGB320-U170 Sealing strip Y 1

43 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8

44 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8

45 4190001829 缓冲器 Absorber Y 2
