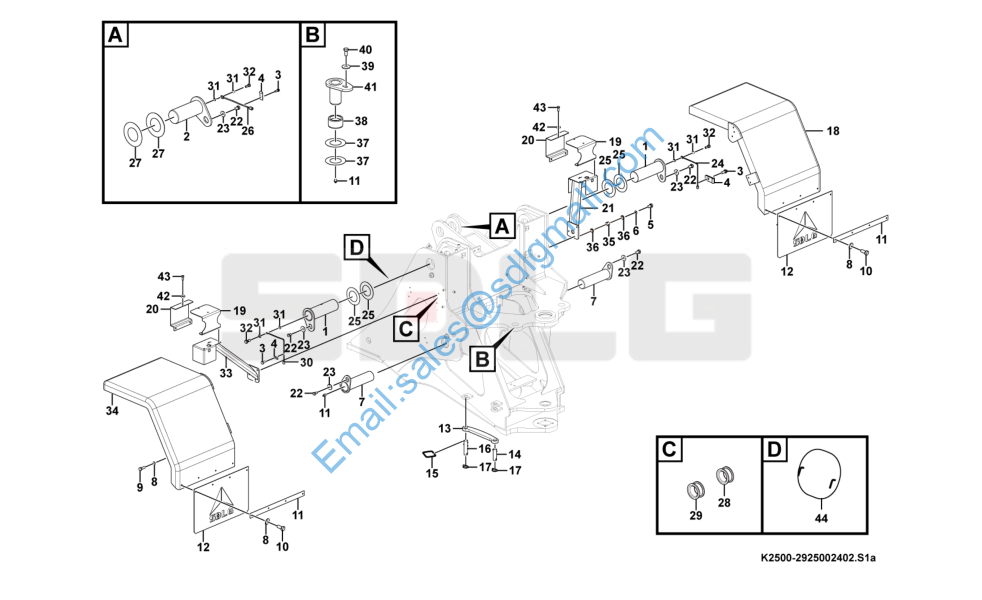

L989F K2500-2925002402 Accessories

1 4043004943 销轴LGB301-110*200N*370-1000G Pin Y 2

2 4043004620 销轴LGB301-100*140N*255-1000G Pin Y 1

3 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 3

4 29250013741 压板 Plate Y 6

5 4011001613 螺栓GB5783-M12*50flZnyc-8.8-480 Screw Y 6

6 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 6

7 4043004944 销轴LGB301-95*200N*370-1000G Pin Y 2

8 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 18

9 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 10

10 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

11 29250009341 压板 Plate Y 2

12 29250009331 橡胶板 Rubber cushion Y 2

13 29250009131 锁定杆 Transport lock Y 1

14 29250024231 锁定销轴 Pin Y 1

15 29280010021 挂钩 Tensioning hook Y 1

16 29250024241 锁定销轴 Pin Y 1

17 29270000081 卡环 Lock ring Y 2

18 29250024051 右挡泥瓦 Front fender N 1

19 29250016811 灯架护板 Protecting plate Y 2

20 29250011021 照灯网板 Protecting plate Y 2

21 29250025521 右灯架 Lamp bracket Y 1

22 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 5

23 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 5

24 29250025641 油管 Lubricating pipe Y 1

25 4043000043 垫片LGB303-110*180*1 Shim Y 4

26 29250015251 上转斗缸润滑油管 Pipe Y 1

27 4043000353 垫片LGB303-100*180*1 Shim Y 2

28 29250001351 走线胶套 Rubber sleeve Y 2

29 29250001361 走线胶套 Rubber sleeve Y 2

30 29250025621 油管 Lubricating pipe Y 1

31 29250000301 垫片 Shim Y 6

32 29250000291 通油螺栓 Bolt Y 3

33 29250025511 左灯架 Lamp bracket Y 1

34 29250024031 左挡泥瓦 Front fender Y 1

35 29370027081 套筒 Tube Y 6

36 29370027091 减震橡胶 Rubber damper Y 12

37 4043000032 垫片LGB303-50*90*1 Shim Y 4

38 4043000438 轴套LGB302-50*36A2 Bushing Y 2

39 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 2

40 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

41 29250009221 前转向销轴 Pin Y 2

42 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 10

43 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 10

44 29250014941 前盖板总成 Protecting cover Y 1
