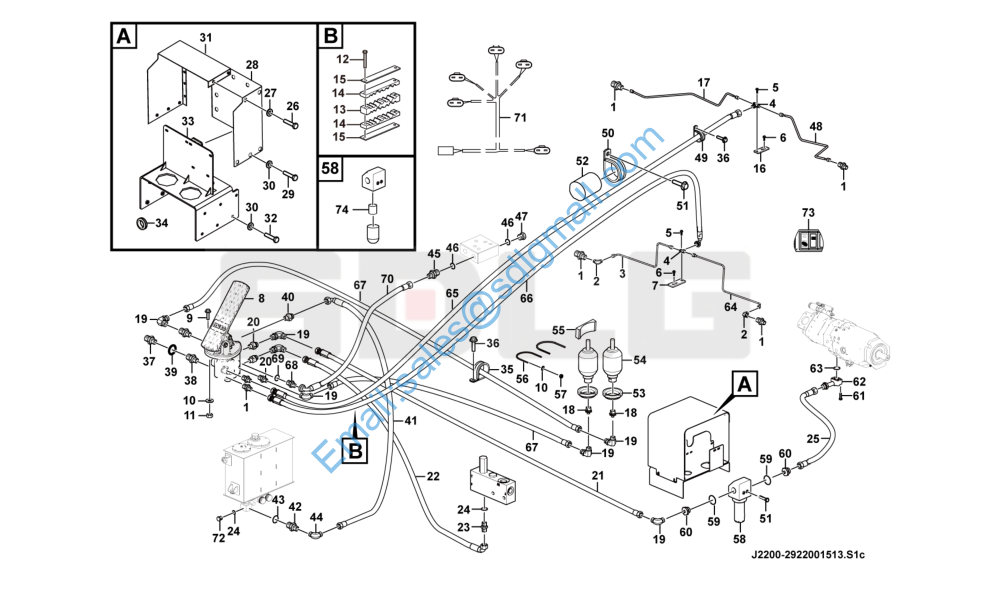

L989F J2200-2922001513 Service brake assembly

1 4120001695 接头GE10LM16*1.5EDOMDA3C Nipple Y 8

2 4190000176 过渡接头EW10LOMDA3C Nipple Y 3

3 29220015271 前桥右油管 Brake pipe Y 1

4 29220007831 三通接头 Three-way nipple Y 2

5 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 2

6 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 3

7 29220015301 前支架板 Bracket Y 1

8 4120005482 制动阀LT17MFEA080 Brake valve Y 1

9 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 3

10 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 7

11 4013000391 螺母GB6170-M8flZnyc-10-480 Nut Y 3

12 4011001568 螺栓GB5782-M10*100flZnyc-8.8-480 Screw Y 2

13 29220013071 橡胶垫块A Rubber plate Y 1

14 29220013081 橡胶垫块B Rubber plate Y 2

15 29220013091 压板 Plate Y 2

16 29220015831 桥油管支架 Bracket Y 1

17 29220015781 后桥右油管 Brake pipe Y 1

18 29220010271 直接头 Nipple Y 2

19 4190000141 接头EW12LOMDA3C Nipple Y 8

20 4120001901 接头GE12LM18*1.5EDOMDA3C Nipple Y 4

21 4120005447 胶管F381CACF121208-3690 Hose assembly Y 1

22 4120005448 胶管F381CACF121208-1960 Hose assembly Y 1

23 4041000766 直接头LGB120-01818 Nipple Y 1

24 4041000768 O形圈LGB168-11524 O-ring Y 2

25 4120005458 胶管F381CACF121208-1310 Hose assembly Y 1

26 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 8

27 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 8

28 29220019401 护罩底板 Plate Y 1

29 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 6

30 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 12

31 29220019381 护罩顶板总成 Plate Y 1

32 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 6

33 29220019351 蓄能器支架总成 Bracket Y 1

34 26240004841 橡胶套 Rubber sleeve Y 2

35 29030000041 管夹 Clamp Y 1

36 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

37 4120004340 制动尾灯压力开关 Switch Y 1

38 29220013061 过渡接头M12-1/8NPT Nipple Y 1

39 4041001743 O形圈LGB168-30924 O-ring Y 1

40 4120004713 直通接头1CM-22-16WD Nipple Y 1

41 4120005514 胶管F481CACF151508-1540 Hose assembly Y 1

42 4041000143 直接头LGB120-02222 Nipple Y 1

43 4041000771 O形圈LGB168-11924 O-ring Y 1

44 4190000139 接头EW15LOMDA3C Nipple Y 2

45 4041000087 直接头LGB120-01212 Nipple Y 1

46 4041000784 O形圈LGB168-10924 O-ring Y 2

47 4041001056 螺塞LGB135-01219 Plug Y 1

48 29220015801 后桥左油管 Brake pipe Y 1

49 29120007671 管夹 Clamp Y 2

50 26010000101 进气管支撑管夹 Clamp Y 3

51 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 5

52 29010035891 自扎帆布套 Tarpaulin cover Y 5

53 29220010311 缓冲套 Rubber sleeve Y 2

54 4120004505 蓄能器NXQ-A-4/31.5-L-Y Accumulator Y 2

55 28180003171 橡胶垫 Rubber mat Y 2

56 29220010301 U形螺栓 U-bolt Y 2

57 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 4

58 4120004417 压力油过滤器PLF-H110*10 Hydraulic fluid filter Y 1

59 4030000894 O形圈GB3452.1-43.7*2.65G O-ring Y 2

60 29220012581 变径接头 Nipple Y 2

61 4014000153 螺钉GB70.1-M6*30EpZn-10.9 Screw Y 4

62 29190017882 出油法兰 Flange N 1

63 4030000280 O形圈GB3452.1-19.0*2.65G O-ring Y 1

64 29220015251 前桥左油管 Brake pipe Y 1

65 4120006451 胶管F481CACF101006-3320 Hose assembly Y 1

66 4120005453 胶管F481CACF101006-2875 Hose assembly Y 1

67 4120005450 胶管F381CACF121206-3290 Hose assembly Y 2

68 4041000090 直接头LGB155-01212 Nipple Y 1

69 4030000285 O形圈GB3452.1-12.5*2.65G O-ring Y 1

70 4120005457 胶管F481CACF060604-3200 Hose assembly Y 1

71 29370025901 8T制动电气系统 Brake electric system N 1

72 4041000508 螺塞LGB135-01824 Plug Y 1

73 4130003075 动力切断开关CV4B2TYJB-DLQD Rocker switch Y 1

74 4120004417001 压力油过滤器滤芯LH0110D010BN/HC Filter insert Y 1
