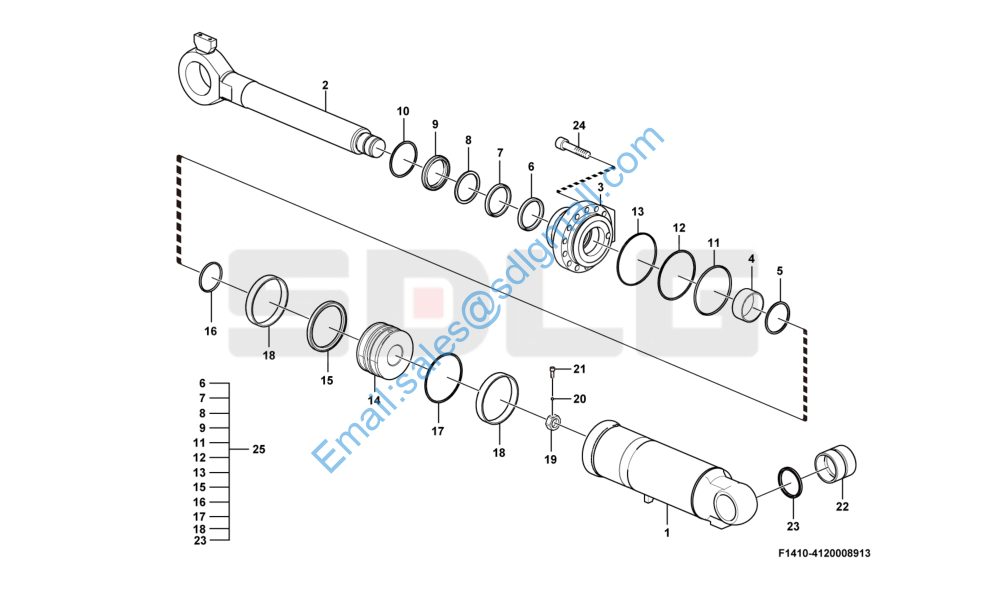

L989F F1410-4120008913 转斗油缸HSGF-200110564-1138A(3713CH) Tilt cylinder

1 4120008913001 缸筒总成 24A143440 Tilt cylinder N 1
2 4120008913002 活塞杆总成 24A116730 Piston rod Y 1
3 4120008913003 缸盖 24A171940 Cover Y 1
4 4120005997003 衬套 24S2B0601 Bushing Y 1
5 4120006560008 钢丝挡圈-孔用24C090260 Retaining ring Y 1
6 4120005997004 密封件-缓冲 24H011004 Sealing ring N 1
7 4120008912004 密封件-活塞杆24F111002 Sealing ring N 1
8 4120006969003 挡圈-U形圈24E01101C Retaining ring Y 1
9 4120005997007 密封件-防尘 24D211002 Sealing ring N 1
10 4120006560009 钢丝挡圈-孔用24C090280 Retaining ring Y 1
11 4120006001010 O形圈24K11900A O-ring N 1
12 4120008912009 挡圈-O形圈24M12000C O-ring N 1
13 4120006996003 O形圈 24K319511 O-ring N 1
14 4120008912005 活塞24A181110 Piston Y 1
15 4120008912006 密封件-活塞24P320003 Sealing ring N 1
16 4120005997012 O形圈 24K11100A O-ring Y 1
17 4120007383003 挡圈-O形圈24M11151C O-ring Y 1
18 4120008912007 支承环24G220001 Sealing ring N 2
19 4120006560011 活塞背母24C103090 Nut Y 1
20 4120006560006 钢球24U006501 Ball N 1
21 4120006560007 螺钉-内六角凹端紧定24T910161 Screw Y 1
22 4120005997015 轴套 24C116190 Bushing Y 2
23 4120005997016 销边防尘 24R310010 Sealing ring Y 4
24 4120007383004 螺钉-内六角圆柱头24TN22805 Screw Y 14
25 4120008913004 密封件包24A104950S Sealing kit Y 1
