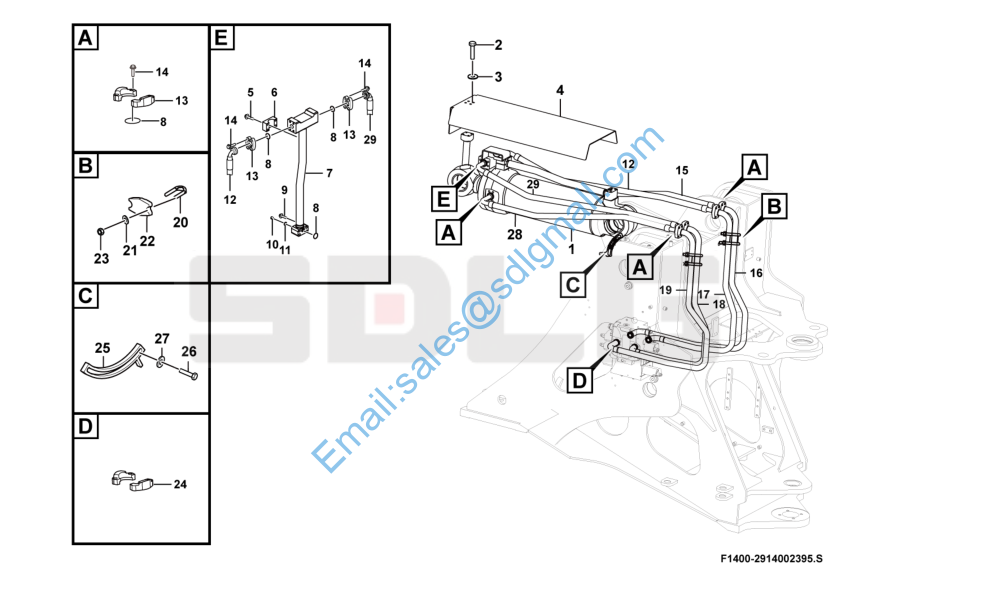

L989F F1400-2914002395 Bucket cylinder

1 4120008913 转斗油缸HSGF-200*110*564-1138A Tilt cylinder Y 1

2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4

3 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 4

4 29140024231 放平护板 Protecting plate Y 1

5 4011001298 螺栓GB16674.1-M10*55flZnyc-8.8-480 Screw Y 4

6 29140024251 压板 Plate Y 1

7 29140024261 转斗缸大腔钢管 Pipe N 1

8 4120002056 O形圈32.92*3.532-219N552-90 O-ring Y 9

9 4011001538 螺栓GB16674.1-M12*70flZnyc-8.8-480 Screw N 4

10 4041000774 螺塞LGB135-01422 Plug Y 1

11 4041000767 O形圈LGB168-11124 O-ring Y 1

12 29140024101 转斗缸右大腔胶管 Hose assembly N 1

13 4041002907 分体法兰LGB117-310501 Flange half Y 8

14 4011001604 螺栓GB16674.1-M12*45flZnyc-12.9-480 Screw Y 32

15 29140024091 转斗缸右小腔胶管 Hose assembly Y 1

16 29140024111 右转斗联小腔钢管 Pipe Y 1

17 29140024131 右转斗联大腔钢管 Pipe Y 1

18 29140024151 左转斗联大腔钢管 Pipe Y 1

19 29140024171 左转斗联小腔钢管 Pipe Y 1

20 29130025161 U形螺栓 U-bolt Y 8

21 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 16

22 29130025171 底板 Plate Y 8

23 4013000007 螺母GB6170-M10EpZn-8 Nut Y 16

24 4190000041 法兰总成M2M2HK-12 Flange Y 4

25 29140016451 动臂指示板 Indicator plate Y 1

26 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2

27 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

28 29140024191 转斗缸左小腔胶管 Hose assembly Y 1

29 29140024201 转斗缸左大腔胶管 Hose assembly Y 1
