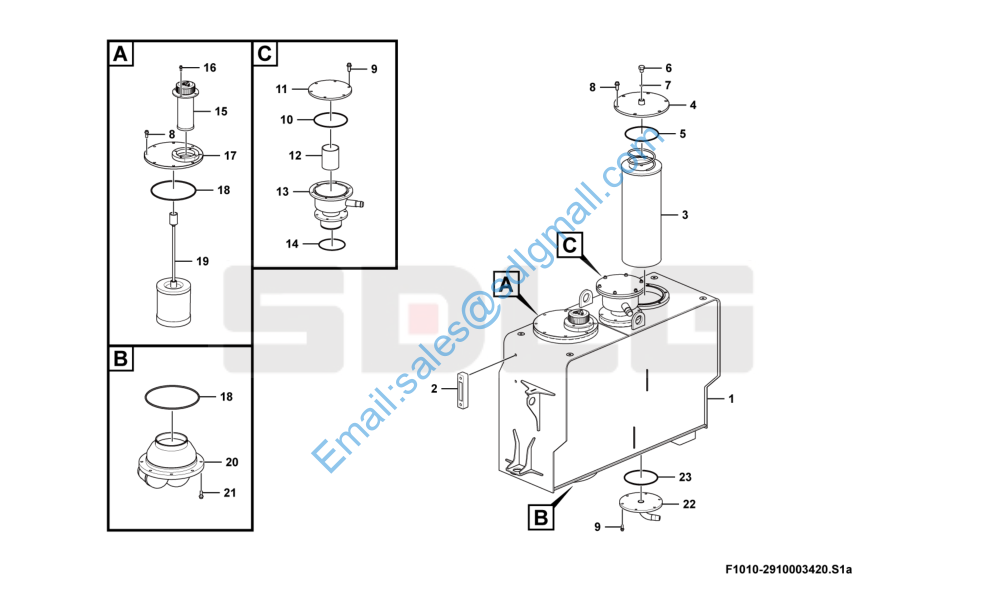

L989F F1010-2910003420 Hydraulic fluid tank

1 29100033711 液压油箱体 Hydraulic fluid tank N 1

2 4120003116 液位计YWZ-127-LG Water level gauge Y 1

3 4120004460 回油过滤器TL427A/10 Oil filter Y 1

4 29100016831 回油滤芯定位盖 Cover Y 1

5 4030000673 O形圈GB3452.1-195*5.30G O-ring Y 1

6 4041000774 螺塞LGB135-01422 Plug Y 1

7 4041000767 O形圈LGB168-11124 O-ring Y 1

8 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 14

9 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 18

10 4030001398 O形圈GB3452.1-162.5*5.3G O-ring N 1

11 29100035191 呼吸器法兰盖 Flange N 1

12 4120008910 呼吸器滤芯 Breather cap Y 1

13 29100035291 呼吸器固定罩 Pipe N 1

14 4030001106 O形圈GB3452.1-145*3.55G O-ring Y 1

15 4120000452 加油滤芯SFM-323M Filter insert Y 1

16 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4

17 29100033771 上部法兰总成 Flange N 1

18 4030000598 O形圈GB3452.1-230*5.30G O-ring Y 2

19 4120008943 吸油过滤器TL468K/100 Oil filter N 1

20 29100034211 吸油法兰 Flange N 1

21 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 8

22 29100034251 放油法兰盖总成 Flange N 1

23 4030001106 O形圈GB3452.1-145*3.55G O-ring Y 1
