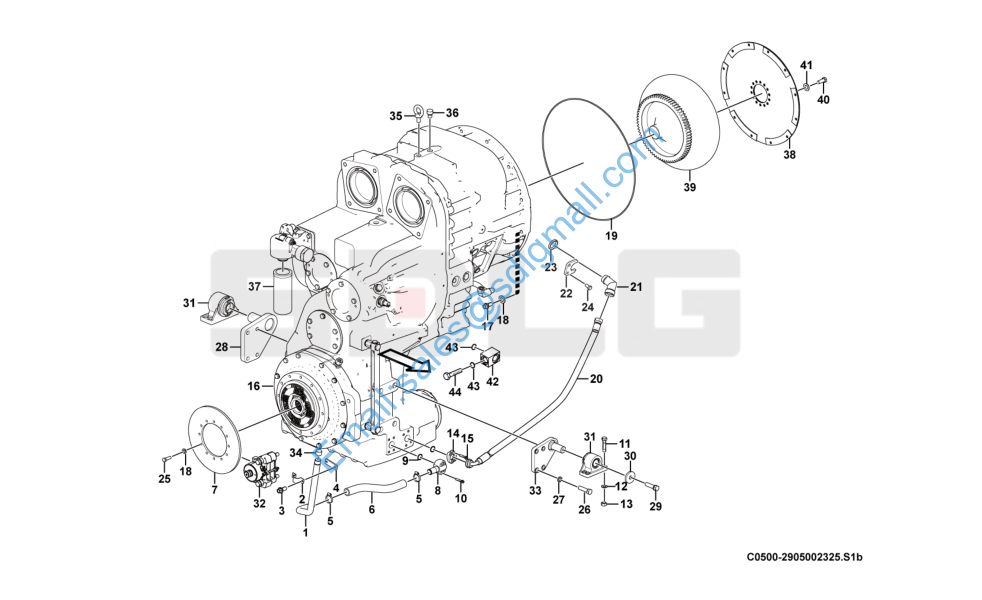

L989F C0500-2905002325 Gearbox

1 29050017711 加油管 Oil pipe Y 1

2 29050017741 管夹Ф34 Clip Y 1

3 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 2

4 29050017751 垫板 Plate Y 1

5 4017000009 喉箍JB8870-d50 Clamp Y 2

6 4120000054 胶管JB8406-B32*420 Hose assembly Y 1

7 29050018761 制动盘 Brake disc Y 1

8 29050018181 法兰接头 Nipple Y 1

9 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

10 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 4

11 4011000951 螺栓GB5785-M18*1.5*75EpZn-10.9 Screw Y 8

12 4015000182 垫圈GB97.1-18EpZn-300HV Washer Y 16

13 4013000252 螺母GB889.2-M18*1.5EpZn-10 Nut Y 8

14 4041000026 分体法兰LGB117-310491 Flange half Y 1

15 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

16 4110001061 变速箱22582HT220 Transmission Y 1

17 4011000092 螺栓GB5783-M12*50EpZn-8.8 Bolt Y 12

18 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 24

19 29050017781 0型圈 O-ring Y 1

20 29050020641 回油管 Return pipe N 1

21 29050020651 回油接头 Splice N 1

22 29050020681 锁紧板 Lock plate Y 1

23 29050020691 密封环 Sealing ring Y 1

24 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2

25 4011000090 螺栓GB5783-M12*35EpZn-8.8 Bolt Y 12

26 4011000950 螺栓GB5783-M20*75EpZn-10.9 Screw Y 8

27 4015000030 垫圈GB93-20-65Mn Spring washer Y 8

28 29050017831 变速箱右支架 Bracket Y 1

29 4011000835 螺栓GB5783-M20*40EpZn-10.9 Screw Y 2

30 29050017851 垫圈 Washer Y 2

31 4110000943 减震器总成 Absorber Y 2

32 4190001657 驻车制动器SA7000 Disc brake Y 1

33 29050017801 变速箱左支架 Bracket Y 1

34 29050017721 加油盖 Cover Y 1

35 4014000030 吊环螺钉GB825-M20EpZn-20 Screw Y 2

36 4110001062 空气滤清器C-NPTF1/2 Air cleaner Y 1

37 4110001179 滤清器P165659 Oil filter Y 1

38 4110001152 弹性板HT200 Leaf spring Y 1

39 4110001145 变矩器W340-L120G Torque converter Y 1

40 4011000993 螺栓GB5783-M10*25EpZn-10.9 Bolt Y 14

41 4015000025 垫圈GB93-10-65Mn Spring washer Y 14

42 29050033521 三通块 Block Y 2

43 4030000020 O形圈GB3452.1-16.0*2.65G O-ring Y 4

44 29050032561 空心螺栓 Hollow screw Y 2
