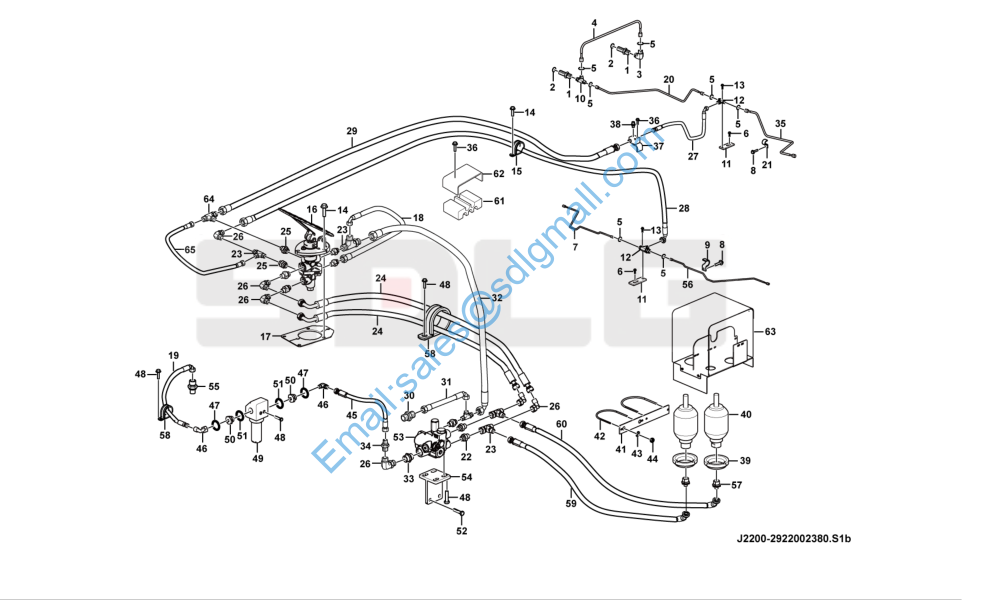

L978F 行车制动总成 Travel brake J2200-2922002380

1 4041000035 直接头LGB155-01416 Connecter Y 8

2 4030000020 O形圈GB3452.1-16.0*2.65G O-ring Y 8

3 4190000176 过渡接头EW10LOMDA3C Nipple Y 4

4 29220013451 桥油管 Tube Y 4

5 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 16

6 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 2

7 29220011301 前桥右油管 Brake pipe Y 1

8 4011001313 螺栓GB16674.1-M8*12flZnyc-8.8-480 Screw Y 8

9 29220011401 压板 Plate Y 2

10 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 4

11 29220011131 固定板 Anchor plate Y 2

12 29220007831 三通接头 Three-way nipple Y 2

13 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 2

14 4011001295 螺栓GB16674.1-M8*25flZnyc-8.8-480 Screw Y 6

15 4041002411 管夹LGB169-A15*10 Clamp Y 3

16 4120005158 串联踏板阀06-466-435 Control valve Y 1

17 29220013891 过渡板 Plate Y 1

18 4120003004 胶管F481CACF121206-450 Hose assembly Y 1

19 4041000842 软管LGB128-005144 Hose Y 1

20 29220011341 后桥右油管 Brake pipe Y 1

21 29220011411 压板 Plate Y 4

22 4190000149 接头GE12L3/4UNFOMDA3C Nipple Y 3

23 4190000143 三通接头EL12LOMDA3C Three-way nipple Y 5

24 4190000348 胶管F481CACF121206-1600 Hose assembly Y 2

25 4190000147 接头GE12L9/16UNFOMDA3C Nipple Y 6

26 4190000141 接头EW12LOMDA3C Nipple Y 8

27 4041000963 软管LGB128-404080 Hose Y 1

28 4120003088 胶管F481CACF121006-4500 Hose assembly Y 1

29 4120001465 胶管F481CACF101206-1650 Hose assembly Y 1

30 4120002909 接头GEO15LMOMDCF Nipple Y 1

31 4120003006 胶管F481CACF151208-1040 Hose assembly Y 1

32 4120003005 胶管F481CACF121206-1500 Hose assembly Y 1

33 4120001773 接头GE22L11/16UNOMDA3C Nipple Y 1

34 4120002702 接头RED22/12LOMDCF Nipple Y 1

35 29220011321 后桥左油管 Brake pipe Y 1

36 4011001305 螺栓GB16674.1-M8*45flZnyc-8.8-480 Screw Y 4

37 29220009221 接头块 Block Y 1

38 4120004340 制动尾灯压力开关 Switch Y 1

39 29220010311 缓冲套 Rubber sleeve Y 2

40 4120000708 蓄能器NXQ1-L2.5/20 Accumulator Y 2

41 29220011461 橡胶垫 Rubber mat Y 1

42 29220010301 U形螺栓 U-bolt Y 2

43 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 4

44 4013000384 螺母GB889.1-M8flZnyc-8-480 Nut Y 4

45 4041000844 软管LGB128-005060 Hose Y 1

46 4041001063 组合接头LGB143-01810 Nipple Y 2

47 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 2

48 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 6

49 4120004417 压力油过滤器PLF-H110*10 Hydraulic fluid filter Y 1

50 29220012581 变径接头 Nipple Y 2

51 4030000894 O形圈GB3452.1-43.7*2.65G O-ring Y 2

52 29220009261 螺栓 Bolt Y 2

53 4120002767 双路充液阀06-463-424 Check valve Y 1

54 29220010351 支架 Bracket Y 1

55 4120001361 接头GE12LREDOMDA3C Nipple Y 1

56 29220011271 前桥左油管 Brake pipe Y 1

57 29220010271 直接头 Nipple Y 2

58 4041002416 管夹LGB169-B15*12.5 Clamp Y 2

59 4120003001 胶管F481CACF121206-420 Hose assembly Y 1

60 4120003000 胶管F481CACF121206-510 Hose assembly Y 1

61 29220010331 管夹 Clamp Y 1
62 29220010341 板 Plate Y 1
63 29220023691 蓄能器固定防护模块 Bracket N 1
64 4120002171 三通接头ET12LOMDCF Three-way nipple Y 1
65 4041001837 软管LGB128-405039 Hose assembly Y 1
