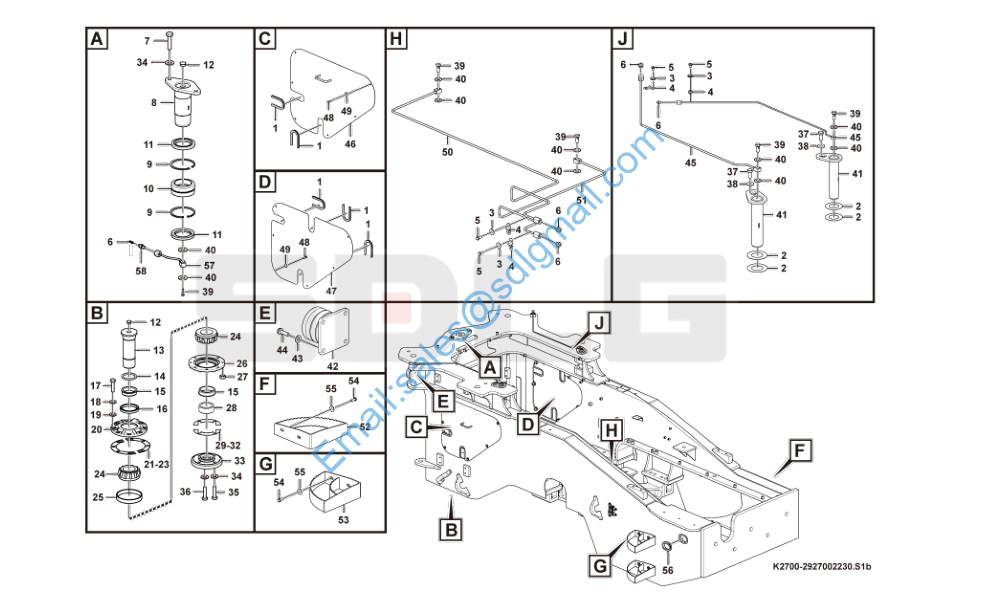

L978F 后车架附件 Rear frame system K2700-2927002230

1 4043001246 卡子胶条LGB320-U220 Sealing strip Y 5

2 4043000032 垫片LGB303-50*90*1 Shim Y 4

3 4015000035 垫圈GB93-6-65Mn Spring washer Y 8

4 29250000311 管夹 Clamp Y 4

5 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 8

6 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 6

7 4011001387 螺栓GB5783-M16*45flZnyc-10.9-480 Bolt Y 2

8 29270009381 销轴 Pin Y 1

9 4015000011 挡圈GB893.1-130-65Mn Retaining ring Y 2

10 4021000233 关节轴承GB9163-GE90ES-2RS Spherical plain bearing Y 1

11 29270009461 防尘圈 Sealing ring Y 2

12 29270009421 塑料塞 Plastic plug Y 2

13 29270009431 销 Pin Y 1

14 29270009441 隔套 Sleeve Y 1

15 29270009451 套 Sleeve Y 2

16 4030000260 旋转轴唇形密封圈GB9877.1-B100*125*12 Sealing ring Y 2

17 4011001329 螺栓GB5782-M12*150flZnyc-8.8-480 Screw Y 8

18 4015000026 垫圈GB93-12-65Mn Spring washer Y 8

19 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 8

20 29270009471 盘 Disc Y 1

21 4043002667 开口垫片LGB338-4*15*170*0.2 Shim Y 2

22 4043002666 开口垫片LGB338-4*15*170*0.1 Shim Y 2

23 4043002664 开口垫片LGB338-4*15*170*0.5 Shim Y 2

24 4021000231 滚动轴承GB297-32316 Roller bearing Y 2

25 29270009911 隔套 Sleeve Y 1

26 29270009511 盘 Disc Y 1

27 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 8

28 29270009521 套 Sleeve Y 1

29 4043002668 开口垫片LGB338-2*19*105*0.1 Shim Y 2

30 4043002669 开口垫片LGB338-2*19*105*0.15 Shim Y 2

31 4043002670 开口垫片LGB338-2*19*105*0.5 Shim Y 2

32 4043002671 开口垫片LGB338-2*19*105*1.2 Shim Y 2

33 29270009571 盘 Disc Y 1

34 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 10

35 4011001328 螺栓GB5783-M16*50flZnyc-8.8-480 Screw Y 4

36 4011001267 螺栓GB5782-M16*90flZnyc-8.8-480 Screw Y 4

37 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

38 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 2

39 29250000291 通油螺栓 Bolt Y 5

40 29250000301 垫片 Shim Y 11

41 29270009581 转向销轴 Pin Y 2

42 4190001829 缓冲器 Absorber Y 2

43 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 8

44 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8

45 29270009621 转向润滑油管 Lube oil hose Y 2

46 29270011311 左挡板 Cover plate Y 1

47 29270011321 右挡板 Cover plate Y 1

48 4011001397 螺栓GB5783-M8*25flZnyc-8.8-480 Screw Y 12

49 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 12

50 29270009611 润滑油管 Lube oil hose Y 1

51 29270009601 润滑油管 Lube oil hose Y 1

52 29270011441 圆形踏脚 Foot step Y 2

53 29270011431 圆形踏脚 Foot step Y 2

54 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

55 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

56 29270009101 走线胶套 Rubber sleeve Y 1

57 29270014461 油管 Lubricating pipe Y 1

58 29250014121 接头 Nipple Y 1
