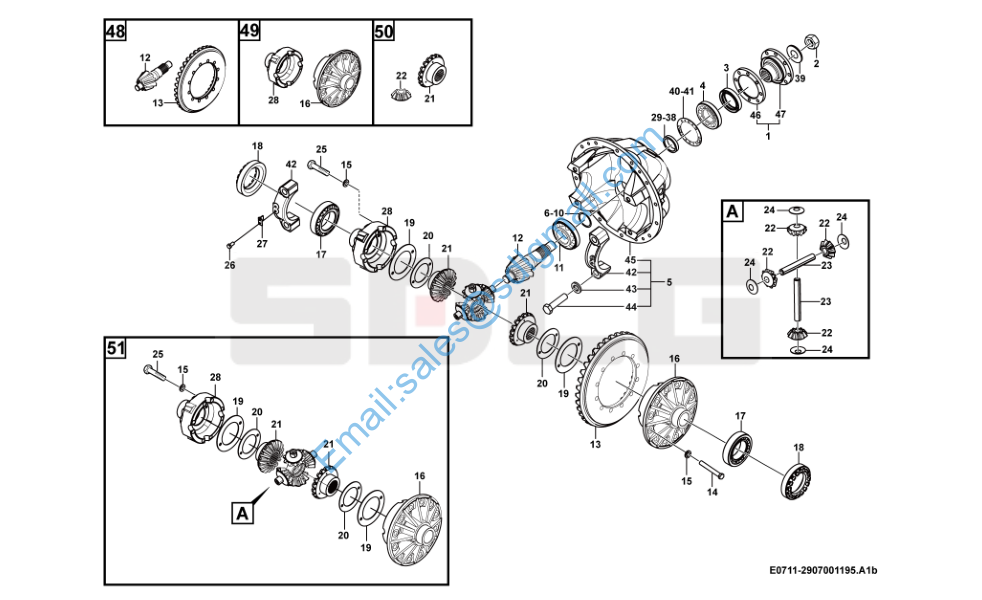

LG968N 前主传动总成 Front final drive assembly E0711-2907001195

1 29070011411 输入法兰 Flange Y 1

2 29070011651 螺母 Hexagon nut Y 1

3 4030000592 密封圈 GB9877.1-FB85*140*12F Sealing ring Y 1

4 4021000139 滚动轴承GB297-31312 Roller bearing Y 1

5 29090008391 托架总成 Center housing Y 1

6 29070011441 调整垫片 Shim Y 1

7 29070011451 调整垫片 Shim Y 1

8 29070011461 调整垫片 Shim Y 1

9 29070011471 调整垫片 Shim Y 1

10 29070011481 调整垫片 Shim Y 1

11 4021000140 滚动轴承GB297-31315 Roller bearing Y 1

12 29070011851 主动螺旋伞齿轮 Crown wheel N 1

13 29070011861 从动螺旋伞齿轮 Crown wheel N 1

14 4011000731 螺栓GB5786-M16*1.5*50-10.9 Screw Y 20

15 29070009511 垫圈 Washer Y 32

16 29070011511 差速器右壳 Differential housing N 1

17 4021000141 滚动轴承GB297-33117 Roller bearing Y 2

18 29070011601 调整螺母 Nut Y 2

19 29070011521 垫片 Shim Y 2

20 29070011531 垫片 Shim Y 2

21 29070011541 半轴齿轮 Differential side gear Y 2

22 29070011551 锥齿轮 Differential pinion Y 4

23 29070011561 一字轴 Shaft Y 2

24 29070011571 锥齿轮垫片 Thrust washer Y 4

25 4011000801 螺栓GB5782-M16*95-10.9 Screw Y 12

26 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 4

27 29070011581 止推垫片 Thrust washer Y 2

28 29070011631 差速器左壳 Differential housing N 1

29 29070012041 隔套 Spacer sleeve Y 1

30 29070012051 隔套 Spacer sleeve Y 1

31 29070012061 隔套 Spacer sleeve Y 1
32 29070012071 隔套 Spacer sleeve Y 1
33 29070012081 隔套 Spacer sleeve Y 1
34 29070012091 隔套 Spacer sleeve Y 1
35 29070012101 隔套 Spacer sleeve Y 1
36 29070012111 隔套 Spacer sleeve Y 1
37 29070012121 隔套 Spacer sleeve Y 1
38 29070012131 隔套 Spacer sleeve Y 1
39 29070011671 垫圈 Washer Y 1
40 29070008901 调整垫片 Shim Y 1
41 29070008911 调整垫片 Shim Y 1
42 29070011621 轴承座 Bearing seat N 2
43 29070011121 垫圈 Washer Y 4
44 4011000217 螺栓GB5782-M20*110EpZn-10.9 Bolt Y 4
45 29090008401 托架 Center housing N 1
46 29070011641 防尘罩 Dust cover Y 1
47 29070011591 法兰 Connection flange Y 1
48 21909002411 前主从动螺旋伞齿轮 Crown wheel N 1
49 21909002371 差速器左右壳 Housing Y 1
50 21909006461 锥齿半齿总成 Gear kit Y 1
51 29070019591 差速器总成 Differential spider Y 1
