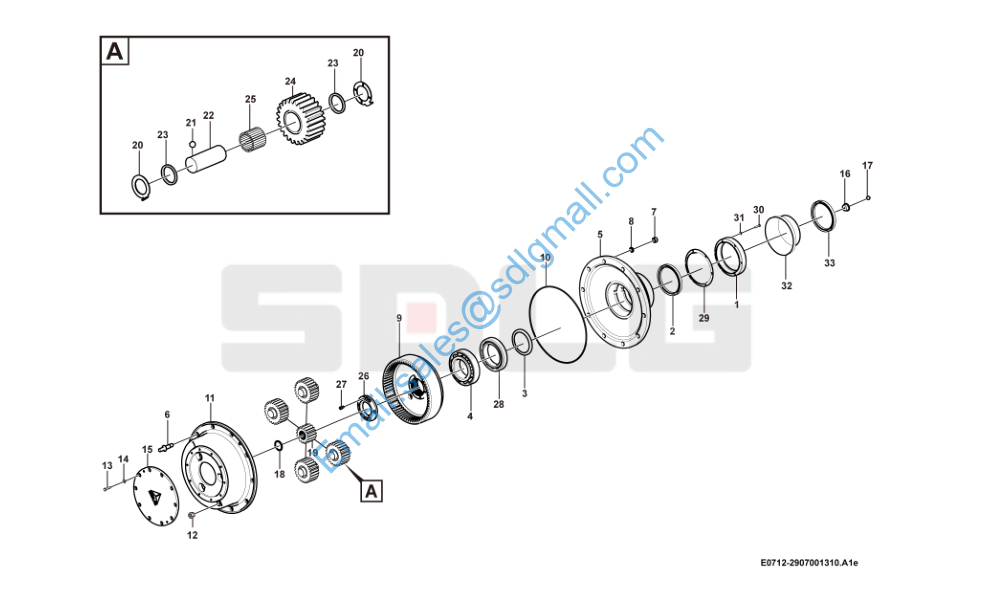

L952D 轮边减速器 Hub reduction E0712-2907001310

1 29070021541 油封端盖 Sealing cover Y 1

2 4030000047 骨架油封HG4-692-PD150*180*16 Sealing ring Y 1

3 29070001261 隔套 Spacer sleeve Y 1

4 4021000037 滚动轴承GB297-32221 Roller bearing Y 1

5 29070001241 轮毂 Hub Y 1

6 29070000621 轮辋螺栓 Stud Y 10

7 4013000203 螺母GB6171-M20*1.5EpZn-10 Nut Y 10

8 4015000030 垫圈GB93-20-65Mn Spring washer Y 10

9 29070013111 内齿圈 Gear ring Y 1

10 4041000020 O形圈LGB308-440*3.5 O-ring Y 3

11 29090008521 行星轮架 Planet carrier Y 1

12 29070012481 磁性螺塞 Plug Y 1

13 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 10

14 4015000025 垫圈GB93-10-65Mn Spring washer Y 10

15 29070007621 盖 Cover Y 1

16 29070009161 定位块 Block Y 1

17 4090000006 钢球GB308-17.462-GCr15 Ball Y 1

18 4015000022 挡圈GB894.1-52-65Mn Retaining ring Y 1

19 29070012671 太阳轮 Sun gear Y 1

20 29070012681 行星轮垫片 Shim Y 8

21 4090000008 钢球GB308-9.525-GCr15 Ball Y 4

22 29070012691 行星齿轮轴 Planet gear shaft Y 4

23 29070012701 挡环 Retaining ring Y 8

24 29070012711 行星齿轮 Planet gear Y 4

25 4090000158 滚针GB309-P6*54-GCr15 Needle roller Y 108

26 29070015581 圆螺母 Round nut Y 1

27 4014000016 螺钉GB70-M10*1*20EpZn-8.8 Screw Y 2

28 4021000033 滚动轴承GB297-32024 Roller bearing Y 1

29 29070001271 垫片 Shim Y 1

30 4011000702 螺栓GB5783-M8*50EpZn-8.8 Bolt Y 6

31 4015000036 垫圈GB93-8-65Mn Spring washer Y 6
32 29070018192 防尘罩 Dust cap Y 1
33 4110002708 密封圈FB15018012 Sealing ring Y 1
