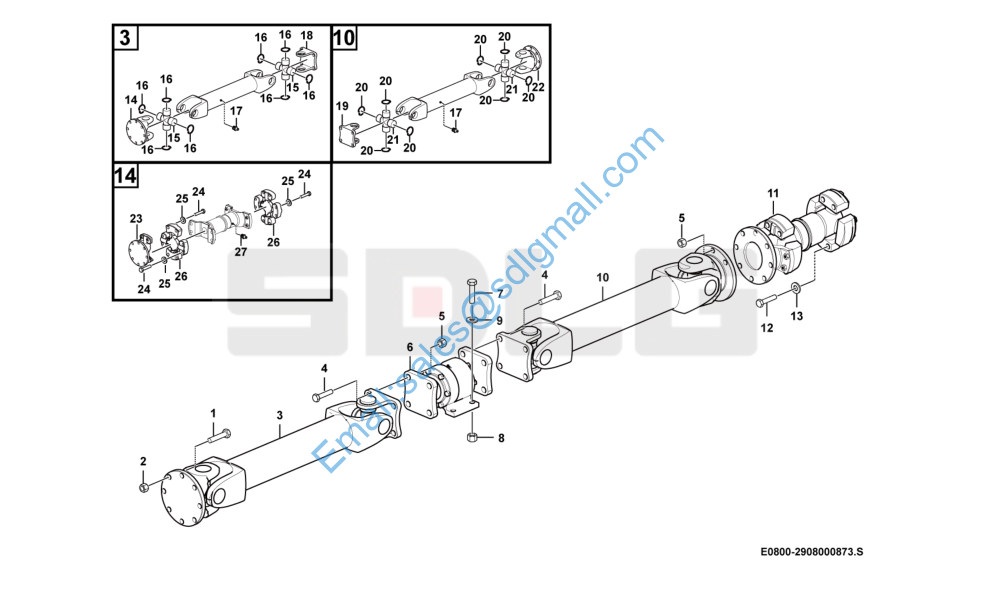

L948F 传动轴总成 Propeller shaft system E0800-2908000873

1 4011001307 螺栓GB5786-M12*1.25*40flZnyc-10.9- Screw Y 8

2 4013000375 螺母GB889.2-M12*1.25flZnyc-10-480 Nut Y 8

3 4110002245 传动轴-CDZP333 Propeller shaft Y 1

4 4011001418 螺栓GB5786-M14*1.5*45flZnyc-10.9-480 Bolt Y 8

5 4013000399 螺母GB889.2-M14*1.5flZnyc-10-480 Nut Y 16

6 2050900054 中间支承 Propeller shaft support Y 1

7 4011001282 螺栓GB5785-M14*1.5*55flZnyc-8.8-480 Bolt Y 4

8 4013000376 螺母GB889.2-M14*1.5flZnyc-8-480 Nut Y 4

9 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4

10 4110002331 传动轴CDZP-986.5 Drive shaft Y 1

11 4110002246 传动轴-276.5 Propeller shaft Y 1

12 4011001293 螺栓GB5785-M12*1.25*50flZnyc-8.8-480 Screw Y 4

13 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4

14 4110002245001 突缘叉YZ18J-2201010-01 Link yoke Y 1

15 4110000490001 万向节十字轴总成EQ140-39118 Spider Y 2

16 4110002170006 卡簧2201C-026 Retaining ring Y 8

17 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2

18 4110002170001 突缘叉2201D-023D Flange yoke Y 1

19 4110002331001 突缘叉2201C-023-A Link yoke Y 1

20 4110001951002 卡簧504100C-01 Retaining ring Y 8

21 4110001531001 十字轴万向节总成W50-45126-A Spider Y 2

22 4110002331002 突缘叉4110002331-01 Link yoke N 1

23 4110002246001 突缘叉4110002246-01 Link yoke Y 1

24 4110001950008 螺栓 1/2″20UNF Screw Y 12

25 4120001054234 垫圈GB93-87 12 Washer Y 12

26 2908000753001 万向节十字轴总成G5-7126 Spider Y 2

27 4120000601101 油杯M10X1(直通式)JB/T7940.1-1995 Cup N 1
