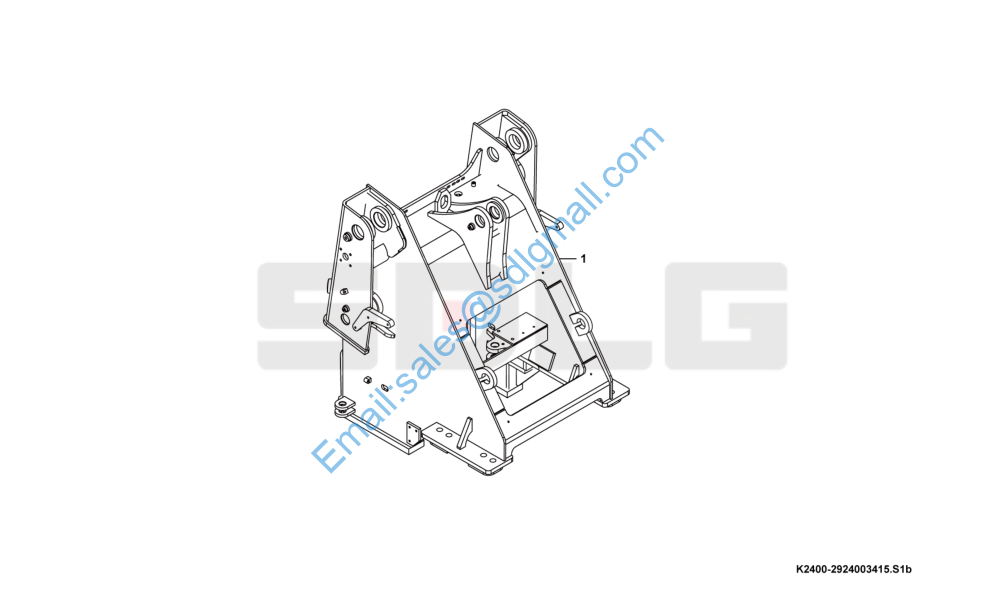

L946 Front frame K2400-2924003415

1 29240034151 前车架 Front frame Y 1

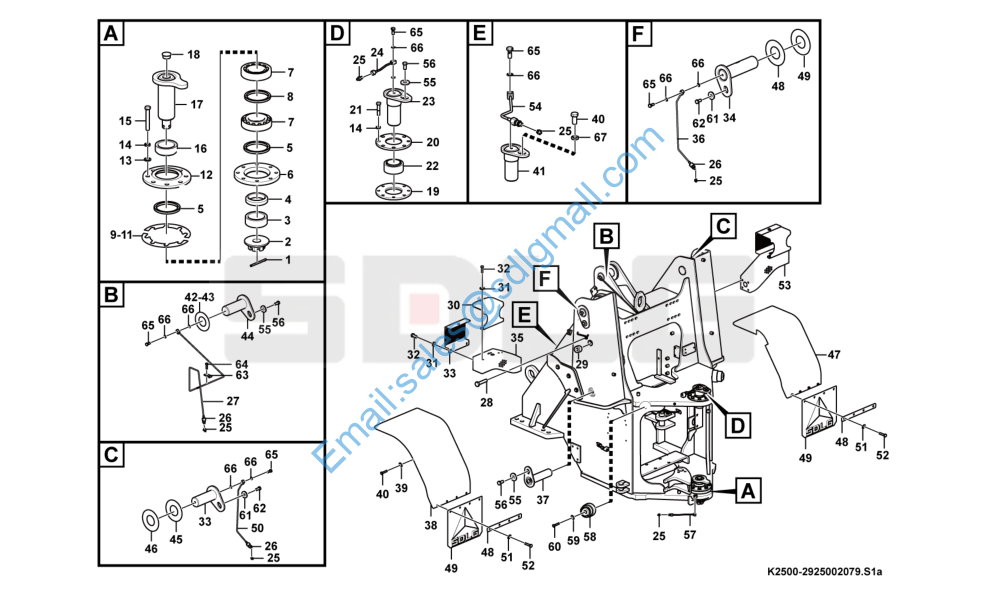

前车架附件 Accessories K2500-2925002079

1 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1

2 29250008711 开槽螺母 Nut Y 1

3 29250011291 套 Sleeve Y 1

4 29250011281 套 Sleeve Y 1

5 4043000055 防尘圈LGB307-80 Sealing ring Y 2

6 29250011261 盘 Flange Y 1

7 4021000134 滚动轴承GB297-32212 Roller bearing Y 2

8 29250011761 间隔套 Sleeve Y 1

9 4043002527 开口垫片LGB338-4*13*115*0.5 Shim Y 2

10 4043002525 开口垫片LGB338-4*13*115*0.1 Shim Y 2

11 4043002526 开口垫片LGB338-4*13*115*0.2 Shim Y 2

12 29250011301 盘 Flange Y 1

13 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 8

14 4015000026 垫圈GB93-12-65Mn Spring washer Y 16

15 4011001122 螺栓GB5782-M12*85EpZn-8.8 Screw Y 8

16 29250011271 套 Sleeve Y 1

17 29250015711 下铰接销 Pin Y 1

18 29270009421 塑料塞 Plastic plug Y 1

19 29250004021 盘 Flange Y 1

20 29250004011 盘 Flange Y 1

21 4011000186 螺栓GB5782-M12*55EpZn-8.8 Bolt Y 8

22 4021000042 关节轴承GB9163-GE60ES-2RS Spherical plain bearing Y 1

23 29250004041 上铰接销 Pin Y 1

24 29250014591 上铰接销润滑油管 Lubricating pipe Y 1

25 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9

26 29250014121 接头 Nipple Y 7

27 29250020851 转斗润滑油管 Lubricating pipe Y 1

28 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 8

29 4043001362 护套LGB313-20*32 Rubber sleeve Y 5

30 29250012661 照灯护板 Protecting plate Y 2

31 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 10

32 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 10

33 29250011021 照灯网板 Protecting plate Y 2

34 4043000734 销轴LGB301-85*135N*250G-40Cr Weld pin Y 2

35 29250012931 左灯架 Lamp bracket Y 1

36 29250014541 动臂后端润滑油管-左 Lubricating pipe Y 1

37 4043000424 销轴LGB301-60*133*250G-40Cr Weld pin Y 2

38 29250013801 左挡泥瓦 Fender Y 1

39 29330059111 垫圈12 Washer Y 6

40 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 8

41 29250019721 转向销轴 Weld pin Y 2

42 4043000345 垫片LGB303-70*120*2 Shim Y 1

43 4043000341 垫片LGB303-70*120*1 Shim Y 1

44 4043002347 销轴LGB301-70*90NR*170-1201G Weld pin Y 1

45 4043000340 垫片LGB303-85*140*2 Shim Y 2

46 4043000339 垫片LGB303-85*140*1 Shim Y 2

47 29250013851 右挡泥瓦 Front fender Y 1

48 29250013831 衬板 Plate Y 2

49 29250013821 橡胶板 Mudflap Y 2

50 29250014551 动臂后端油管总成-右 Lubricating pipe Y 1

51 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8

52 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

53 29250012941 右灯架 Lamp bracket Y 1

54 29250014641 转向缸油管 Lubricating pipe Y 2

55 4040000050 垫圈LGB001-12flZnyc-480 Washer Y 4

56 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 4

57 29250014601 下铰接油管 Lubricating pipe Y 1

58 4190002437 减震器 Rubber damper Y 2

59 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 2

60 4011001381 螺栓GB16674.1-M10*35flZnyc-8.8-480 Screw Y 2

61 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 2
62 4011001271 螺栓GB5783-M1625flZnyc-8.8-480 Bolt Y 2 63 29250013741 压板 Plate Y 2 64 4011001313 螺栓GB16674.1-M812flZnyc-8.8-480 Screw Y 1
65 29250000291 通油螺栓 Bolt Y 7
66 29250000301 垫片 Shim Y 21
67 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 2
