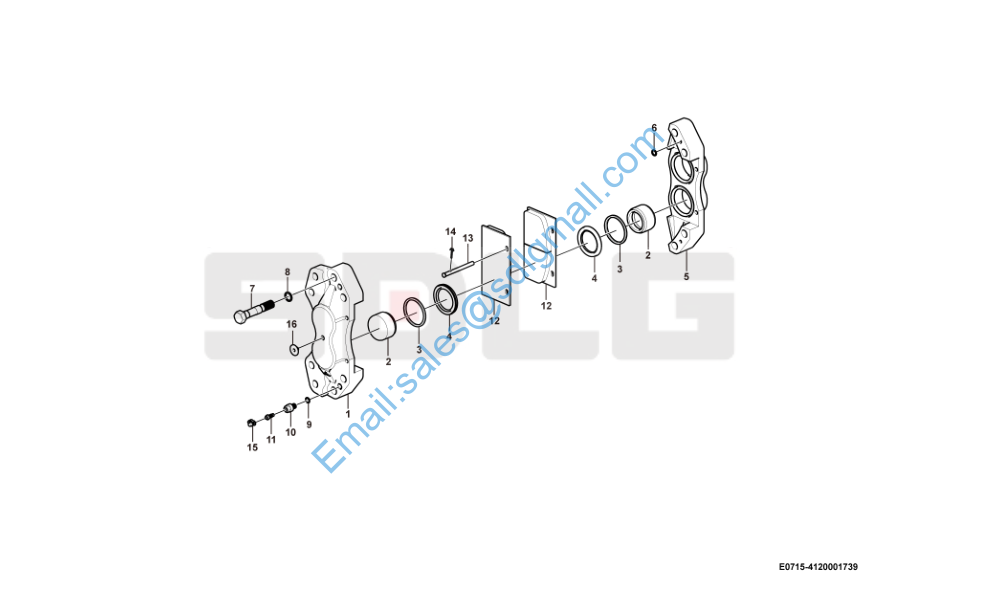

L955FC 制动钳(360301) Break caliper E0715-4120001739

1 4120001739080 内钳体FY10754M.00001 Pliers N 1

2 4120001739081 活塞FY10754B.00004 Piston Y 4

3 4120001739082 矩形密封圈FY10754B.00007 Gasket Y 4

4 4120001739096 防尘罩FY50.05 Sealing ring Y 4

5 4120001739084 外钳体FY10754M.00002 Brake caliper N 1

6 4120001739085 O型圈19.5X3.5 O-ring Y 2

7 4120001739086 螺栓M22X110 Screw Y 4

8 4015000087 垫圈GB93-22-65Mn Spring washer Y 4

9 4120001739087 组合垫圈14 Washer Y 2

10 4120001739088 放气嘴座FY10754M.00003 Support N 2

11 4120001740 放气嘴 Nipple Y 2

12 4120001739089 制动片FY10754B.01000 Brake plate N 2

13 4120001739090 销子FY10754M.00006 Pin Y 2

14 4120001739091 开口销GB91-3.2*25EpZn-Q235A Split pin Y 2

15 4120001739092 放气座堵塞FY10754M.00008 Plug N 2

16 4120001739093 堵塞FY10754M.00007 Plug N 1
