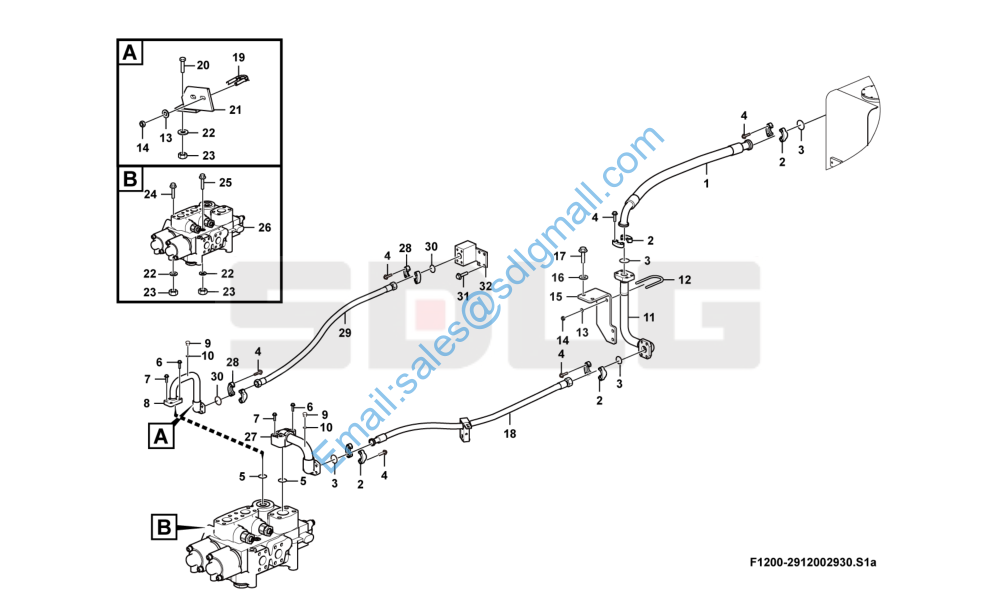

L936 液压操纵主管路模块 Hydraulic control assembly F1200-2912002930

1 4041000953 软管LGB162-012108 Hose Y 1

2 4041000056 分体法兰LGB117-312550 Flange half Y 4

3 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 4

4 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 24

5 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 2

6 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 2

7 4011000793 螺栓GB16674-M12*65EpZn-8.8 Screw Y 2

8 29120029451 多路阀进油钢管 Pipe Y 1

9 4041000774 螺塞LGB135-01422 Plug Y 2

10 4041000767 O形圈LGB168-11124 O-ring Y 2

11 29120019351 回油钢管 Pipe Y 1

12 4011000556 U形螺栓JB/ZQ4321-33Zn-Q235A.F U-bolt Y 2

13 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 6

14 4013000007 螺母GB6170-M10EpZn-8 Nut Y 6

15 29120019271 固定板 Anchor plate Y 1

16 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 2

17 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2

18 4041001301 软管LGB163-012106 Hose assembly Y 1

19 4041000958 U形螺栓LGB159-03040 U-bolt Y 1

20 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 2

21 29120011391 固定支架 Bracket Y 1

22 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 5

23 4013000011 螺母GB6170-M12EpZn-8 Nut Y 5

24 4011000057 螺栓GB5782-M12*165EpZn-8.8 Bolt Y 2

25 4011000056 螺栓GB5782-M12*145EpZn-8.8 Bolt Y 1

26 4120001133 多路阀D32-16 Control valve Y 1

27 29120016541 多路阀回油钢管 Pipe Y 1

28 4041000043 分体法兰LGB117-310490 Flange half Y 2

29 4041000731 软管LGB107-010098 Hose assembly Y 1

30 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

31 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 4
32 29120004041 二通块 Valve block Y 1
