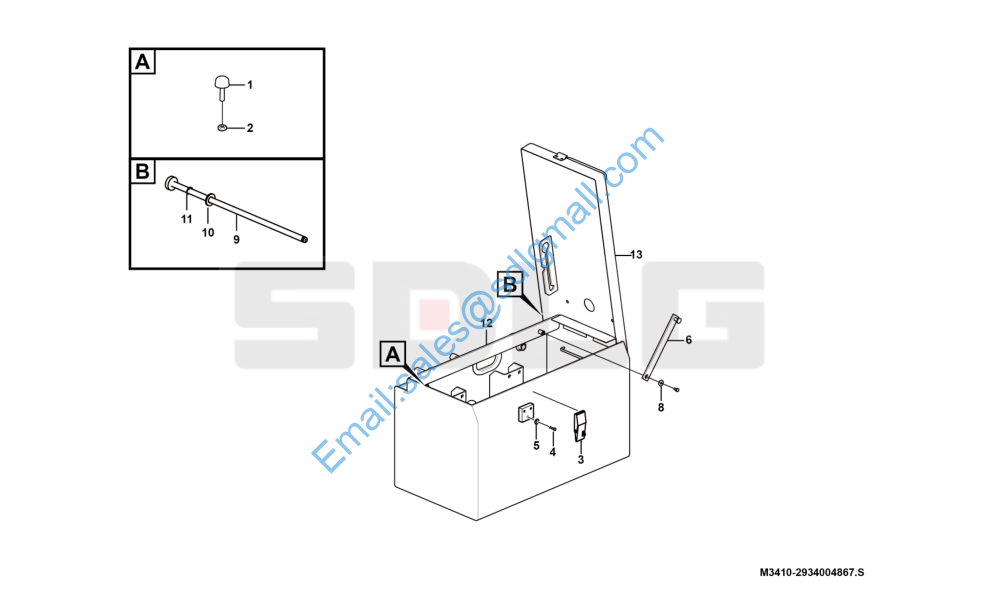

L936 左电瓶箱总成 Battery box assembiy M3410-2934004867

1 26330006531 缓冲器 Rubber block Y 2

2 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

3 4190000025 扣锁NBxs1013 Lock Y 1

4 4014000023 螺钉GB818-M5*10EpZn-4.8 Screw Y 5

5 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5

6 29340009091 拉杆 Pull rod Y 1

7 4011000152 螺栓GB16674-M6*10EpZn-8.8 Bolt Y 1

8 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 1

9 29340048771 销轴 Pin Y 1

10 4015000355 挡圈GB896-6-65Mn Retaining ring Y 1

11 4015000322 垫圈GB97.1-10-300HV Washer N 3

12 29340048641 左底框 Frame N 1

13 29340048661 左箱盖 Cover N 1
