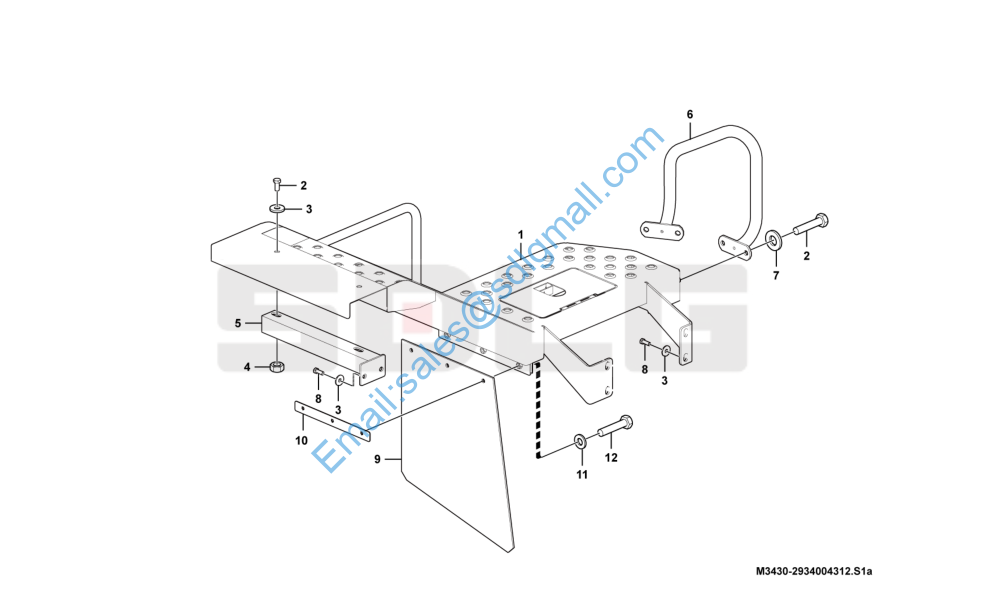

L936 左台架总成 Platform assembiy M3430-2934004312

1 29340043131 左台架 Plateform Y 1

2 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 6

3 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 10

4 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 2

5 29340041721 左支撑架 Bracket Y 1

6 29340041451 左前扶手 Hand rail Y 1

7 29330023151 垫圈12 Washer Y 4

8 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 6

9 29340026911 橡胶板 Mudflap Y 1

10 29340026891 压板 Plate Y 1

11 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 3

12 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 3
