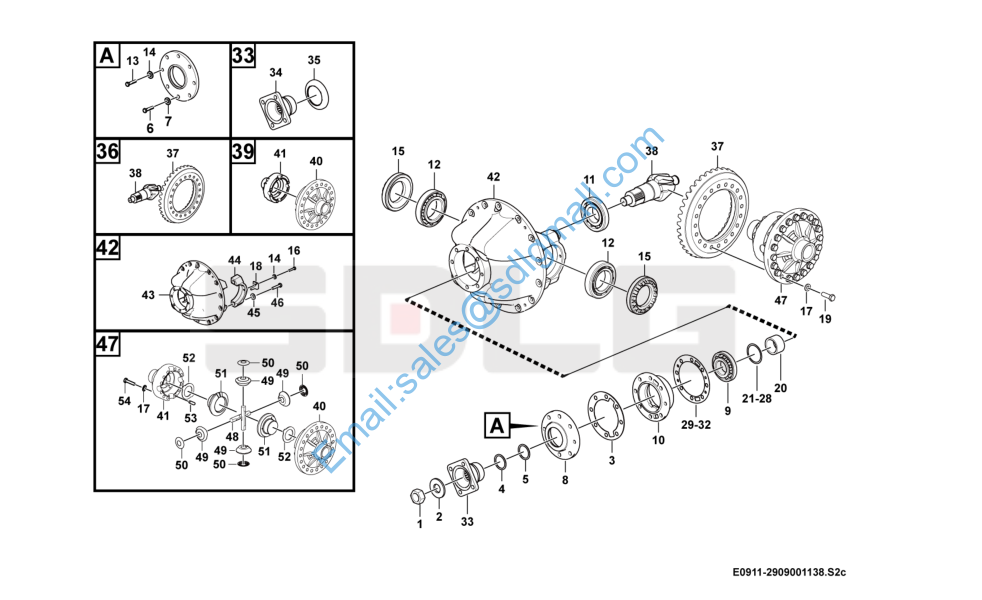

L936 后主传动总成 Rear final drive assembly E0911-2909001138

1 4013000157 螺母GB889.2-M24*2EpZn-8 Lock nut Y 1

2 29070010522 垫圈 Washer Y 1

3 29090011561 密封垫片 Gasket Y 1

4 4030001094 密封圈GB13871.1-FB06008508-DWS Sealing ring Y 1

5 4030000854 密封圈GB13871.1-FB06008508-F Sealing ring Y 1

6 4011001317 螺栓GB5782-M12*50flZnyc-8.8-480 Screw Y 7

7 29070015981 垫圈 Washer Y 7

8 29090011501 密封盖 Sealing cover Y 1

9 4021000132 滚动轴承GB297-31309 Roller bearing Y 1

10 29090011511 轴承套 Bearing bushing Y 1

11 4021000029 滚动轴承GB297-31311 Roller bearing Y 1

12 4021000134 滚动轴承GB297-32212 Roller bearing Y 2

13 4011001479 螺栓GB5783-M10*50flZnyc-8.8-480 Screw Y 1

14 29050015481 垫圈10 Washer Y 3

15 29070010321 调整螺母 Nut Y 2

16 4011000597 螺栓GB5786-M10*1*20EpZn-8.8 Bolt Y 2

17 29090007961 垫圈 Washer Y 22

18 3050900024 锁紧片 Lock washer Y 2

19 4011000345 螺栓GB5786-M14*1.5*30EpZn-10.9 Screw Y 14

20 29090011551 隔套 Sleeve Y 1

21 29090011571 调整垫片 Spacer sleeve Y 1

22 29090011581 调整垫片 Spacer sleeve Y 1

23 29090011591 调整垫片 Spacer sleeve Y 1

24 29090011601 调整垫片 Spacer sleeve Y 1

25 29090011611 调整垫片 Spacer sleeve Y 1

26 29090011621 调整垫片 Spacer sleeve Y 1

27 29090011631 调整垫片 Spacer sleeve Y 1

28 29090011641 调整垫片 Spacer sleeve Y 1

29 29090012061 调整垫片 Shim Y 1

30 29090012071 调整垫片 Shim Y 3

31 29090012081 调整垫片 Shim Y 4

32 29090012091 调整垫片 Shim Y 5

33 29090011491 输入法兰 Flange Y 1

34 29090011651 法兰 Connection flange Y 1

35 29070010061 防尘罩 Dust cover Y 1

36 29090011541 主从动螺旋伞齿轮 Crown wheel Y 1

37 29090011661 从动螺旋伞齿轮 Crown wheel N 1

38 29090011671 主动螺旋伞齿轮 Crown wheel N 1

39 29090011692 差速器左右壳 Differential housing Y 1

40 29090011702 差速器左壳 Differential housing N 1

41 29090012401 差速器右壳 Differential housing N 1

42 29090011522 托架总成 Center housing Y 1

43 29090011682 托架 Centre housing N 1

44 29070010331 轴承座 Bearing seat N 2

45 29070009511 垫圈 Washer Y 4

46 4011000231 螺栓GB5782-M16*70EpZn-8.8 Screw Y 4

47 29090011532 差速器总成 Differential Y 1

48 29070020611 一字轴 Shaft Y 2

49 29070020141 锥齿轮 Differential pinion Y 4

50 29070020151 锥齿轮垫片 Thrust washer Y 4

51 29090011931 半轴齿轮 Drive shaft gear Y 2

52 29070020171 半轴齿轮垫片 Thrust washer Y 2

53 29070000461 固定销 Pin Y 4

54 4011000964 螺栓GB5785-M14*1.5*70EpZn-10.9 Screw Y 8
