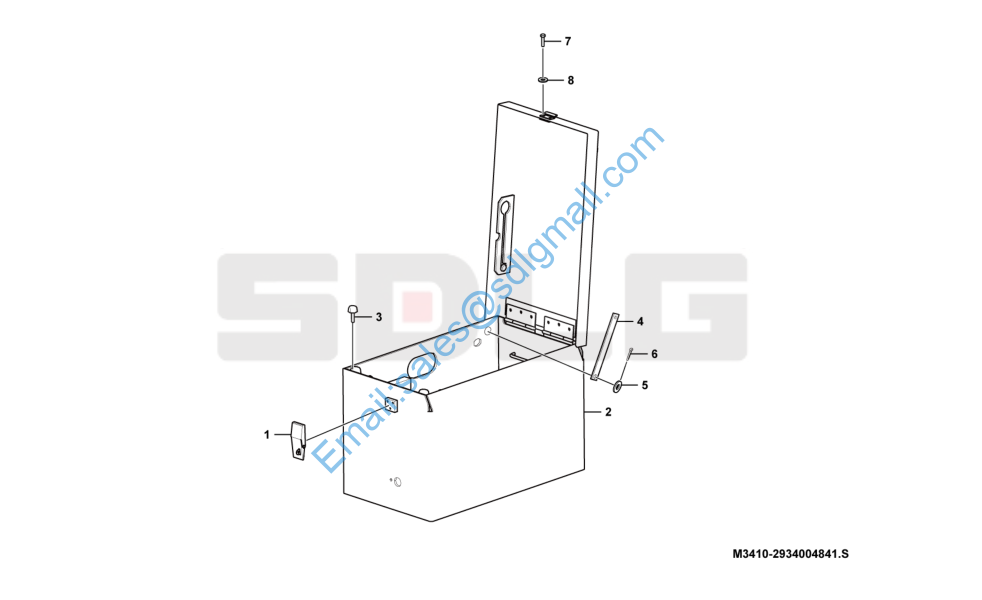

L920 左电瓶箱总成 Battery box assembiy M3410-2934004841

1 4190000025 扣锁NBxs1013 Lock Y 1

2 29340048421 左电瓶箱 Battery box assembiy N 1

3 29340009101 橡胶塞 Rubber plug Y 2

4 29340009091 拉杆 Pull rod Y 1

5 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

6 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 1

7 4014000023 螺钉GB818-M5*10EpZn-4.8 Screw Y 5

8 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5

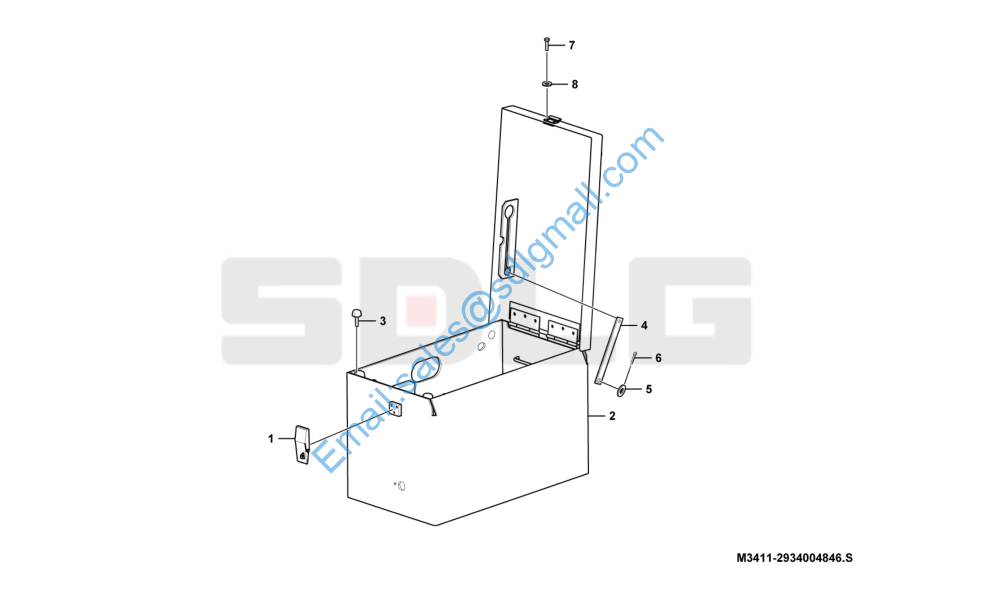

右电瓶箱总成 Battery box assembiy M3411-2934004846

1 4190000025 扣锁NBxs1013 Lock Y 1

2 29340048471 右电瓶箱 Battery box assembiy N 1

3 29340009101 橡胶塞 Rubber plug Y 2

4 29340009091 拉杆 Pull rod Y 1

5 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

6 4016000035 开口销GB91-4*20EpZn-Q235A Split pin Y 1

7 4014000023 螺钉GB818-M5*10EpZn-4.8 Screw Y 5

8 4015000110 垫圈GB97.1-5EpZn-300HV Washer Y 5
