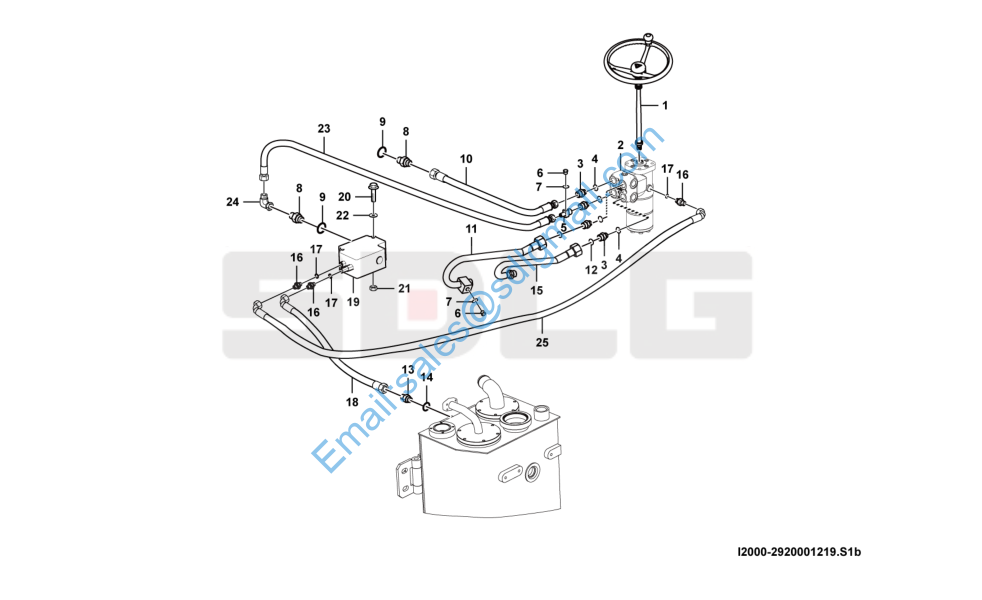

L918 转向器总成 Steering gear system I2000-2920001219

1 29200010591 转向柱总成 Steering column N 1

2 4120003949 转向器BZZ5-320A Control valve Y 1

3 4041000564 直接头LGB120-02620 Nipple Y 4

4 4041000783 O形圈LGB168-11724 O-ring Y 4

5 29200010851 过渡接头 Nipple Y 1

6 4041000774 螺塞LGB135-01422 Plug Y 2

7 4041000767 O形圈LGB168-11124 O-ring Y 2

8 4041000187 直接头LGB120-02622 Nipple Y 2

9 4041000771 O形圈LGB168-11924 O-ring Y 2

10 4041002124 软管LGB165-010085 Hose Y 1

11 29200008561 转向器出油钢管A Pipe Y 1

12 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

13 4041000133 直接头LGB120-01414 Nipple Y 1

14 4041000775 O形圈LGB168-21124 O-ring Y 1

15 29200004031 转向器出油钢管B Hose assembly Y 1

16 4041000131 直接头LGB120-01412 Nipple Y 3

17 4041000784 O形圈LGB168-10924 O-ring Y 3

18 4041002438 软管LGB165-003095 Hose assembly Y 1

19 4120000709 优先阀VLE-150 Priority valve Y 1

20 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 2

21 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

22 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

23 4041000590 软管LGB127-010110 Hose assembly Y 1

24 29200007931 直角接头 Nipple Y 1

25 29200007841 优先阀反馈油管 Hose assembly Y 1
