Description

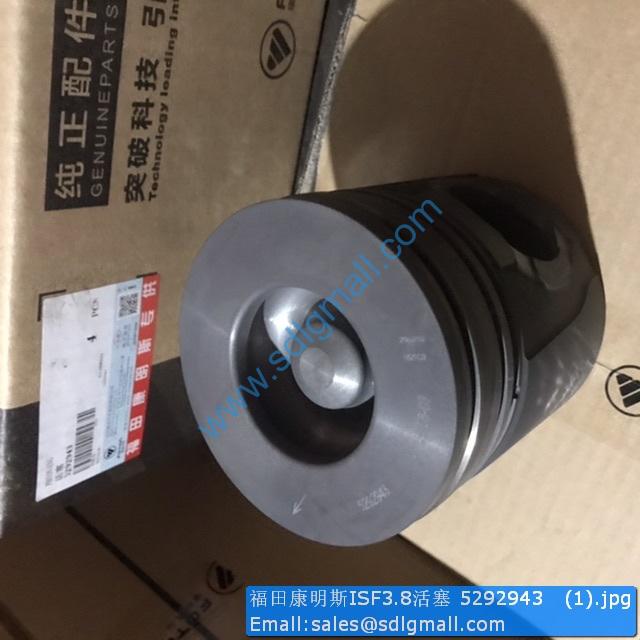

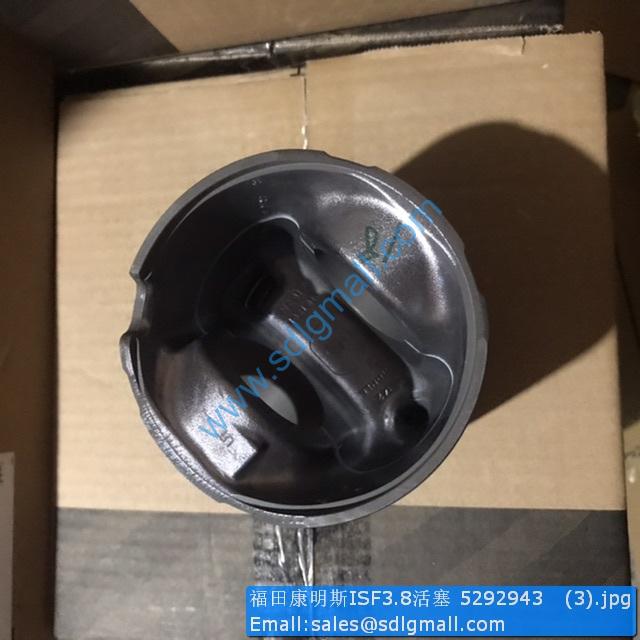

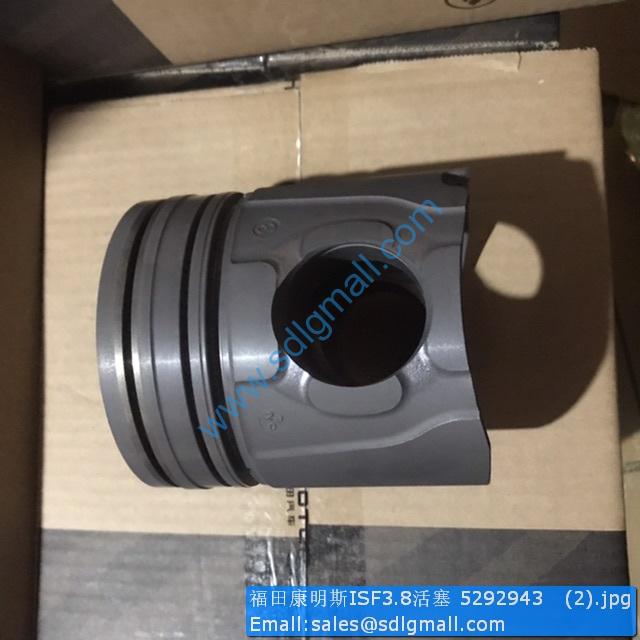

Foton Cummins ISF3.8 Piston 5292943

1 S-949-B Plug, Pipe 1 1/8 NPT
2 67950 Clip 1
3 3015237 Transducer 1
4 3015238 Transducer 1
5 3044990 Plug, Injector Orifice 1
6 3056351 Switch, Temperature 1
7 3062867 Switch, Pressure 3
3349117 Connector, Male 1
8 (3349123) Connector, Male 1
9 3678925 Seal, O Ring 1
10 3906216 Nut, Hexagon Flange 1 M6 x 1.00
11 3913638 Screw, Hex Flange Head Cap 1 M6 x 1.00 x 15
12 3918253 Tube, Lub Oil Supply 1
13 (3918255) Connection, Oil Block 1
14 3920447 Screw, Hex Flange Head Cap 2 M12 x 1.75 x 40
15 3921912 Connector, Male 1
16 3925583 Harness, Wiring 1
3932302 Connector, Female 1
9 3678925 Seal, O Ring 1
17 (3932301) Connector, Female 1

1 68368-B Spacer, Mounting 1
2 3900630 Screw, Hex Flange Head Cap 1 M8 x 1.25 x 20
3897134 Guard, Belt 1
3 3925492 Guard, Belt 1

1 3903834 Screw, Twelve Point Cap 3 M10 x 1.50 x 35

1 3916854 Motor, Starting 1

1 210753 Clamp, Hose 4 9/16 – 1 1/4 inch
2 3016666 Clamp, T Bolt 2
3 3918109 Screw, Hex Flange Head Cap 4 M8 x 1.25 x 25
4 3902460 Screw, Hex Flange Head Cap 4 M10 x 1.50 x 25
5 3905034 Hose, Plain 1
(3908225) Coupling, Hose 1
6 3906619 Plug, Pipe 1 1/8 NPT
7 3908221 Coupling, Elbow Hose 1
8 3909394 Draincock 1 1/8 NPTF
9 3910778 Decal 1
10 3931347 Gasket, Int Manifold Cover 1
11 3914856 Gasket, Connection 1
12 3933335 Connection, Air Crossover 1
13 3916120 Hose, Plain 1
14 3921926 Gasket, Turbocharger 1
15 3916438 Hose, Plain 1
17 3918108 Screw, Hex Flange Head Cap 12 M8 x 1.25 x 16
18 3918189 Washer, Sealing 4
19 3919806 Aftercooler 1
3920946 Connection, Water Transfer 1
20 3007636 Plug, Expansion 1
21 (3920945) Connection, Water Transfer 1
