Description

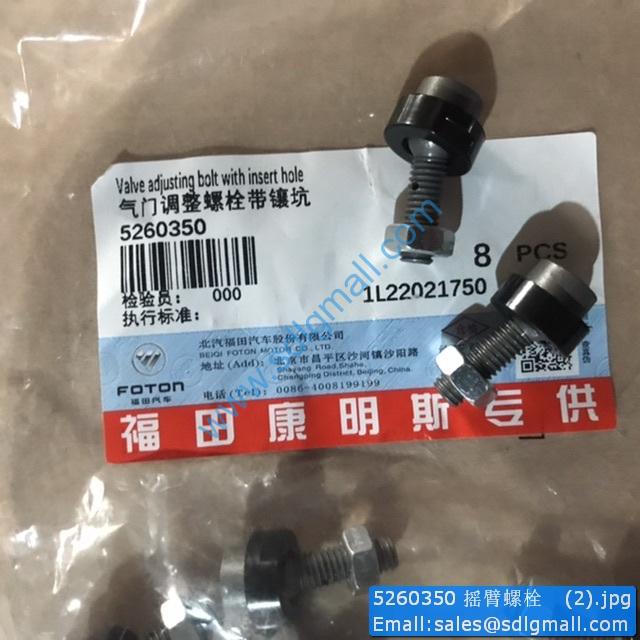

5260350 Rocker bolt

BP97158 Crankshaft 1
3908032 Crankshaft, Assembly 1
1 (3929037) Crankshaft, Engine 1
2 3929027 Gear, Crankshaft 1
3 3904483 Dowel, Pin 1
MAIN BEARING SETS
3802070 Set, Main Brg (std) 1 Standard
4 (3929016) Bearing, Main 6
5 3926723 Bearing, Crankshaft Thrust 1
6 (3929021) Bearing, Main 7

3802071 Set, Main Brg (.010) 1 0.25mm Oversize
4 (3929017) Bearing, Main 6
5 (3283065) Bearing, Crankshaft Thrust 1
6 (3929022) Bearing, Main 7

3802072 Set, Main Brg (.020) 1 0.50mm Oversize
4 (3929018) Bearing, Main 6
5 (3283066) Bearing, Crankshaft Thrust 1
6 (3929023) Bearing, Main 7

3802073 Set, Main Brg (.030) 1 0.75mm Oversize
4 (3929019) Bearing, Main 6
5 (3283067) Bearing, Crankshaft Thrust 1
6 (3929024) Bearing, Main 7

3802074 Set, Main Brg (.040) 1 1.00mm Oversize
4 (3929020) Bearing, Main 6
5 (3283068) Bearing, Crankshaft Thrust 1
6 (3929025) Bearing, Main 7

3800330 Bearing, Crankshaft Thrust 1 .5mm Oversize Bore/.5mm
Oversize Thrust
5 (3283063) Bearing, Crankshaft Thrust 1
6 (3929023) Bearing, Main 1

3800331 Bearing, Crankshaft Thrust 1 1.0mm Oversize Bore/1.0mm
Oversize Thrust
5 (3283064) Bearing, Crankshaft Thrust 1
6 (3929025) Bearing, Main 1
SERVICE PARTS
7 3802820 Kit, Seal 1 Front
8 3926126 Kit, Seal 1 Rear

1 109144 Screw, Hexagon Head Cap 2 1/4-20 x 1 inch
2 S-920 Nipple, Plain Pipe 1 1/2 NPTF
3 S-960 Tee, Female Pipe 1 3 x 1/2 NPTF
4 S-982 Bushing, Reducing Pipe 1 3/4 NPTF(Ext) x 1/2 NPTF(Int)
(Int)
5 204991 Washer, Plain 2
6 3035083 Isolator, Vibration 2
7 3035084 Isolator, Vibration 2
8 3044360 Nut, Regular Hexagon 2 M10 x 1.50
9 3901446 Screw, Hex Flange Head Cap 1 M8 x 1.25 x 60
10 3903112 Screw, Hex Flange Head Cap 2 M10 x 1.50 x 30
11 3907167 Coupling, Plain Hose 1
12 3906619 Plug, Pipe 1 1/8 NPT
13 3908221 Coupling, Elbow Hose 1
14 3911836 Heater, Engine 1
15 3911841 Tube, Water Transfer 1
16 3911845 Bracket, Engine Heater 1
17 3911876 Hose, Flexible 1
18 3911879 Elbow, Male Adapter 1
19 3911880 Coupling, Elbow Hose 1
20 3911887 Elbow, Male Adapter 1
21 3918163 Clamp, Hose 4
22 3918611 Hose, Plain 2
