Description

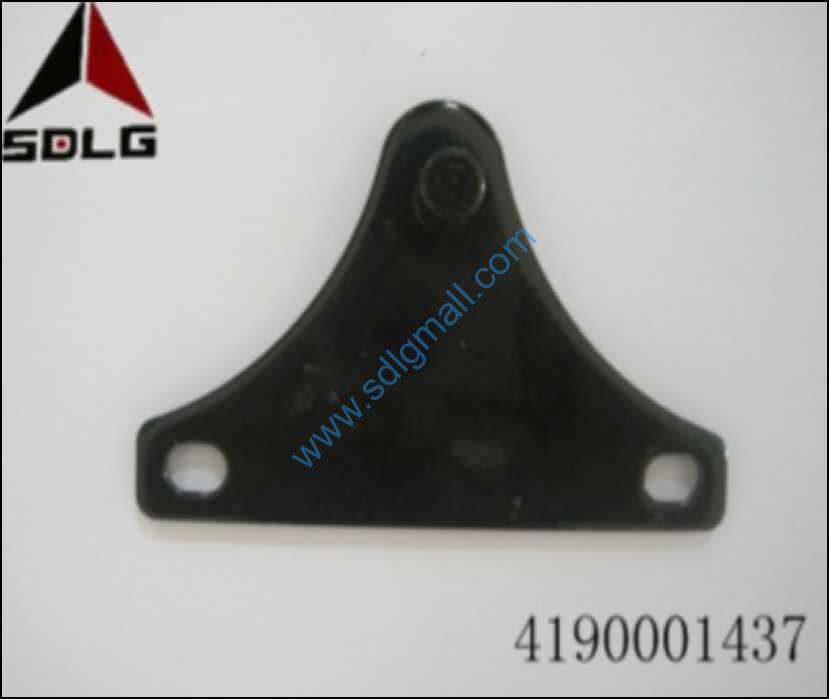

4190001437 LOCK CATCH
| 4090000183 | 钢球GB308-6.5-GCr15 | STEEL BALL GB308-6.5-GCr15 |
| 4120003127006 | 油管组件B 02165.0024Y.600 | pipe |
| 4120003124012 | 防尘圈ME φ70*φ85*5 | sealing ring |
| 4120003127007 | 轴套Q/HL 102121.2-2010 φ70*φ85*66 | bushing |
| 4011000504 | 螺栓GB5782-M10*40EpZn-8.8 | BOLT GB5782-M10*40EpZn-8.8 |
| 4015000025 | 垫圈GB93-10-65Mn | spring washer |
| 4013000007 | 螺母GB6170-M10EpZn-8 | nut |
| 4120003127008 | 卡箍组件02165.0024Y.700 | clamp |
| 4120003126005 | 压板Q/HL 102118-2010 YB-04 | plate |
| 4011000048 | 螺栓GB5782-M10*50EpZn-8.8 | bolt |
| 4015000025 | 垫圈GB93-10-65Mn | spring washer |
| 4120003127002 | 活塞02165.0024Y.004 | PISTON 02165.0024Y.004 |
| 4120003127009 | 铲斗用缓冲套Q/HL 102102.1-2010 d=65 | bushing |
| 4120003127010 | 油管组件A 02165.0024Y.500 | pipe |
| 4120003127011 | 缸体02165.0024Y.300 | CYLINDER BODY 02165.0024Y.300 |
| 4120003127012 | 端盖02165.0024Y.002 | CYLINDER COVER 02165.0024Y.002 |
| 4120003127003 | 活塞杆02165.0024Y.100A | piston rod |
| 4014000378 | 螺钉GB70.1-M12*65EpZn-12.9 | SCREW GB70.1-M12*65EpZn-12.9 |
| 4014000180 | 螺钉GB70.1-M8*30EpZn-10.9 | BOLT GB70.1-M8*30EpZn-10.9 |
| 4120003665 | O形圈21.89*2.622-118N552-90 | o-ring |
| 4120003127 | 铲斗油缸HSGK-90*65*856-1352 | bucket cylinder |
