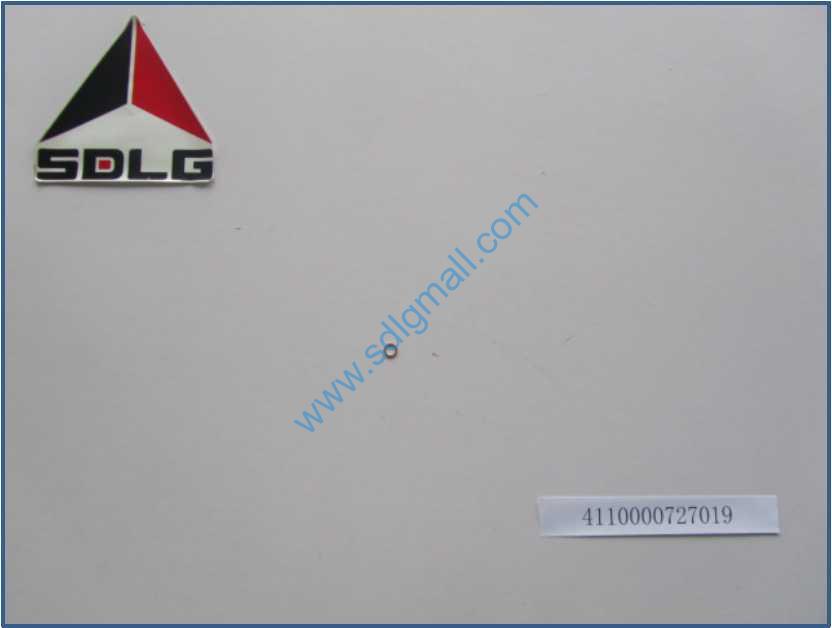

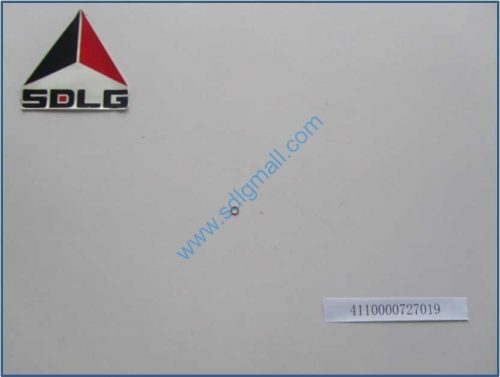

4110000727019 SEALING RING DIN IN7603-A 12X17-CU 1013651-56D
Description
| 2907000040 |
锁紧片 |
LOCKING LEAF |
| 4015000025 |
垫圈 GB93-10-65Mn |
WASHER GB93-10-65Mn |
| 4011000597 |
螺栓 GB5786-M10*1*20EpZn-8.8 |
BOLT GB5786-M10*1*20EpZn-8.8 |
| 2907000130 |
垫圈 |
WASHER |
| |
|
|
| 2907000952 |
螺栓 |
BOLT |
| 2907000029 |
主动螺旋伞齿轮（左） |
SPIRAL BEVEL GEAR PINION(LEFT) |
| 4021000027 |
滚动轴承 GB283-NUP2307 |
BEARING GB283-NUP2307 |
| 4015000020 |
挡圈 GB894.1-35-65Mn |
RING SNAP GB894.1-35-65Mn |
| 2907000033 |
锥齿轮垫片 |
WASHER THRUST |
| 2907000034 |
锥齿轮 |
GEAR PINION |
| 2907000951 |
垫圈 |
WASHER |
| 4013000198 |
螺母 GB6176-M16*1.5-10 |
NUT GB6176-M16*1.5-10 |
| 2907000043 |
差速器左壳 |
LEFT CASE DIFF |
| 2907000038 |
半轴齿轮垫片 |
WASHER THRUST |
| 2907000037 |
半轴齿轮 |
GEAR SIDE |
| 2907000041 |
十字轴 |
SPIDER |
| 4041000019 |
O 形圈 LGB308-430*3.5 |
O-RING LGB308-430*3.5 |
| 2907000045 |
从动螺旋伞齿轮（右） |
LARGE SPRIAL BEVELGEAR (RIGHT) |
| 2907000036 |
差速器右壳 |
RIGHT CASE DIFF |
| 2907000949 |
螺栓 |
BOLT |
| 2907000950 |
螺栓 |
BOLT |
↑
