Description

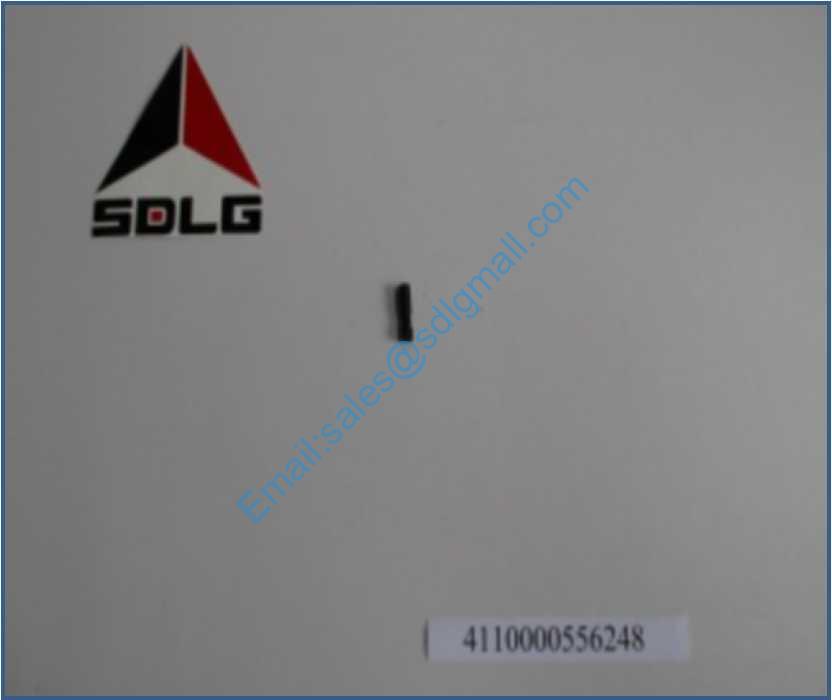

4110000556248 SDLG SHAFT 61560050058
| 4110000184188 | 直接档连接盘 403225X1 | CONNECTING DISH FOR THE DIRECT RANGE 403225X1 |
| 4015000024 | 挡圈GB894.1-90-65Mn | RETAINNER RING GB894.1-90-65Mn |
| 4021000180 | 轴承GB277-50210 | BEARING GB277-50210 |
| 4110000184080 | 太阳轮 403226 | GEAR-SUN 403226 |
| 4110000184189 | 止动片 403224X1 | STOP PLATE 403224X1 |
| 4110000184190 | 一档行星架 403223X1 | PLANET CARRIER OF FIRST GEAR 403223X1 |
| 4110000184083 | 卡圈 403220 | RETAINER RING 403220 |
| 4110000184084 | 倒档内齿圈 403216 | REVERSE RANGE GEAR-RING 403216 |
| 4110000184085 | 摩擦片隔架总成 403014-15 | FRAME ASSEMBLY 403014-15 |
| 4110000184086 | 倒档行星架 403213 | CARRIER OF REVERSE ASS’Y 403213 |
| 4110000184191 | 止动垫圈 403215X1 | STOP WASHER 403215X1 |
| 4015000036 | 垫圈GB93-8-65Mn | WASHER GB93-8-65Mn |
| 4011000775 | 螺栓GB5783-M18*14-8.8 | BOLT GB5783-M18*14-8.8 |
| 4110000184088 | 内密封环 403020A | INTERNAI SEAL RING 403020A |
| 4110000184089 | 倒档活塞体 403018A | PISTION 403018A |
| 4021000011 | 滚动轴承GB276-6010 | BALL BEARIN GB276-6010 |
| 4110000184192 | 一档行星轴 403227X1 | PLANET SHAFT OF FIRST SHAFT 403227X1 |
| 4110000184091 | 垫片 403217 | SPACER 403217 |
| 4110000184092 | 隔离套 403219 | ISOLATED BUSHING 403219 |
| 4090000001 | 滚针GB309-4*35-GCr15 | ROLLER GB309-4*35-GCr15 |
| 4110000184093 | 行星轮 403218 | PLANET GEAR 403218 |
| 4110000184094 | 弹簧销轴 403016 | SPRING PIN 403016 |
| 4110000184095 | 弹簧 403017 | SPRING 403017 |
| 4110000184096 | 倒档行星轴 403221 | REVERSE PLANET SPINDLE 403221 |
| C11-4110000184 | Ⅰ轴总成（330101） | ⅠSHAFT ASSEMBLY |
| 4110000184097 | 旋转油封70*78*5 403101 | OIL SEAL 70*78*5 403101 |
| 4021000013 | 滚动轴承GB276-6016 | BALL BEARING GB276-6016 |
| 4110000184098 | 输入二级齿轮 403103 | 2ND STAGE INPUT GEAR 403103 |
| 4110000184099 | 旋转油封45*53*5 403102 | OIL SEAL 45*53*5 403102 |
| 4021000040 | 滚动轴承GB301-51111 | THRUST BALL BEARING GB301-51111 |
| 4110000184100 | 输入一级齿轮 403104 | 1ST STAGE INPUT GEAR 403104 |
| 4021000023 | 滚动轴承GB276-6311 | BEARING GB276-6311 |
| 4110000184101 | 调整圈 403105 | ADJUSTING WASHER 403105 |
| C12-4110000184 | Ⅱ轴总成（330101） | ⅡSHAFT ASSEMBLY |
| 4110000184102 | 滚柱Φ15*32 403207A | ROLLER Φ15*32 403207A |
| 4110000184103 | 弹簧 403204A | SPRING 403204A |
| 4110000184104 | 弹簧座 403202A | SPRING SEAT 403202A |
| 4021000020 | 滚动轴承GB276-6211 | BEARING GB276-6211 |
| 4013000036 | 螺母GB6171-M10*1EpZn-8 | NUT GB6171-M10*1EpZn-8 |
| 4015000008 | 垫圈GB859-10-65Mn | WASHER GB859-10-65Mn |
| 4110000184105 | 中间输人轴 403203 | INTER-INPUT SHAFT |
| 4021000011 | 滚动轴承GB276-6010 | BALL BEARIN GB276-6010 |
| 4110000184106 | 隔离套 403210 | ISOLATED BUSHING 403210 |
| 4110000184107 | 滚柱左挡圈 403205A | ROLLER CIRCLIP(LEFT) 403205A |
| 4110000184108 | 内环凸轮 403209 | INNER RACE CAM 403209 |
| 4110000184109 | 滚柱右挡圈 403206 | ROLLER CIRCLIP(RIGHT) 403206 |
| 4015000015 | 挡圈GB893.1-80-65Mn | RIONG SNAP GB893.1-80-65Mn |
| 4110000184110 | 螺栓 403201 | BOLT 403201 |
| 4110000184111 | 外环齿轮 403208A | GEAR 403208A |
| 4021000018 | 滚动轴承GB276-6210 | BEARING GB276-6210 |
| 4110000184112 | 隔离环 403211 | ISOLATED RING 403211 |
| 4110000184113 | 调整圈 403212 | ADJUSTING WASHER 403212 |
| C1-2905001257 | 变速箱总成 | TRANSMISSION SYSTEM |
| 4011000174 | 螺栓GB21-M10*70EpZn-8.8 | BOLT GB21-M10*70EpZn-8.8 |
| 4015000025 | 垫圈GB93-10-65Mn | WASHER GB93-10-65Mn |
| 4120000064 | 变速操纵阀LG03-BSF | SHIFT CONTROL VALVE LG03-BSF |
| 29050011381 | 密封垫 | GASKET |
| 4120000125 | 接头体GB3733.2-G28EpZn-35 | JOINT BODY GB3733.2-G28EpZn-35 |
| 4030000013 | O形圈GB1235-32*3.1 | O-RING GB1235-32*3.1 |
| 3030900098 | 圆柱堵塞 | BOTT |
