Description

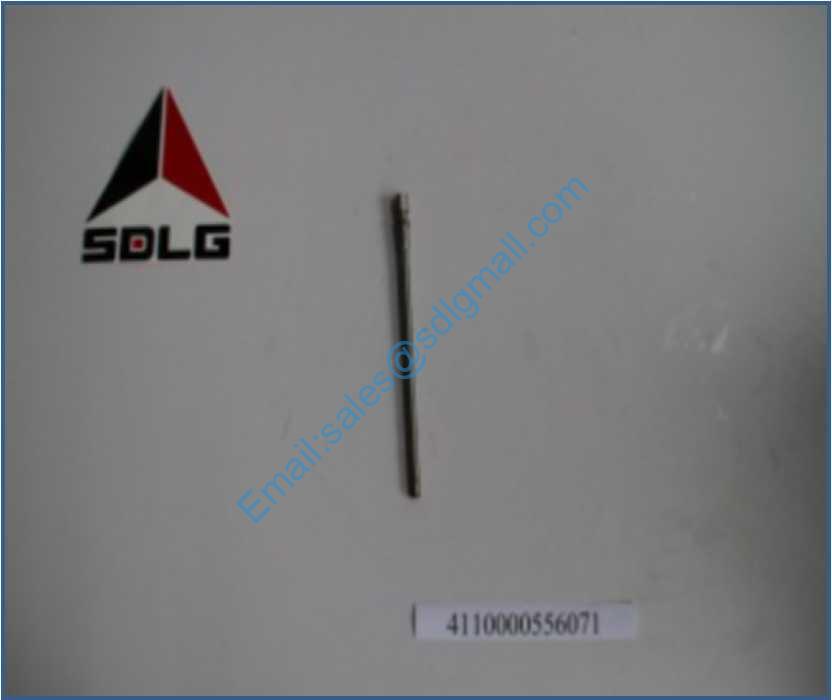

4110000556071 SDLG DIPSTIC PIPE GROUP 612600011615
| 29250001152 | 左前挡泥瓦 | LEFT FRONT FENDER |
| 29250008021 | 左灯架 | BRACKET OF LAMP |
| 29250008031 | 右灯架 | RIGHT BRACKET OF LAMP |
| 29250001182 | 右前挡泥瓦 | RIGHT FRONT FENDER |
| 4043000020 | 销轴LGB301-95*149R*285G-40Cr | PIN LGB301-95*149R*285-40Cr |
| 4011000474 | 螺栓GB16674-M10*25EpZn-8.8 | BOLT GB16674-M10*25EpZn-8.8 |
| 29250001361 | 走线胶套 | RUBBER SLOEVE |
| 29250001121 | 卡板 | PLATE |
| 29250000291 | 通油螺栓 | BOLT |
| 29250000301 | 垫片 | SPACER |
| 29250001251 | 油管 | TUBE |
| 29250000311 | 管夹 | CLIP |
| 4015000035 | 垫圈GB93-6-65Mn | WASHER GB93-6-65Mn |
| 4014000024 | 螺钉GB818-M6*10EpZn-4.8 | SCREW GB818-M6*10EpZn-4.8 |
| K4-2927000899 | 后车架总成 | REAR FRAME |
| 29260015311 | 后车架 | REAR FRAME |
| 4030000065 | 油杯JB7940.1-M10*1 | GREASE NIPPLE JB7940.1-M10*1 |
| 4043000064 | 垫片LGB303-40*70*1 | SPACER LGB303-40*70*1 |
| 4043000325 | 垫片LGB303-40*70*2 | SPACER LGB303-40*70*2 |
| 4011000093 | 螺栓GB5783-M16*25EpZn-8.8 | BOLT GB5783-16*25EpZn-8.8 |
| 4040000002 | 垫圈LGB001-16 | WASHER LGB001-16 |
| 2110900059 | 副车架注油管 | OIL TUBE OF OSCILLATING FRAME |
| 29040001041 | 支承架 | BRACKET |
| 4011000479 | 螺栓GB16674-M12*30EpZn-8.8 | BOLT GB16674-M12*30EpZn-8.8 |
| 29270008751 | 走线胶套 | RUBBER LAGGING |
| 29270008901 | 锁定杆 | MOUNT BAR |
| 29270001121 | 后转向销轴 | SWERVE PIN AXIS |
| 4011000197 | 螺栓GB5783-M12*25EpZn-8.8 | BOLT GB5783-M12*30EpZn-8.8 |
| 4015000026 | 垫圈GB93-12-65Mn | WASHER GB93-12-65Mn |
| 29250001111 | 卡板 | PLATE |
| 2110900060 | 副车架销 | PIN FOR OSCILLATING FRAME |
| 29270001031 | 套 | BUSH |
| 29270001041 | 副车架 | OSCILLATING FRAME |
| 29270001051 | 调整垫片 | ADJUST SPACER |
| 4016000040 | 开口销GB91-6.3*50EpZn-Q235A | SPLINT PIN GB91-6.3*50EpZn-Q235A |
| 4016000190 | 销轴GB882-B30*85EpZn-35 | PIN GB882-B30*85EpZn-35 |
| 29250001351 | 走线胶套 | RUBBER SLEEVE |
| K5-2928000797 | 配重铁总成 | COUNTER WEIGHT |
| 29280007981 | 后平衡铁 | REAR COUNTER WEIGHT |
| 29280008021 | 下平衡铁 | BALANCE WEIGHT |
| 4015000119 | 垫圈GB97.1-30EpZn-300HV | WASHER GB97.1-30EpZn-300HV |
| 4011000703 | 螺栓GB5785-M30*2*330EpZn-8.8 | BOLT GB5785-M30*2*330-8.8 |
| 4013000064 | 螺母GB889.2-M30*2EpZn-8 | LOCKING NUT GB889.2-M30*2-8 |
| 29280001041 | 牵引销 | TRACTIVE PIN |
| 29280008031 | 下平衡铁 | BALANCE WEIGHT |
| L1-2929000985 | 驾驶室总成 | CAB ASSEMBLY |
| 29290009871 | 驾驶室 | CAB |
| 4011000144 | 螺栓GB16674-M12*80EpZn-8.8 | BOLT GB16674-M12*80EpZn-8.8 |
| 4011000151 | 螺栓GB16674-M16*80EpZn-8.8 | BOLT GB16674-M16*80EpZn-8.8 |
| L2-2929000987 | 驾驶室 | CAB |
| 4190001634 | 驾驶室框架 | CAB ASSEMBLY |
| 4190000650 | 前侧玻璃 | FRONT SIDE GLASS |
| 4190000651 | 前玻璃 | FRONT GLASS |
| 4190000586 | 工作灯 | WOEKING LAMP |
| 4190000575 | 倒车镜总成 | BACK UP GLASS GROUP |
| 4011000105 | 螺栓GB5783-M8*20EpZn-8.8 | BOLT GB5783-M8*20EpZn-8.8 |
| 4015000036 | 垫圈GB93-8-65Mn | WASHER GB93-8-65Mn |
| 4015000072 | 垫圈GB97.1-8EpZn-300HV | WASHER GB97.1-8EpZn-300HV |
| 4190000657 | 后侧玻璃 | REAR SIDE GLASS |
| 4014000028 | 螺钉GB825-M16EpZn-25 | SCREW GB825-M16EpZn-25 |
| 4190000581 | 挂衣钩 | CLOTHING HOOK |
| 4030000306 | 油杯JB7940.2-45°M6 | OIL CUP JB7940.2-45°M6 |
| 4190000659 | 左上门总成 | LEFT-TOP DOOR ASSEMBLY |
| 4190000660 | 右上门总成 | DOOR ASSEMBLY |
| 4190000578 | 顶灯 | DOME LAMP |
| 4190000661 | 门玻璃 | DOOR GLASS |
| 4190000608 | 电风扇 | ELECTRIC FAN |
| 4014000063 | 螺钉GB818-M6*25EpZn-4.8 | SCREW GB818-M6*25EpZn-4.8 |
