Description

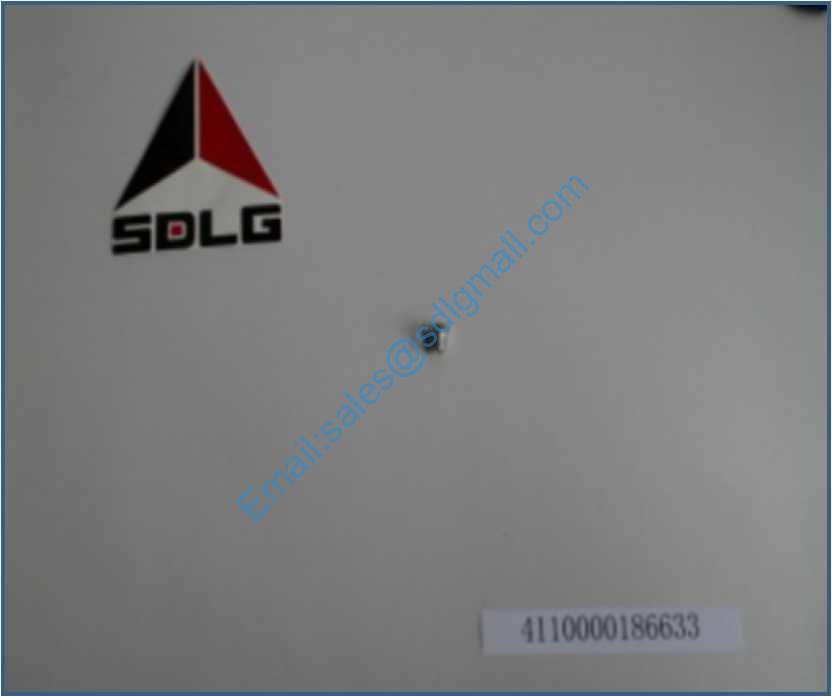

4110000186633 OIL PRESSURE GAUGE CONNECTOR C00AL-00AL020
| 4044000010 | 驾驶室门注意标志LGB401-C01 | MARK-LGB401-C01 |
| 29360008781 | 铰接转向图形标志 | GRAPHIC SIGNS ARTICULATED STEERING |
| 29360009171 | 液压油箱标志 | HYDRAULIC TANK LOGO |
| 29360010051 | 标志与标识 | SIGN AND LOGO |
| 2936001005001 | 安全标识包 | SAFETY LOGO PACKAGE |
| M6-2934001429 | 电瓶箱 | BATTERY CASE |
| 29340014131 | 卡子胶条 | DIP RUBBER BAR |
| 4014000047 | 螺钉GB818-M5*8EpZn-4.8 | SCREW GB818-M5*8EpZn-4.8 |
| 4190000025 | 扣锁NBxs1013 | LOCK NBXS1013 |
| 29340014301 | 左箱体 | LEFT BODY |
| 29340009091 | 拉杆 | LINK ASSEM |
| 4015000168 | 垫圈GB97.1-12EpZn-300HV | WASHER GB97.1-12EpZn-300HV |
| 4016000035 | 开口销GB91-4*20EpZn-Q235A | SPLIT PIN 4*20 |
| 29340009081 | 侧胶板 | RUBBER PAD |
| 29340014101 | 锁紧螺杆 | CLAMP BOLT |
| 29340014171 | 胶垫 | RUBBER PAD |
| 4014000031 | 螺钉GB825-M8EpZn-20 | 吊环螺钉GB825-M8EpZn-20 |
| 29340009111 | 锁紧角钢 | LOCKING ANGLE BAR |
| 4013000033 | 螺母GB6170-M8EpZn-8 | NUT GB6170-M8EpZn-8 |
| 4015000036 | 垫圈GB93-8-65Mn | WASHER GB93-8-65Mn |
| 4015000072 | 垫圈GB97.1-8EpZn-300HV | WASHER GB97.1-8EpZn-300HV |
| M7-2934001431 | 工具箱 | TOOL CASE |
| 29340014131 | 卡子胶条 | DIP RUBBER BAR |
| 4014000047 | 螺钉GB818-M5*8EpZn-4.8 | SCREW GB818-M5*8EpZn-4.8 |
| 4190000025 | 扣锁NBxs1013 | LOCK NBXS1013 |
| 29340014321 | 右箱体 | TOOLBOX BODY |
| 29340009091 | 拉杆 | LINK ASSEM |
| 4015000168 | 垫圈GB97.1-12EpZn-300HV | WASHER GB97.1-12EpZn-300HV |
| 4016000035 | 开口销GB91-4*20EpZn-Q235A | SPLIT PIN 4*20 |
| N1-2935000888 | 暖风机 | WARMING MACHINE |
| 29350008891 | 固定架 | BRACKET |
| 4011000154 | 螺栓GB16674-M6*20EpZn-8.8 | BOLT GB16674-M6*20EpZn-8.8 |
| 4190000917 | 暖风机BKC－II | WARMING MACHINE BKC-II |
| 4011000458 | 螺栓GB16674-M8*20EpZn-8.8 | BOLT GB16674-M8*20Ep.Zn-8.8 |
| 4130000514 | 暖风机开关JK931-01NFJ | SWITCH OF WARMING MACHINE |
| N2-2935000974 | 空调 | AIR CONDITIONER |
| 4011000154 | 螺栓GB16674-M6*20EpZn-8.8 | BOLT GB16674-M6*20EpZn-8.8 |
| 4011000085 | 螺栓GB5783-M10*35EpZn-8.8 | BOLT GB5783-M10*35EpZn-8.8 |
| 4013000007 | 螺母GB6170-M10EpZn-8 | NUT GB6170-M10EpZn-8 |
| 4015000025 | 垫圈GB93-10-65Mn | WASHER GB93-10-65Mn |
| 4015000162 | 垫圈GB97.1-10EpZn-300HV | WASHER GB97.1-10EpZn-300HV |
| 29350007541 | 调节板 | ADJUST PLATE |
| 4110000885 | 压缩机皮带A17-490 | BELT,COMPRESSOR |
| 29350000051 | 托板 | SUPPORT PLATE |
| 4011000447 | 螺栓GB16674-M10*20EpZn-8.8 | BOLT GB16674-M10*20EpZn-8.8 |
| 4190001755 | 空调LG953W2 | AIR CONDITIONER LG953W2 |
| 4011000461 | 螺栓GB16674-M8*16EpZn-8.8 | BOLT GB16674-M8*16EpZn-8.8 |
| 26370001981 | 管夹 | CLAMP |
| 4011000137 | 螺栓GB16674-M12*20EpZn-8.8 | BOLT GB16674-M12*20EpZn-8.8 |
| 4130000633 | 蒸发器总成 | EVAPORATOR ASSEMBLY |
| 4190001338 | 冷凝器总成 | CONDENSATOR ASSEMBLY |
| 4130000419 | ZG30.06XG储液罐 | RECEIVER |
| 4130000420 | SE5H14压缩机 | COMPRESSOR ASSEMBLY |
| 4190000810 | 储液器卡子 | RECEIVER CLIP |
| 4120001809 | 管路：压缩机-冷凝器2400 | PIPE COMPRESSOR-CONDENSATOR |
| 4120001514 | 管路：冷凝器-储液罐2100 | PIPE CONDENSER-RECEIVER |
| 4120001671 | 管路：储液罐-蒸发器L12 | PIPE RECEIVER-EVAPORATOR |
| 4120001812 | 管路：蒸发器-压缩机2600 | PIPE EVAPORATOR-COMPRESSOR |
| 4130000988 | 空调线束 | WIRING HARNESS FOR AIR CONDITIONER |
| 4130000418 | ZG30.11XG-09温控器 | CONTROL PANEL |
| N3-4190000917 | 暖风机 | WARMING MACHING |
| 4190000917001 | 散热器总成1301010 | RADIATOR ASSEMBLY 1301010 |
| 4190000917002 | 电机风道总成8101030 | MOTOR DUCT ASSEMBLY 8101030 |
