Description

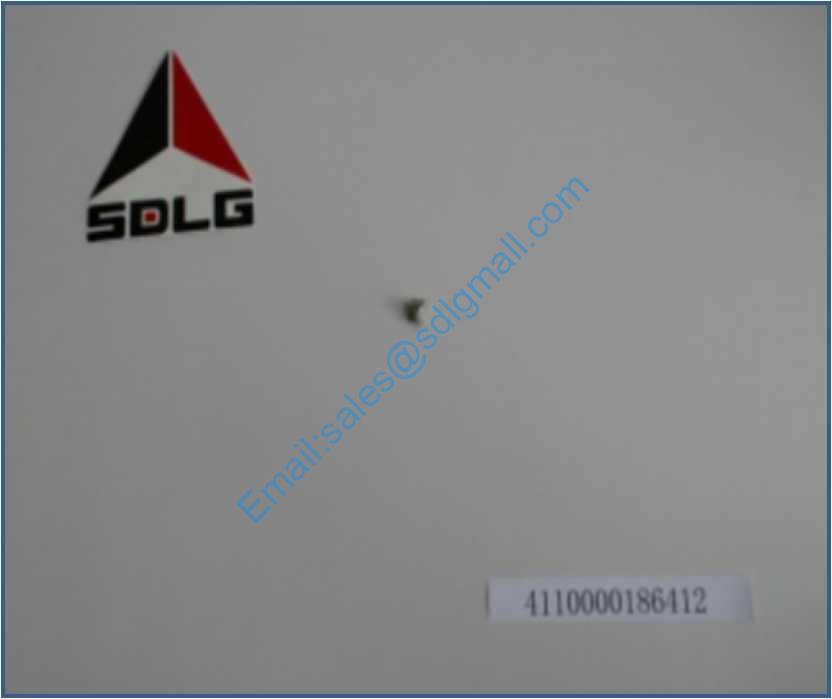

4110000186412 HEX HEAD TAPER PIPE PLUG U564C-5F0304
| 29250000311 | 管卡 | Plate |
| 28050000091 | 支座 | BRACKET |
| 28040000131 | 润滑油管 | HOSE |
| 29250000291 | 通油螺栓 | BOLT |
| 29250000301 | 垫片 | WASHER |
| 28050000021 | 密封圈 | SEAL |
| C1-4110000145 | 变速箱体部件 | TRANSMISSION BOX AND FITTINGS |
| 4110000145046 | 螺塞 M26*1.5 0637510104 H | PLUG M26*1.5 0637510104 H |
| 4110000076333 | 密封罩 4466 351 081Φ80 | SEALING COVER 4466 351 081Φ80 |
| 4110000145047 | 挡板 YD13 301 010 | BAFFLE YD13 301 010 |
| 4110000076157 | 通气帽 0750 131 027 | BREATHER CAP 0750 131 027 |
| 4110000076239 | 螺塞 M26*1.50636305019 | PLUG 0636 305 019 AM26*1.5 |
| 4110000145048 | 挡油盘 YD13 301 011 | SLINGER YD13 301 011 |
| 4110000145049 | 变速器铭牌09608-05080 | NAME PLATE 09608-05080 |
| 4110000145045 | 箱体(YD133) YD13 301 013 | HOUSING (YD133) YD13 301 013 |
| C2-4110000145 | 变速箱输入部件 | TRANSMISSION INPUT SHAFTS GROUP |
| 4110000145050 | 淋油管组件YD13 202 001 | HOSE SUBASSEMBLY YD13 202 001 |
| 4110000076210 | 轴用挡圈0630 501 031 40*1.75 | RETAINING RING 0630 501 031 40*1.75 |
| 4110000145051 | 调整垫片 40*50*S 0769 120 527 | REGULATING SHIM 40*50*S 0769 120 527 |
| 4110000145052 | 挡圈 SP90 0630 503 012 | RING SNAP SP90 0630 503 012 |
| 4110000145053 | 轴承40*90*23 0750 116 157 | BEARING 40*90*23 0750 116 157 |
| 4110000145054 | 隔圈 4644 302 170 | BEARING SLEEVE 4644 302 170 |
| 4110000145055 | 螺栓锁片 4644 330 006 | LOCK SKIM 4644 330 006 |
| 4110000145056 | 压板4044 303 031 | PRESURE PLANGE4044 303 031 |
| 4110000145057 | 输入法兰 YD13 302 022 | INPUT FLANGE YD13 302 022 |
| 4110000145058 | 骨架油封 60*80*10 0634 309 663 | OIL SEAL 60*80*10 0634 309 663 |
| 4110000145059 | 输入端盖 YD13 302 007 | INPUT CAP YD13 302 007 |
| 4110000145060 | 输入轴 YD13 302 015 | INPUT SHAFT YD13 302 015 |
| 4110000145061 | 输入齿轮 YD13 302 008 | INPUT GEAR YD13 302 008 |
| C3-4110000145 | 变速箱输出部件 | TRANSMISSION OUTPUT SHAFTS GROUP |
| 4110000145062 | 螺栓锁片 1269 302 164 | BOLT RETAINER 1269 302 164 |
| 4110000076170 | 压板4620303247 | PRESS PLATE 4620 303 247 |
| 4110000076366 | 轴用密封圈0750 111 116 WTB,90*120*13 | STAND-BY DRIVE SHAFT 0750 111 116 WTB,90*120*13 |
| 4110000145063 | 孔用挡圈 0630 502 048 H | RING 0630 502 048 H |
| 4110000076268 | 调整垫片0769120338 | REGULATING SHIM 0769 120 338 |
| 4021000023 | 滚动轴承GB276-6311 | BEARING GB276-6311 |
| 4110000145064 | 输出轴 YD13 303 013 | OUTPUT SHAFT YD13 303 013 |
| 4110000145065 | 轴套 0730 061 321 | SHAFT SLEEVE 0730 061 321 |
| 4110000145066 | 输出齿轮 YD13 303 025 | OUTPUT GEAR YD13 303 025 |
| 4110000145067 | 轴承座 | BEARING BRACKET |
| 4021000097 | 轴承GB283-NJ213ECJ/C3 | BEARING GB283-NJ213ECJ/C3 |
| 4110000076309 | 调整垫片 1204 308 062 | REGULATING SHIM 1204 308 062 |
| 4110000145081 | 输出法兰YD13 303 029 | OUTPUT FLANGE YD13 303 029 |
