Description

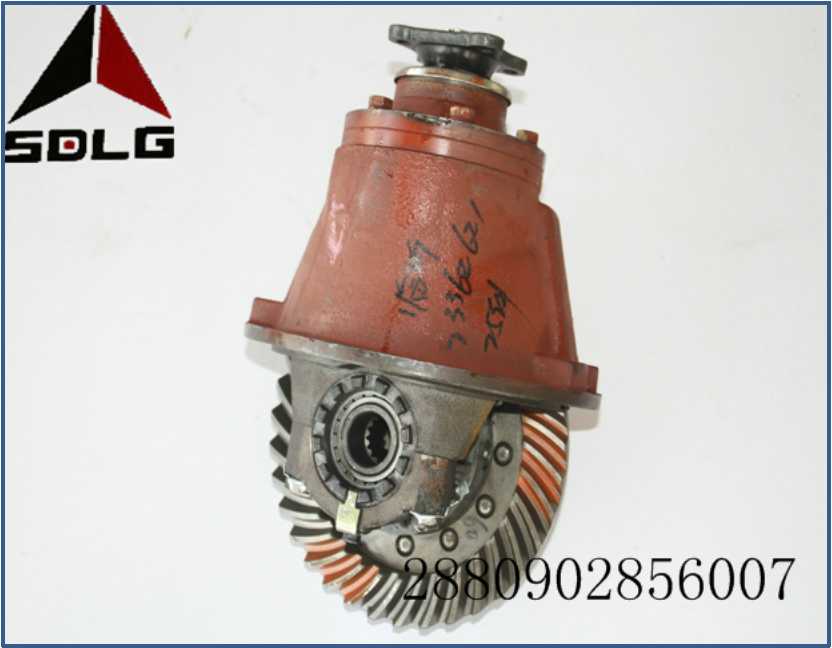

2880902856007 FRONT FINAL DRIVE ASSEMBLY ZL15F.2.5A
1 28809028560071 前主减速器总成 ZL15F.2.5A FRONT FINAL DRIVE ASSEMBLY ZL15F.2.5A Y 1
2 4011000845 螺栓GB5782-M10*45EpZn-10.9 BOLT GB5782-M10*45EpZn-10.9 N 4
3 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 12
4 4012000022 螺栓GB5783-M10*25-10.9 BOLT GB5783-M10*25-10.9 N 8
5 28809028560081 通气塞总成 ZL15F.2.3-4 EXHAUST PLUG ASSEMBLY ZL15F.2.3-4 Y 1
6 28809028560091 螺塞 ZL15F.2-10A PLUG SCREW ZL15F.2-10A Y 2
7 4015000090 垫圈JB982-20 WASHER JB982-20 N 2
8 28809028560101 前桥焊合 ZL15G.2.3A FRONT AXLE WELD ZL15G.2.3A Y 1
9 4011000842 螺栓GB5786-M16*1.5*55EpZn-10.9 BOLT GB5786-M16*1.5*55EpZn-10.9 N 8
10 4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn N 8
11 28809028560111 钳盘制动器 ZL15.5.0 DISC BRAKE ASSEMBLY ZL15.5.0 Y 2
12 28809028560121 轮边减速总成 WHEEL-END REDUCTOR ASSEMBLY N 2
1 7200000198 外钳ZL15.5-1 EXTERNAL PLIERS ZL15.5-1 N 1
2 7200000182 活塞408113A PISTON 408113A Y 2
3 7200000184 矩形密封圈408112 SEALING RING 408112 Y 2
4 7200000176 防尘罩408110 COVER ASSY, DUST 408110 Y 2
5 7200000185 卡圈408111 CLOSING RING 408111 Y 2
6 7200000208 制动片ZL15.5.1 BRAKE SHOE ZL15.5.1 Y 2
7 4030000011 O形圈GB1235-20*2.4 O-RING GB1235-20*2.4 Y 2
8 7200000192 内钳ZL15.5-2 INTERNAL PLIERS ZL15.5-2 Y 1
9 4015000029 垫圈GB93-18-65Mn WASHER GB93-18-65Mn N 4
10 7200000187 螺栓ZL15.5-3 BOLT ZL15.5-3 Y 4
11 7200000171 垫圈408124 WASHER 408124 Y 2
12 7200000183 接头408104 JOINT 408104 Y 2
13 7200000179 放气嘴408103 VENT NOZZLE SEAT 408103 Y 2
14 4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn N 2
15 7200000189 螺栓销408114 BOLT PIN 408114 Y 2
1 28809028560351 螺塞M16*1.5 ZL10.4AB-69 PLUG SCREW M16*1.5 ZL10.4AB-69 Y 2
2 4015000141 垫圈JB982-16 WASHER JB982-16 N 2
3 7200000181 盖ZL15F.2-6 COVER ZL15F.2-6 Y 2
4 4011000754 螺栓GB5783-M8*20EpZn-10.9 BOLT GB5783-M8*20EpZn-10.9 N 16
5 4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn N 16
6 28809028560241 挡销ZL15F.2-4 PIN ZL15F.2-4 Y 2
7 4016000262 销GB119.2-12*32 PIN GB119.2-12*32 N 4
8 4011000124 螺栓GB5786-M12*1.25*35EpZn-10.9 BOLT GB5786-M12*1.25*35EpZn-10.9 N 16
9 4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn N 16
10 7200000201 行星架ZL15F.2.2-4 PLANET CARRIER ZL15F.2.2-4 Y 2
11 7200000159 O形圈305*3.5 ZL15F.2-7 O-RING 305*3.5 ZL15F.2-7 Y 2
12 4015000020 挡圈GB894.1-35-65Mn RETAINER RING GB894.1-35-65Mn N 2
13 4090000002 滚针GB309-3*29.8-GCr15 ROLLING NEEDLE GB309-3*29.8-GCr15 Y 174
14 4090000126 钢球GB308-5-GCr15 STEEL BALL GB308-5-GCr15 N 6
15 7200000204 行星轮轴ZL15F.2.2-2 PLANET GEAR SHAFT ZL15F.2.2-2 Y 6
16 7200000202 行星轮ZL15F.2.2-1 PLANET ZL15F.2.2-1 Y 6
17 7200000203 行星轮挡圈ZL15F.2.2-3 PLANET RETAINER RING ZL15F.2.2-3 Y 12
18 28809028560191 长半轴Φ35*813.8 ZL15F.2-3A LONG AXLE SHAFT Φ35*813.8 ZL15F.2-3A Y 1
