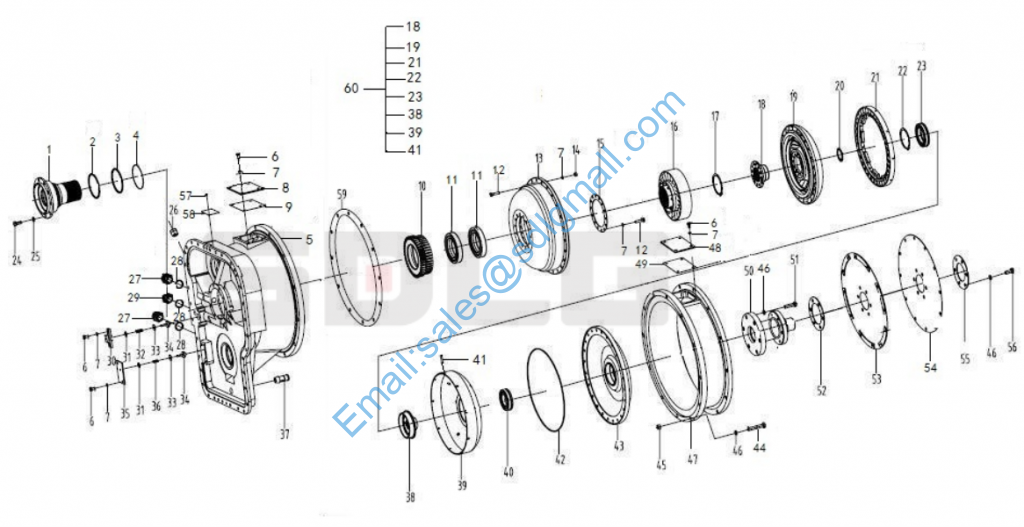

LG944MSK 4110000160 液力变矩器YJSW315-2A(370804) Torque converter

1 4110000011081 导轮座YB315Z5-13A Seat Y 1

2 4110000011082 密封环YB315Z5-33 Sealing ring Y 1

3 4110000011083 密封环YB315Z5-12A Sealing ring Y 1

4 4110000011084 弹性圈YB315Z5-25 Spring washer N 1

5 4110000011085 壳体YB315Z5-08D Housing Y 1

6 4110000011086 螺栓M8*16 01010-50816 Screw Y 12

7 4110000011087 垫圈801602-10825 Washer Y 50

8 4110000011088 垫板YB315Z5-06D Spacer Y 1

9 4110000011089 胶垫YB315Z5-07D Gasket Y 1

10 4110000011090 齿轮YB315Z5-11B Gear Y 1

11 4021000076 滚动轴承GB276-6017 Ball bearing Y 2

12 4110000160075 螺栓M8*35 01010-60835 Screw Y 38

13 4110000160046 泵轮1YJSW315-2A-00007 Impeller Y 1

14 4110000518002 螺母01580-00806 M8 Nut Y 24

15 4110000011094 压紧垫片YB315Z5-22A Washer Y 1

16 4110000160040 导轮1YJSW315-2A-00006 Stator Y 1

17 4110000518004 挡圈04064-08530 85 Retaining ring Y 1

18 4110000160076 Ⅱ涡轮毂YJSW315-2A-11001-2 Hub N 1

19 4110000160077 Ⅱ涡轮YJSW315-2A-11001-1 Turbine N 1

20 4110000011096 调整垫YB315Z5-30/31/32 Washer Y 1

21 4110000160078 Ⅰ涡轮YJSW315-2A-10001 Turbine N 1

22 4110000011125 挡圈52 YB315Z5.1-5 Retaining ring Y 1

23 4021000155 轴承6013 Bearing Y 1

24 4011000663 螺栓GB21-M10*25EpZn-8.8 Bolt Y 9

25 4110000011097 垫圈10 01602-11030 Washer Y 9

26 4110000359052 接头1YB315Z5-10L Nipple Y 1

27 4110000011098 管接头YB315Z5-14S Nipple Y 2

28 4015000209 YB315Z5-09组合密封垫圈30 Sealing washer Y 3

29 4110000359015 螺塞1YB315Z5-15L① Plug Y 1

30 4110000011100 阀盖YB315Z5-17A Bracket Y 1

 31 4110000011107 调压垫YB315Z5-28.29 Washer Y 1

32 4110000011101 弹簧YB315Z5-18A Spring Y 1

33 4110000011102 调压垫YB315Z5-16.21 Washer Y 1

34 4110000011103 阀杆YB315Z5-26A Valve rod Y 2

35 4110000011105 压板YB315Z5-19A Anchor plate Y 1

36 4110000011106 弹簧YB315Z5-20 Spring Y 1

37 4110000011129 管接头YB315Z5-24K Nipple Y 1

38 4110000518010 涡轮毂YJSW315-6C-12001 Turbo housing kit N 1

39 4110000160079 涡轮罩YJSW315-6C-12002 Cover N 1

40 4021000018 滚动轴承GB276-6210 Ball bearing Y 1

41 4110000011134 销YB315Z5.1-4A Pin N 9

42 4030000465 PO形圈GB3452.1-355*3.55 O-ring Y 1

43 4110000194001 罩轮YJSW315-2A-00002 Cover Y 1

44 4110000194007 螺栓M12*70-01010-51270 Screw Y 12

45 4110000194006 螺母M12-01580-11210 Nut Y 12

46 4110000217060 垫圈01602-11236 12 Washer N 24

47 4110000160056 中节1YJSW315-2A-00001 Flange Y 1

48 4110000194008 盖板YJSW315-2A-00004 Cover plate Y 1

49 4110000194009 垫YJSW315-2A-00005 Sealing ring Y 1

50 4110000160059 过渡轴1YJSW315-2A-20000 Shaft Y 1

51 4110000160080 螺栓M12*45 01010-61245 Screw Y 6

52 4110000011113 调整垫YB315Z5-34 Washer N 1

53 4110000011114 弹性板总成YJSW315-20000 Plate Y 1

54 4110000011115 弹性板YJSW315-20001 Plate Y 1

55 4110000011116 圆垫板YB315Z5-04 Shim Y 1

56 4110000160081 螺栓M12*30 01010-61230 Screw Y 6

57 7200000846 铆钉3*6 04418-03060 Rivet Y 4

58 4110000160082 铭牌YJSW315-2A-BP Decal Y 1

59 4110000011118 衬垫YB315Z5-05 Gasket Y 1

60 4110000160072 涡轮组件1YJSW315-2A-10000 Turbine Y 1
