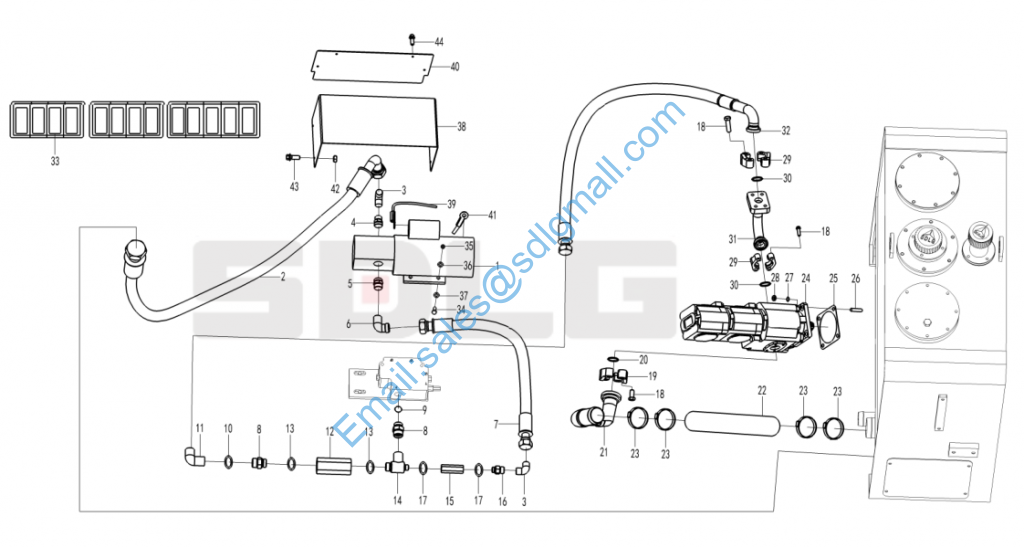

LG944MSK 2919001302 转向泵总成 Steering pump system

1 4120006056 应急转向泵总成LG19-ZXB-03 Gear pump Y 1

2 4041000857 软管LGB128-006150 Hose Y 1

3 29210007691 直角组合接头 Nipple Y 2

4 4190000144 接头GE15L3/4UNFOMDA3C Nipple Y 1

5 4190000206 接头GE18L3/4UNFOMDA3C Nipple Y 1

6 29120006551 组合直角接头 Nipple Y 1

7 4041000899 软管LGB164-012195 Hose Y 1

8 4041000188 直接头LGB120-03028 Nipple Y 2

9 4041000779 O形圈LGB168-12331 O-ring Y 1

10 4030000241 O形圈GB3452.1-20.0*1.80G O-ring Y 1

11 4041001262 组合接头LGB143-03019 Nipple Y 1

12 4120002643 单向阀S15A22 Check valve Y 1

13 4030000062 垫圈JB1002-27-T2 Washer Y 2

14 29190009381 三通接头 Three-way nipple Y 1

15 4120001456 单向阀S8A12 Check valve Y 1

16 4041000095 直接头LGB120-02218 Nipple Y 1

17 4030000058 垫圈JB1002-18-T2 Washer Y 2

18 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 12

19 4041000056 分体法兰LGB117-312550 Flange half Y 1

20 4030000028 O形圈GB3452.1-36.5*3.55G O-ring Y 1

21 29190004051 转向泵吸油钢管 Pipe Y 1

22 4090000043 吸油胶管 HG4-763-45*450 Hose assembly Y 1

23 4017000007 喉箍JB8870-d60 Clamp Y 4

24 4120000866 转向变速双联泵CBGj2063/2040 Gear pump Y 1

25 29110000041 泵用密封垫 Gasket N 1

26 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4

27 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4

28 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4

29 4041000026 分体法兰LGB117-310491 Flange half Y 2

30 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

31 29190004121 转向泵出油钢管 Pipe Y 1

32 29190013061 转向泵出油胶管 Hose Y 1

33 4130000500 应急转向开关JK931-01YJ Rocker switch Y 1

34 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 4

35 4013000007 螺母GB6170-M10EpZn-8 Nut Y 4

36 4015000025 垫圈GB93-10-65Mn Spring washer Y 4

37 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4

38 29190013031 护罩 Protecting plate Y 1

39 29370009351 应急转向泵电源线 Wiring harness Y 1

40 29190013041 盖板 Protecting plate Y 1

41 28370000051 电瓶线P50*350 Battery cable Y 1

42 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4

43 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 4

44 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
