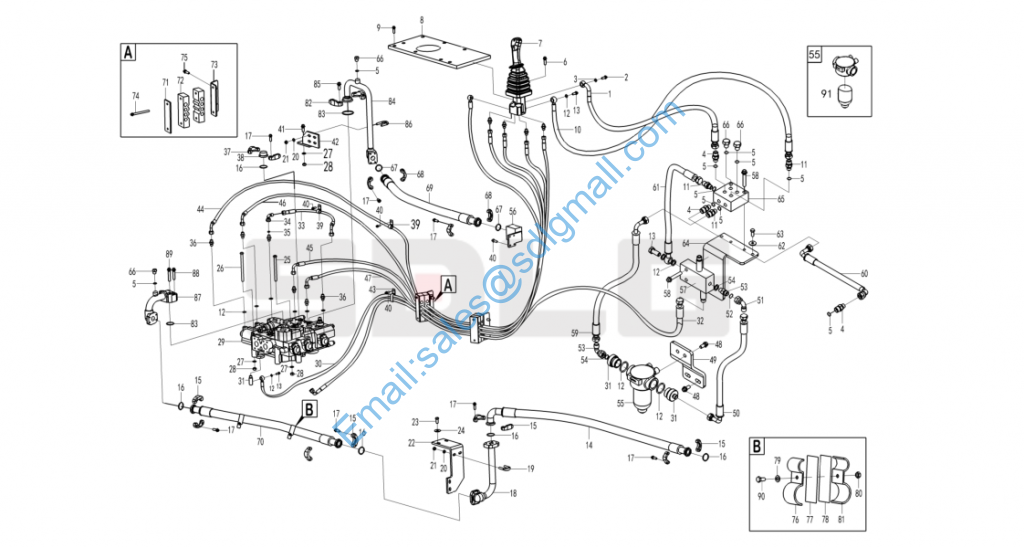

LG944MSK 2912002600 液压操纵总成 Hydraulic control system

1 29120025281 大先导回油胶管 Hose Y 1

2 4011000366 螺栓JB999-M18*1.5*40EpZn-35 Bolt Y 1

3 29120015221 垫圈 Washer Y 2

4 4041000150 直接头LGB120-01814 Nipple Y 2

5 4041000767 O形圈LGB168-11124 O-ring Y 9

6 4011000488 螺栓GB16674-M10*16EpZn-8.8 Bolt Y 4

7 4120002027 先导阀总成DXS-00 Control lever Y 1

8 29120015911 操纵箱盖PS Cover Y 1

9 4014000058 螺钉GB70.1-M6*20EpZn-8.8 Screw Y 4

10 29120025291 大先导进油胶管 Hose Y 1

11 4041000604 直接头LGB120-01614 Nipple Y 3

12 29120014931 垫圈 Washer Y 18

13 4011000344 螺栓JB999-M14*1.5*32EpZn-35 Bolt Y 3

14 4041000532 软管LGB162-012105 Hose assembly Y 1

15 4041000056 分体法兰LGB117-312550 Flange half Y 4

16 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 6

17 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 32

18 29120019351 回油钢管 Pipe Y 1

19 4011000556 U形螺栓JB/ZQ4321-33Zn-Q235A.F U-bolt Y 2

20 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 6

21 4013000007 螺母GB6170-M10EpZn-8 Nut Y 6

22 29120019271 固定板 Anchor plate Y 1

23 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 2

24 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 2

25 4011000056 螺栓GB5782-M12*145EpZn-8.8 Bolt Y 1

26 4011000057 螺栓GB5782-M12*165EpZn-8.8 Bolt Y 2

27 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 5

28 4013000011 螺母GB6170-M12EpZn-8 Nut Y 5

29 4120002304 多路阀D32A-17.5 Control valve Y 1

30 29120016301 先导胶管（2c） Hose assembly Y 1

31 29120007651 接头 Nipple Y 2

32 4041001061 软管LGB128-004250 Hose assembly Y 1

33 4041001189 软管LGB125-003055 Hose assembly Y 1

34 4041001047 组合接头LGB143-01406 Nipple Y 1

35 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 1

36 29120015401 接头 Nipple Y 10

37 4041000027 分体法兰LGB117-312551 Flange half Y 2

38 4041000716 防尘盖LGB134-01255 Dust cover Y 2

39 29120007671 管夹 Clamp Y 2

40 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 8

41 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 2

42 29120011391 固定支架 Bracket Y 1

43 26370001961 管夹 Clamp Y 1

44 29120016311 先导胶管（2B-a2-A2） Hose assembly Y 1

45 29120016321 先导胶管（2A-b2-B2） Hose assembly Y 1

46 29120016331 先导胶管（1B-a1-A1） Hose assembly Y 1

47 29120016341 先导胶管（1A-b1-B1） Hose assembly Y 1

48 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 4

49 29120016021 固定板 Anchor plate Y 1

50 4041000576 软管LGB125-004065 Hose assembly Y 1

51 29120015081 接头 Nipple Y 2

52 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

53 4041001023 组合接头LGB143-01608 Nipple Y 3

54 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 3

55 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

56 29120004041 二通块 Valve block Y 1

57 4120005063 压力选择阀SF8-D Valve Y 1

58 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 4

59 4041000613 软管LGB124-004080 Hose assembly Y 1

60 29120010801 过渡块回油管 Hose assembly Y 1

61 29120011471 选择阀回油管 Hose assembly Y 1

62 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

63 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 2

64 29120010771 固定板 Anchor plate Y 1

65 29120010791 过渡块 Block Y 1

66 4041000774 螺塞LGB135-01422 Plug Y 4

67 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 2

68 4041000043 分体法兰LGB117-310490 Flange half Y 2

69 4041000731 软管LGB107-010098 Hose assembly Y 1

70 4041001301 软管LGB163-012106 Hose assembly Y 1

71 29120016351 固定板 Anchor plate Y 2

72 29120016741 管夹 Clamp Y 4

73 29120016951 固定板 Anchor plate Y 2

74 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 4

75 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4

76 29120015431 管夹 Clamp Y 2

77 4041001188 缓冲套LGB123-0219 Rubber sleeve Y 2

78 4041000869 缓冲套LGB123-0740 Rubber sleeve Y 2

79 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 2

80 4013000033 螺母GB6170-M8EpZn-8 Nut Y 2

81 29120015711 管夹 Clamp Y 2

82 4041000010 分体法兰LGB117-314651 Flange half Y 1

83 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 2

84 29120010691 多路阀进油钢管 Pipe Y 1

85 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4

86 4041000958 U形螺栓LGB159-03040 U-bolt Y 1

87 29120016541 多路阀回油钢管 Pipe Y 1

88 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 2

89 4011000793 螺栓GB16674-M12*65EpZn-8.8 Screw Y 2

90 4011000751 螺栓GB16674-M8*25EpZn-10.9 Screw Y 1

91 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
