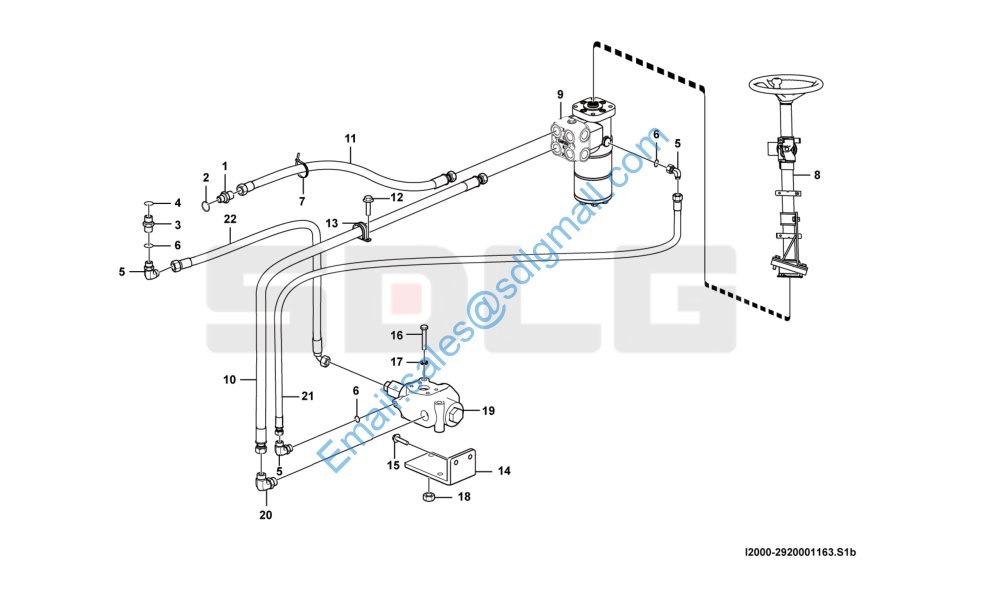

LFT18 2920001163 Steering gear system

1 4041000187 直接头LGB120-02622 Nipple Y 1

2 4041000771 O形圈LGB168-11924 O-ring Y 1

3 4041000133 直接头LGB120-01414 Nipple Y 1

4 4041000767 O形圈LGB168-11124 O-ring Y 1

5 4041001047 组合接头LGB143-01406 Nipple Y 3

6 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 3

7 4190001833 扎丝RTGB-300ST Cable tie Y 6

8 29200012161 转向柱部装总成 Steering column N 1

9 29200011181 转向器Xcel80-1000总成 Steering unit assembly N 1

10 4041002509 软管LGB127-410145 Hose assembly Y 1

11 4041002510 软管LGB124-410170 Hose assembly Y 1

12 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 1

13 4041002418 管夹LGB169-B35*12.5 Clamp Y 1

14 29200010191 板 Plate Y 1

15 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2

16 4011001335 螺栓GB5782-M12*130flZnyc-8.8-480 Screw Y 2

17 29200010471 平垫圈-12 Washer Y 4

18 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 4

19 29200011101 优先阀VLH-240S-16总成 Priority valve assembly N 1

20 29200009771 组合接头 Elbow nipple Y 1

21 4041002473 软管LGB127-403160 Hose assembly Y 1

22 4041002825 软管LGB126-003095 Hose assembly Y 1
