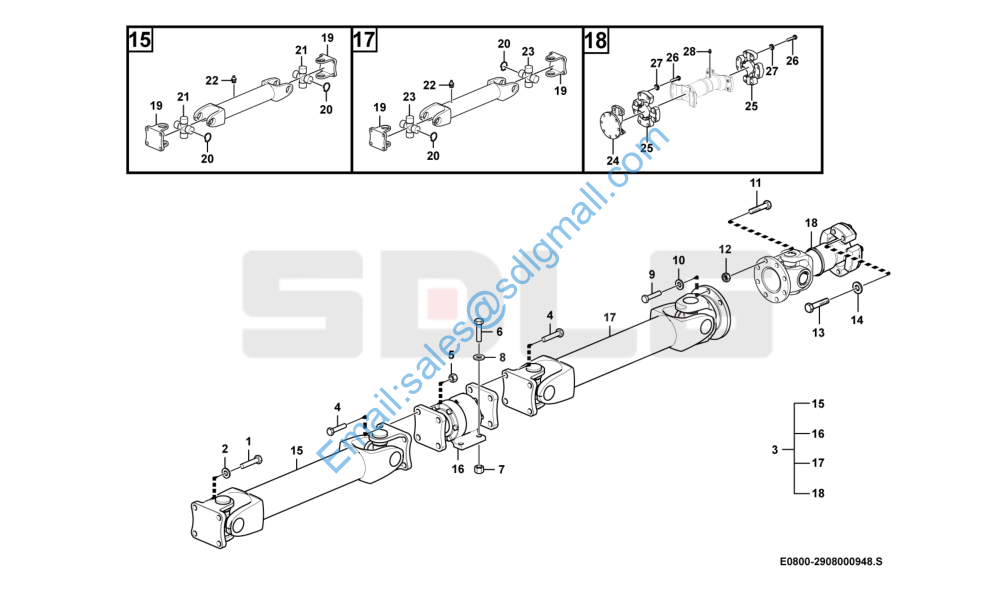

LFT18 2908000948 Propeller shaft

1 4011001363 螺栓GB5786-M141.540flZnyc-10.9-480 Bolt Y 4
2 4015000435 垫圈GB97.1-14flZnyc-300HV-480 Washer Y 4
3 29080009581 LFT18传动轴总成 Propeller shaft N 1
4 4011001398 螺栓GB5785-M141.555flZnyc-10.9-480 Screw Y 8
5 4013000399 螺母GB889.2-M141.5flZnyc-10-480 Nut Y 8 6 4011001395 螺栓GB5785-M161.565flZnyc-10.9-480 Screw Y 4 7 4013000402 螺母GB889.2-M161.5flZnyc-10-480 Nut Y 4
8 4015000436 垫圈GB97.1-16flZnyc-300HV-480 Washer Y 4
9 4011001418 螺栓GB5786-M141.545flZnyc-10.9-480 Bolt Y 4
10 4015000474 垫圈GB1230-14flZnyc-45-480 Washer Y 4
11 4011001307 螺栓GB5786-M121.2540flZnyc-10.9- Screw Y 8
12 4013000375 螺母GB889.2-M121.25flZnyc-10-480 Nut Y 8 13 4011001293 螺栓GB5785-M121.2550flZnyc-8.8-480 Screw Y 4 14 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 4 15 4110002182 中间传动轴 Propeller shaft N 1 16 4110002185 中间支撑 Propeller shaft Y 1 17 4110003070 传动轴C52700.5 Propeller shaft Y 1
18 4110002246 传动轴-276.5 Propeller shaft Y 1
19 4110002066002 突缘叉1491.707-2201062-J Link yoke Y 4
20 4110002515002 卡簧1491.707-2201063 Lock ring Y 16
21 4110002097001 万向节十字轴0125-52133 Spider N 2
22 4110002086003 油杯M6 JB/T7940.1-1995 Grease cup N 2
23 4110002923001 十字轴总成0125-52133-T Spider Y 2
24 4110002246001 突缘叉4110002246-01 Link yoke Y 1
25 2908000753001 万向节十字轴总成G5-7126 Spider Y 2
26 4110001950008 螺栓 1/2″20UNF Screw Y 12
27 4120001054234 垫圈GB93-87 12 Washer Y 12
28 4120000601101 油杯M10X1(直通式)JB/T7940.1-1995 Cup N 1
