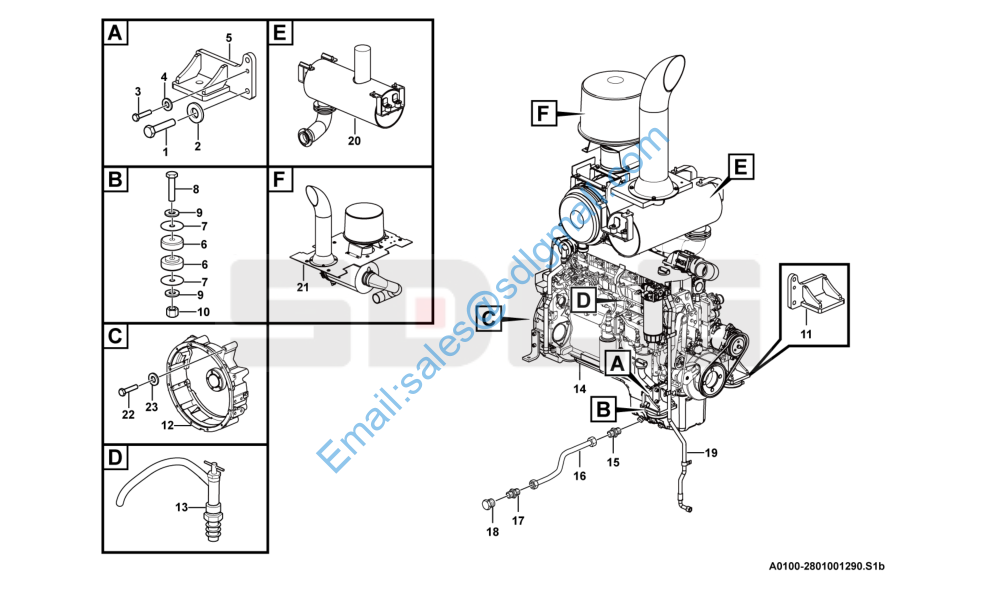

G9190 2801001290 发动机总成 Engine system

1 4011000564 螺栓GB5783-M16*45EpZn-10.9 Screw Y 4

2 4015000181 垫圈GB97.1-16EpZn-300HV Washer Y 4

3 4011000596 螺栓GB5783-M12*35EpZn-10.9 Bolt Y 2

4 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

5 28010012941 发动机左支腿 Engine anchorage Y 1

6 4110001528 减震器CBB120 Absorber Y 4

7 29010024431 垫圈124 Washer Y 4

8 4011001091 螺栓GB5785-M20*1.5*140EpZn-8.8 Screw Y 2

9 4015000176 垫圈GB97.1-20EpZn-300HV Washer Y 4

10 4013000160 螺母GB889.2-M20*1.5EpZn-8 Lock nut Y 2

11 28010012951 发动机右支腿 Engine anchorage Y 1

12 28010013061 飞轮壳部件 Flywheel N 1

13 28010013041 暖风管路安装 Heater N 1

14 11222283 发动机SD70B Engine Y 1

15 4120004381 接头1CM-22-18WD Joint Y 1

16 4041001042 软管LGB124-006070 Hose assembly Y 1

17 4120003522 过板接头6C-22LN Nipple Y 1

18 4120003220 堵头9C-22Z Plug Y 1

19 28010012921 供油系统 Fuel supply N 1

20 28010012931 消声器总成 Silencer N 1

21 28010012911 发动机进气模块 Assembly compound N 1

22 4011000763 螺栓GB5783-M10*30EpZn-10.9 Bolt Y 4

23 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4
