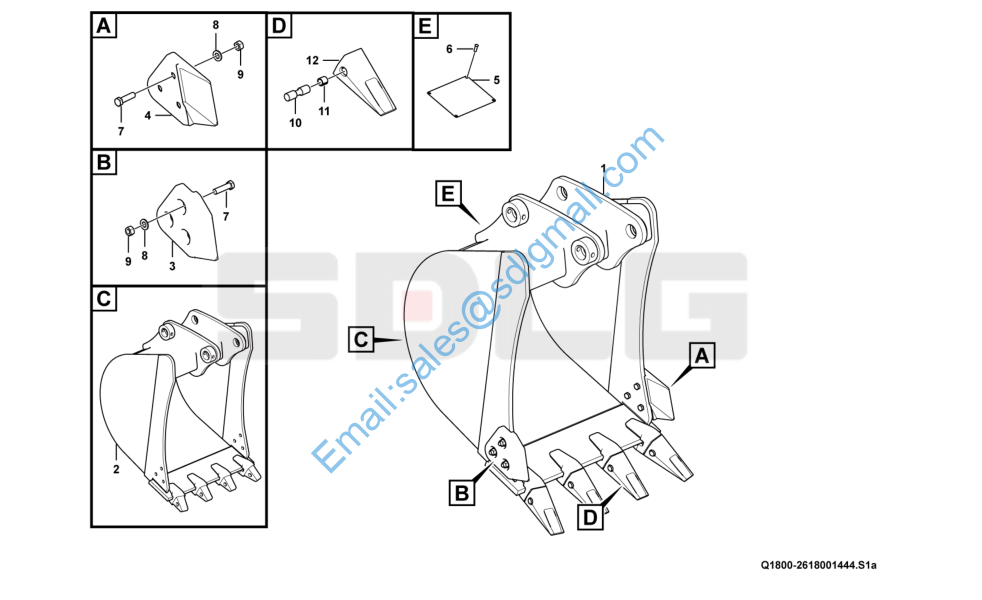

B876F Q1800-2618001444 铲斗总成 Bucket

1 26180014441 铲斗总成 Bucket Y 1

2 26180014451 铲斗 Bucket body N 1

3 26180003001 左侧刀片 Side cutter Y 1

4 26180003041 右侧刀片 Side cutter Y 1

5 11219080 名牌 Name plate N 1

6 4019000072 铆钉GB12618.1-4*10-10 Rivet Y 4

7 4011000843 螺栓GB5786-M12*1.25*45EpZn-10.9 Screw Y 6

8 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 6

9 4013000072 螺母GB889.2-M12*1.25EpZn-10 Lock nut Y 6

10 26180000191 固定销 Retaining pin N 4

11 26180000201 弹套 Retaining spring N 4

12 4190001830 斗齿 Bucket tooth Y 4
