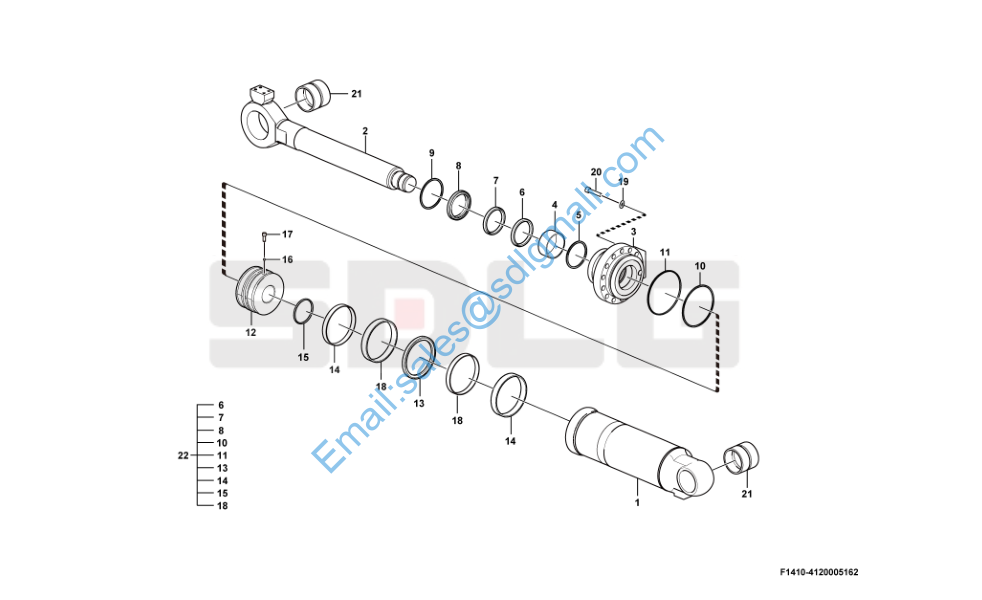

L978F 转斗油缸（3713CH） Tilt cylinder F1410-4120005162

1 4120005162009 缸筒总成24A134950 Cylinder tube Y 1

2 4120005162010 活塞杆总成24A112800 Piston rod Y 1

3 4120005162011 缸盖24A170320 Cover Y 1

4 4120002417005 衬套24S2B0301 Bushing Y 1

5 4120003685002 钢丝挡圈24C001260 Retaining ring Y 1

6 4120002443104 斯特封24F911001 Sealing ring N 1

7 4120002443105 密封件-活塞杆24F411003 Sealing ring N 1

8 4120005997007 密封件-防尘 24D211002 Sealing ring N 1

9 4120004489006 钢丝挡圈-孔用24C001310 D130*2.5t Retaining ring Y 1

10 4120002443107 O型圈24K320011 Sealing ring N 1

11 4120005162012 挡圈-O形圈24M32100C Retaining ring N 1

12 4120005673006 活塞 24A180330 Piston Y 1

13 4120002443109 密封件-活塞24P421004 Sealing ring N 1

14 4120005162013 纳污环24N021015 Sealing ring N 1

15 4120005162014 O形圈24K310901 O-ring N 1

16 4090000168 钢球GB308-5-GCr6 Ball Y 1

17 4120004489009 内六角圆柱头螺钉24T508251 M8x25L Hex. socket screw Y 1

18 4120002443112 支承环24G221011 Sealing ring N 1

19 4120004488007 弹性垫圈24T401602 D16 Spring washer Y 1

20 4120005801012 螺钉-内六角圆柱头24T516555 M16*55L Screw Y 1

21 4120005673007 轴套 24C034030 Bushing Y 1

22 4120005162015 密封件包24A101780S Sealing kit Y 1
