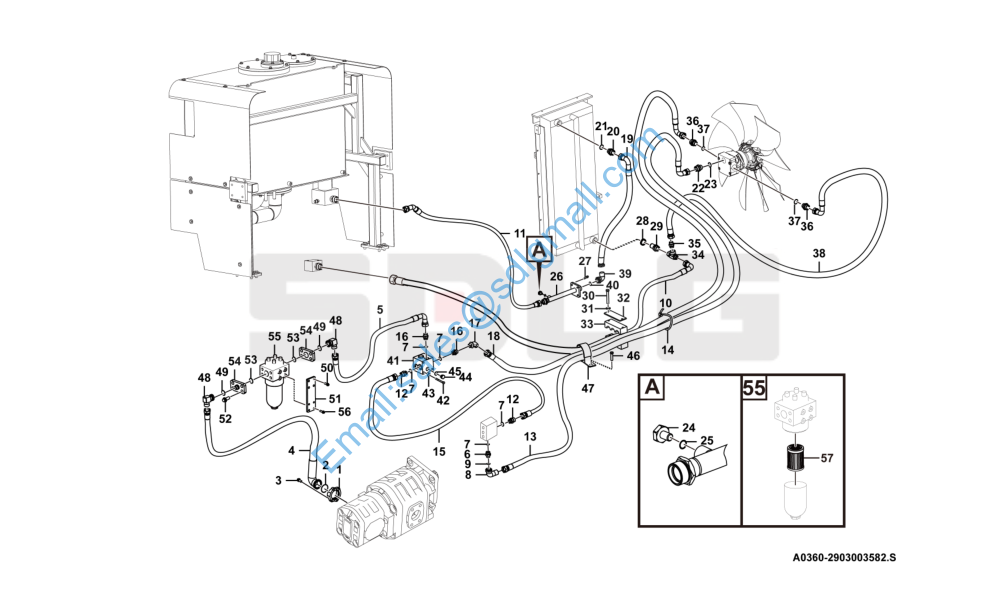

L978F 液压马达管路总成 Fan motor hydraulic system A0360-2903003582

1 4041000026 分体法兰LGB117-310491 Flange half Y 1

2 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 1

3 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4

4 29030021721 胶管 Hose Y 1

5 4041001797 软管LGB128-010180 Hose Y 1

6 4041001215 直接头LGB120-02228 Nipple Y 1

7 4041000779 O形圈LGB168-12331 O-ring Y 5

8 4041001156 组合接头LGB143-02213 Elbow nipple Y 1

9 4030000242 O形圈GB3452.1-12.5*1.80G O-ring Y 1

10 4041002105 软管LGB165-010255 Hose Y 1

11 4041001150 软管LGB166-014185 Hose assembly Y 1

12 4041000188 直接头LGB120-03028 Nipple Y 2

13 4041002106 软管LGB165-006335 Hose Y 1

14 4190000020 扎丝LG13-ZS4*250 Cable tie Y 10

15 4041002107 软管LGB164-012070 Hose Y 1

16 4041000796 直接头LGB120-02628 Nipple Y 2

17 4041001417 组合接头LGB143-12616 Nipple Y 1

18 4041002109 软管LGB128-010260 Hose Y 1

19 4041002108 软管LGB165-014107 Hose Y 1

20 4041001486 直接头LGB155-03036 Nipple Y 1

21 4030000211 O形圈GB3452.1-30.0*2.65G O-ring Y 1

22 29030014251 直接头UNF7 /16-M22 Nipple Y 1

23 4120003299 O形圈8.92*1.83 O-ring Y 1

24 4041000774 螺塞LGB135-01422 Plug Y 1

25 4041000767 O形圈LGB168-11124 O-ring Y 1

26 29030016651 过渡钢管 Pipe Y 1

27 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 4

28 4015000073 垫圈JB1002-30-T2 Washer Y 1

29 29190010601 M36-M30加高接头 Nipple Y 1

30 4011000311 螺栓GB5782-M10*135EpZn-8.8 Screw Y 2

31 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 2

32 29030016641 压板 Cover plate Y 1

33 29030017341 橡胶管夹 Rubber clamp Y 2

34 4120002158 三通接头EL28LOMDCF Three-way nipple Y 1

35 29030022721 变径接头RED2818LCF Nipple Y 2

36 29120012681 直通接头 Nipple Y 2

37 4030000090 O形圈GB3452.1-28.0*2.65G O-ring Y 2

38 4041000944 软管LGB127-010130 Hose Y 1

39 4041001211 组合接头LGB143-03625 Nipple Y 1

40 4030000504 O形圈GB3452.1-25.8*1.80G O-ring Y 1

41 4120002735 风扇散热控制阀组 Valve Y 1

42 4011000949 螺栓GB5782-M6*60EpZn-8.8 Bolt Y 3

43 4015000198 垫圈GB96.1-6EpZn-300HV Washer Y 3

44 29030013751 螺塞M33*2 Plug Y 1

45 4041001446 O形圈LGB168-02931 O-ring Y 1

46 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 1

47 4041002418 管夹LGB169-B35*12.5 Clamp Y 1

48 4041001006 组合接头LGB143-02616 Nipple Y 2

49 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 2

50 4011000479 螺栓GB16674-M12*30EpZn-8.8 Bolt Y 4

51 29030016131 过滤器固定板 Plate Y 1

52 4011000148 螺栓GB16674-M16*40EpZn-8.8 Bolt Y 8

53 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 2

54 29030022801 法兰接头 Nipple Y 2

55 4120004418 压力油过滤器PLF-H240*10F Oil filter Y 1

56 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 4

57 4120004418001 压力油过滤器滤芯LH0240D010BN/HC Filter insert Y 1
