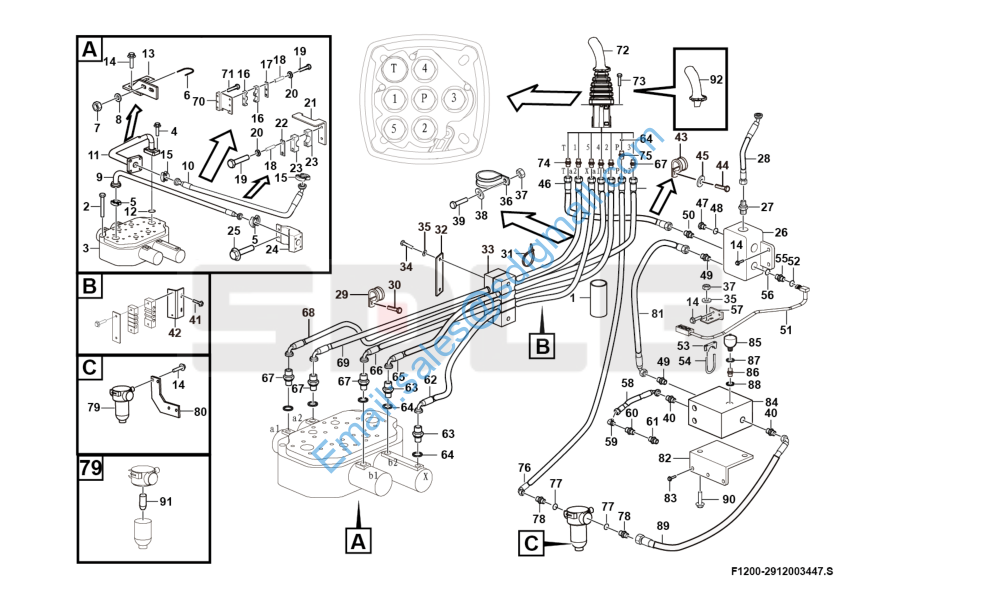

L978F 液压操纵总成 Hydraulic control system F1200-2912003447.

1 26310002061 自扎帆布套 Tarpaulin cover Y 2

2 4014000284 螺钉GB70.1-M12*90EpZn-8.8 Screw Y 3

3 4120002745 多路阀M1-32-02 Control valve Y 1

4 4014000084 螺钉GB70.1-M16*40EpZn-8.8 Screw Y 4

5 4120001212 法兰总成M2M2HK-24 Flange half Y 2

6 4011000737 U形螺栓JB/ZQ4321-51Zn-Q235A U-bolt Y 1

7 4013000368 螺母GB6170-M12flZnyc-8-480 Nut Y 2

8 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 2

9 4120002961 胶管F7316A6N242424-2030 Hose assembly Y 1

10 4120002983 胶管F4811517323232-3020 Hose assembly Y 1

11 29120018031 主阀出油钢管 Hose assembly Y 1

12 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 1

13 29120018071 主阀出油钢管支架 Bracket Y 1

14 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 14

15 4190000354 法兰总成M1M1HK-32 Flange half Y 2

16 29120018081 管夹 Clamp Y 2

17 29120018091 压板 Plate Y 1

18 29120018101 支撑管 Pipe Y 5

19 4011000532 螺栓GB16674-M10*110EpZn-8.8 Screw Y 5

20 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 5

21 29120018111 回油管支架 Bracket Y 1

22 29120018121 压板 Plate Y 1

23 29120018131 管夹 Clamp Y 2

24 29120018141 合流块 Block Y 1

25 4011001468 螺栓GB16674.1-M14*35flZnyc-8.8-480 Bolt Y 2

26 29120018191 回油块 Block Y 1

27 4120002985 接头GEO28LMOMDCF Nipple Y 1

28 4120002984 胶管F481CACE282816-700 Hose assembly Y 1

29 29120007671 管夹 Clamp Y 6

30 4011001297 螺栓GB16674.1-M8*16flZnyc-8.8-480 Screw Y 9

31 4190000020 扎丝LG13-ZS4*250 Cable tie Y 15

32 29120016351 固定板 Anchor plate Y 2

33 29120016741 管夹 Clamp Y 4

34 4011001378 螺栓GB5782-M8*80flZnyc-8.8-480 Bolt Y 4

35 4015000430 垫圈GB97.1-8flZnyc-300HV-480 Washer Y 9

36 29030000041 管夹 Clamp Y 1

37 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 8

38 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 1

39 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 1

40 4120002237 接头GEO10LMOMDCF Nipple Y 2

41 4011001302 螺栓GB16674.1-M10*16flZnyc-8.8-480 Screw Y 2

42 29120018221 先导管支架 Bracket Y 1

43 26370001971 管夹 Clamp N 1

44 4011001268 螺栓GB5783-M10*16flZnyc-8.8-480 Screw Y 1

45 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 1

46 4120002962 胶管F481CACA121206-3000 Hose assembly Y 1

47 4040000020 螺塞LGB135-01622 Plug Y 1

48 4041000780 O形圈LGB168-11324 O-ring Y 1

49 4030000403 接头GEO18LMOMDA3C Nipple Y 2

50 4120002963 接头GEO12LMOMDCF Nipple Y 1

51 29120024561 回油钢管 Pipe Y 1

52 4030000501 O形圈GB3452.1-15.0*1.80G O-ring Y 1

53 4041001240 底板LGB160-2028 Bracket Y 1

54 4041001239 U形螺栓LGB159-12028 U-bolt Y 1

55 4041000796 直接头LGB120-02628 Nipple Y 1

56 4041000779 O形圈LGB168-12331 O-ring Y 1

57 29120018271 回油钢管支架 Bracket Y 1

58 4120001467 胶管F481CACF101005-1340 Hose assembly Y 1

59 4190000176 过渡接头EW10LOMDA3C Nipple Y 1

60 4120002964 变径接头RED22/10LOMDCF Nipple Y 1

61 4120001773 接头GE22L11/16UNOMDA3C Nipple Y 1

62 4120002965 胶管F481CACF101005-3970 Hose assembly Y 1

63 29120019191 加高接头 Nipple Y 2

64 4030000698 矩形密封圈ED14X1.5X-16.5*11.6*1.5 Sealing Y 3

65 4120002966 胶管F481CACF101005-4110 Hose assembly Y 1

66 4120002967 胶管F481CACF101005-4030 Hose assembly Y 1

67 4190000180 接头GE10LREDOMDA3C Nipple Y 8

68 4120002968 胶管F481CACF101005-4300 Hose assembly Y 1

69 4120002969 胶管F481CACF101005-4380 Hose assembly Y 1

70 29120018991 支架 Bracket Y 1

71 4011001350 螺栓GB16674.1-M10*60flZnyc-8.8-480 Screw Y 3

72 4120002959 先导阀总成5THF6E-06-2Y Control lever Y 1

73 4011001275 螺栓GB16674.1-M6*16flZnyc-8.8-480 Screw Y 4

74 4190000362 接头GE12LR1/4EDOMDA3C Nipple Y 1

75 26120002421 过渡接头 Nipple Y 1

76 4120001487 胶管F481CACF101005-1700 Hose assembly Y 1

77 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

78 29120015081 接头 Nipple Y 2

79 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

80 29120016021 固定板 Anchor plate Y 1

81 4120002970 胶管F481CACF181808-1600 Hose assembly Y 1

82 29120018291 先导控制阀支架 Bracket Y 1

83 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 3

84 4120002734 先导控制阀组 Valve Y 1

85 4120002830 蓄能器ELM0.75 Accumulator Y 1

86 29120020951 直接头 Nipple Y 1

87 4030000097 O形圈GB3452.1-23.6*2.65G O-ring Y 1

88 4041000771 O形圈LGB168-11924 O-ring Y 1

89 4120002352 胶管F481CACA101005-700 Hose assembly Y 1

90 4014000173 螺钉GB70.1-M10*110EpZn-8.8 Screw Y 2

91 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
92 4120002959001 控制杆 Control lever N 1
