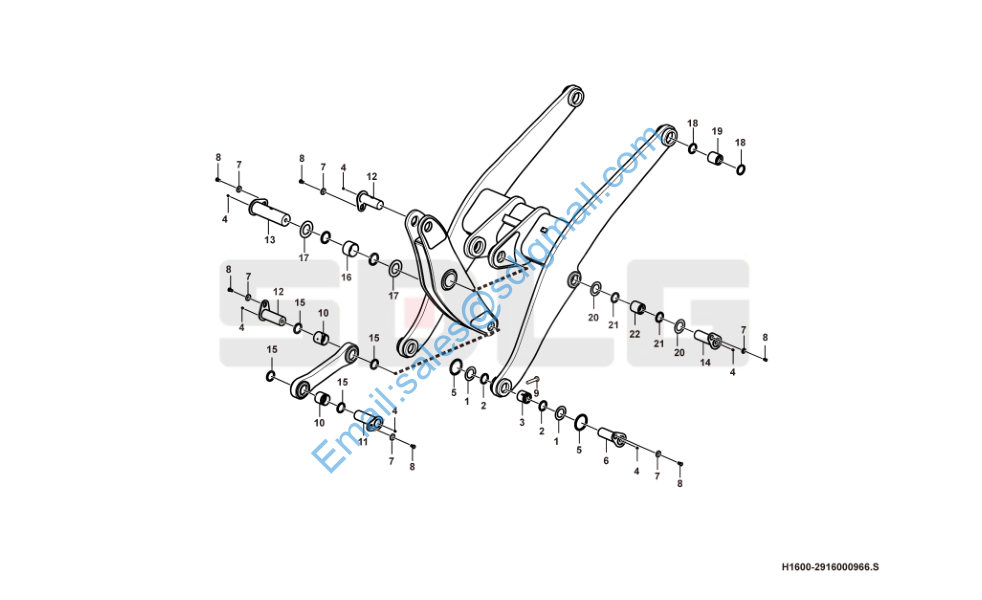

L978F 工作装置附件 Accessories H1600-2916000966

1 4043000412 垫片LGB303-90*160*2 Shim Y 4

2 4043000366 防尘圈LGB307-90 Sealing ring Y 4

3 29160008261 轴套 Bushing Y 2

4 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 8

5 4043000096 O形圈LGB308-148*12 O-ring Y 6

6 4043000428 销轴LGB301-90*138*255-40Cr Weld pin Y 2

7 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 8

8 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 8

9 4011001309 螺栓GB5786-M10*1*20flZnyc-8.8-480 Screw Y 4

10 4043000744 轴套LGB302-100*106A3 Bushing Y 2

11 4043000084 销轴LGB301-100*138*255-40Cr Weld pin Y 1

12 4043000254 销轴LGB301-100*148*275-40Cr Weld pin Y 2

13 4043000427 销轴LGB301-140*220*420/2-40Cr Weld pin Y 1

14 4043000608 销轴LGB301-95*127*245/2G-40Cr Pin Y 2

15 4043000095 防尘圈LGB307-100 Sealing ring Y 4

16 4043000433 轴套LGB302-140*110A1 Bushing Y 2

17 4043000430 垫片LGB303-140*220*2 Shim Y 2

18 4043000058 防尘圈LGB307-110 Sealing ring Y 4

19 29160008231 动臂后端轴套 Bushing Y 2

20 4043000429 垫片LGB303-95*180*2 Shim Y 4

21 4043000057 防尘圈LGB307-95 Sealing ring Y 4

22 4043000092 轴套LGB302-95*100A2 Bushing Y 2
