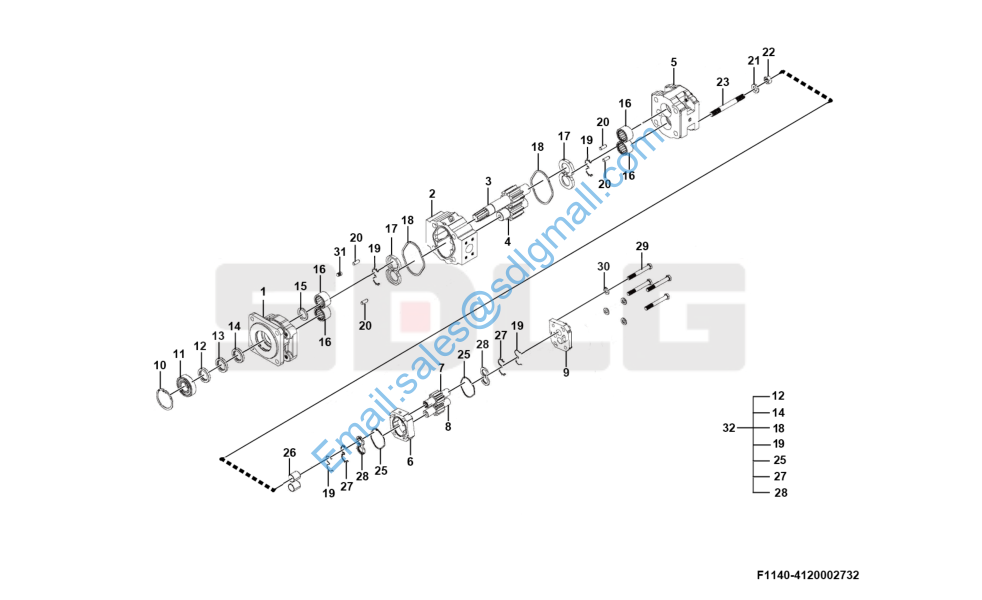

L978F 双联泵118/33(120101) Gear pump F1140-4120002732

1 4120001715405 前盖3165037202c Cover N 1

2 4120002732001 中间体3168217534A Centering block N 1

3 4120002732002 主动齿轮3161235019A Drive shaft gear N 1

4 4120002732003 被动齿轮3162717000 Shaft N 1

5 4120002732004 联接体P76-101L Pump body N 1

6 4120002732005 中间体3338433526A Centering block N 1

7 4120002732006 主动齿轮3331133401B Drive shaft gear N 1

8 4120002732007 被动齿轮3332733000 Shaft N 1

9 4120002732008 后盖3331133401B Cover N 1

10 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1

11 4120001715401 轴承3910381078 Bearing N 1

12 4120001715402 O形圈3912881457 O-ring N 2

13 4120001715403 密封套3912584051 Sleeve N 1

14 4120001715404 油封3912883052 Sealing ring N 2

15 4120002732009 密封环3912581011 Sealing ring N 2

16 4120001715408 轴承3910381060A Bearing N 4

17 4120001715410 侧板3912185026A Side board N 2

18 4120001715411 密封圈3912884024 Sealing ring N 2

19 4120001715409 密封件3912882052 Sealing ring N 12

20 4120001715415 销3912082033 Pin N 4

21 4120001715417 垫圈3913784028 Washer N 8

22 4120002731013 螺母3911451076 Nut N 8

23 4120002732010 螺柱3911425107 Stud N 8

24 4016000288 P-销GB119.2-6*14 Pin gb119.2-6*14 N 2

25 4120002732011 O型圈020153N0552 O-ring Y 2

26 4120002732012 轴套总成CL3912185093 Bushing N 2

27 4120002732013 密封件CL3912882161 Sealing ring N 2

28 4120002732014 支撑件CL3912882162 Back-up ring N 2

29 4011001394 螺栓GB5782-M12*130flZnyc-10.9-480 Bolt Y 4

30 4120002732015 垫圈3912782232 Washer N 4

31 4120001715407 螺堵3912286004 Plug N 1
32 4120002732016 密封件包 Sealing kit Y 1
