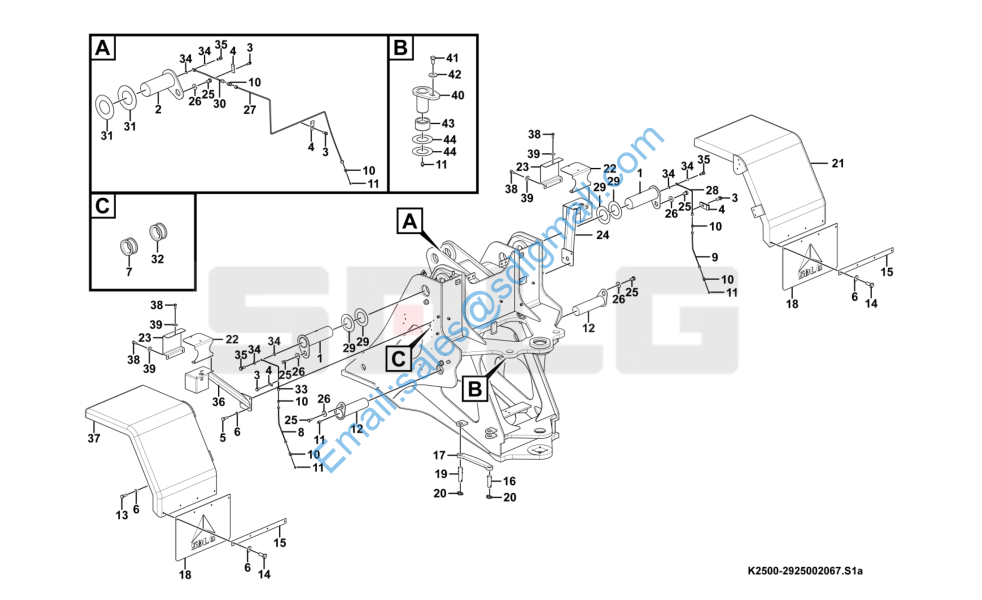

L978F 前车架附件 Front frame system K2500-2925002067

1 4043000747 销轴LGB301-110*195N*360-1001G Pin Y 2

2 4043000746 销轴LGB301-100*140N*255-1601G Pin Y 1

3 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4

4 29250013741 压板 Plate Y 8

5 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 6

6 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 24

7 29250008061 走线胶套 Rubber sleeve Y 2

8 29250015281 左下动臂润滑油管 Lubricating pipe Y 1

9 29250015321 下转斗缸润滑油管 Lubricating pipe Y 1

10 29250014121 接头 Nipple Y 6

11 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 7

12 4043000745 销轴LGB301-95*195N*360-1001G Pin Y 2

13 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 10

14 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 8

15 29250009341 压板 Plate Y 2

16 29270000121 锁定杆前销轴 Pin Y 1

17 29250009131 锁定杆 Transport lock Y 1

18 29250009331 橡胶板 Rubber cushion Y 2

19 29270000091 锁定杆后销轴 Pin Y 1

20 29270000081 卡环 Lock ring Y 2

21 29250009111 右挡泥瓦 Front fender Y 1

22 29250016811 灯架护板 Protecting plate Y 2

23 29250011021 照灯网板 Protecting plate Y 2

24 29250016791 右灯架 Lantern bracket Y 1

25 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 5

26 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 5

27 29250015301 右下动臂润滑油管 Lubricating pipe Y 1

28 29250015231 右上动臂润滑油管 Pipe Y 1

29 4043000043 垫片LGB303-110*180*1 Shim Y 4

30 29250015251 上转斗缸润滑油管 Pipe Y 1

31 4043000353 垫片LGB303-100*180*1 Shim Y 2

32 29250001351 走线胶套 Rubber sleeve Y 2

33 29250015201 左上动臂润滑油管 Pipe Y 1

34 29250000301 垫片 Shim Y 12

35 29250000291 通油螺栓 Bolt Y 3

36 29250016771 左灯架 Lantern bracket Y 1

37 29250009041 左挡泥瓦 Front fender Y 1

38 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 10

39 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 10

40 29250009221 前转向销轴 Pin Y 2

41 4011001241 螺栓GB5783-M12*25flZnyc-8.8-480 Screw Y 2

42 4015000427 垫圈GB96.1-12flZnyc-300HV-480 Washer Y 2

43 4043000438 轴套LGB302-50*36A2 Bushing Y 2

44 4043000032 垫片LGB303-50*90*1 Shim Y 4
