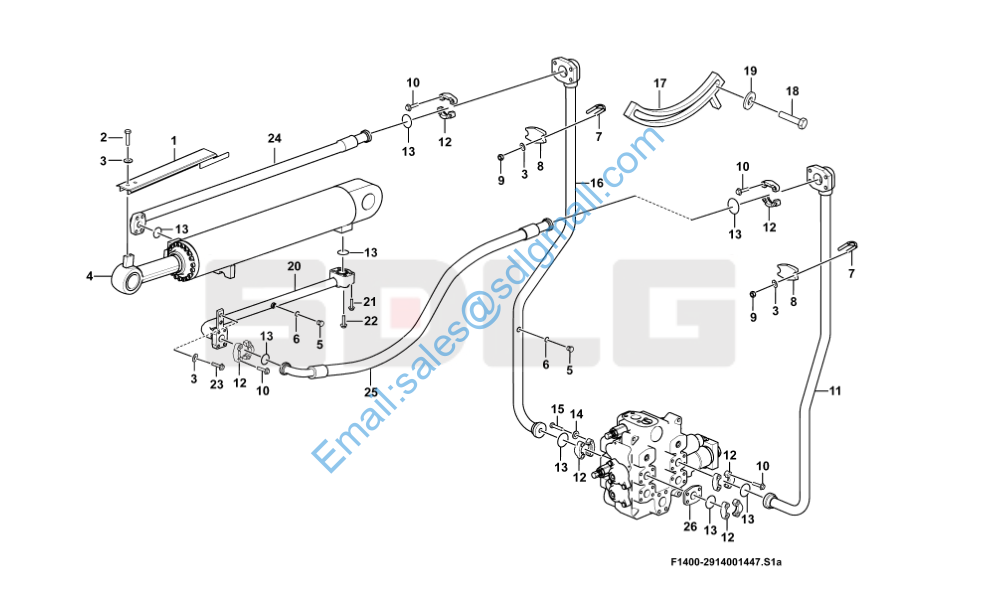

LG968N 转斗缸总成 Tilt cylinder system F1400-2914001447

1 29140014481 放平护板 Indicator plate Y 1

2 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 4

3 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 14

4 4120004406 转斗油缸HSGF-210*110*560-1167 Tilt cylinder Y 1

5 4041000774 螺塞LGB135-01422 Plug Y 2

6 4041000767 O形圈LGB168-11124 O-ring Y 2

7 29140012931 U形螺栓 U-bolt Y 4

8 4041001018 底板LGB160-3040 Bracket Y 4

9 4013000007 螺母GB6170-M10EpZn-8 Nut Y 8

10 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 28

11 29140012941 转斗联大腔钢管 Pipe Y 1

12 4041000026 分体法兰LGB117-310491 Flange half Y 8

13 4030000026 O形圈GB3452.1-32.5*3.55G O-ring Y 9

14 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4

15 4011000053 螺栓GB5782-M10*90EpZn-8.8 Bolt Y 4

16 29140012951 转斗联小腔钢管 Pipe Y 1

17 29140016451 动臂指示板 Indicator plate Y 1

18 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2

19 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 2

20 29140014501 转斗缸大腔钢管 Pipe Y 1

21 4011000309 螺栓GB16674-M10*50EpZn-8.8 Bolt Y 2

22 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2

23 4011000085 螺栓GB5783-M10*35EpZn-8.8 Bolt Y 2

24 29140014521 转斗缸小腔胶管 Hose Y 1

25 29140014531 转斗缸大腔胶管 Hose Y 1

26 4041000818 防尘盖LGB134-01049 Cover Y 2
