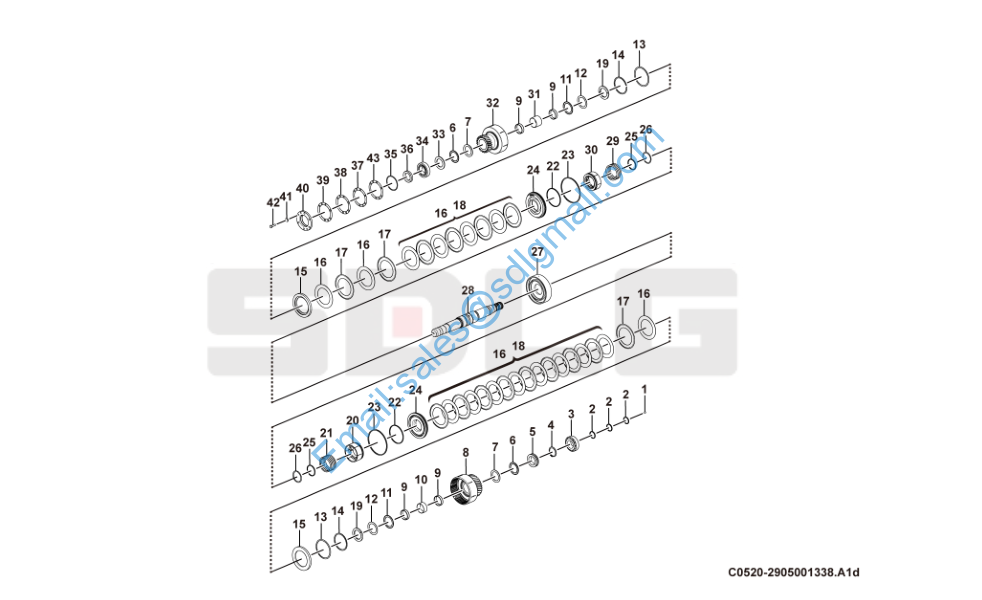

LG968N 离合器K34 Clutch C0520-2905001338

1 4090000130 钢球GB308-8.5-GCr15 Ball Y 2
2 29050013911 活塞环 Piston ring Y 3
3 4021000163 轴承25581/25520 Bearing Y 1
4 29050014131 挡圈50 Retaining ring Y 1
5 29050014291 止推垫片 Shim Y 1
6 4110000627 轴承NTA-3244 Bearing Y 2
7 29050014231 止推垫片 Shim Y 2
8 29050014271 齿轮总成R41 Gear Y 1
9 4110000629 轴承K505517H Bearing Y 4
10 29050014261 隔套 Spacer sleeve Y 1
11 4110000628 轴承NTA-3446 Bearing Y 2
12 29050013931 止推垫片 Shim Y 2
13 29050013841 卡环 Retaining ring Y 2
14 29050013831 卡环 Retaining ring Y 2
15 29050014181 受压盘 Pressure disc Y 2
16 29050014171 主动摩擦片 Friction disc Y 15
17 29050015521 从动摩擦片 Friction disc Y 3
18 29050014161 从动摩擦片 Friction disc Y 12
19 29050013951 隔离环 Spacer ring Y 2
20 29050014151 离合器轮毂 Clutch hub Y 1
21 29050013981 弹簧 Spring Y 1
22 29050014101 活塞环 Piston ring Y 2
23 29050014091 活塞环 Piston ring Y 2
24 29050014111 活塞 Piston Y 2
25 29050013971 活塞环 Piston ring Y 2
26 29050013991 卡环 Retaining ring Y 2
27 29050014071 隔离架 Separator Y 1
28 29050014051 K34轴 Clutch shaft Y 1
29 29050014121 弹簧 Spring Y 1
30 29050014141 离合器轮毂 Clutch hub Y 1

31 29050014311 隔套 Spacer sleeve Y 1

32 29050014301 齿轮总成R42 Gear Y 1

33 29050014321 定位环 Locating ring Y 1

34 4021000161 轴承25590/25520/Q Bearing Y 1

35 4030000808 O形圈GB3452.1-75.0*3.55G-FPM O-ring Y 1

36 4030000594 油封45*65*10 Sealing ring Y 1

37 29050013511 调整垫片 Shim Y 6

38 29050013521 调整垫片 Shim Y 4

39 29050013531 调整垫片 Shim Y 2

40 29050013501 轴承保持架 Bearing seat Y 1

41 29050015471 垫圈8 Washer Y 6

42 4011000724 螺栓GB5783-M8*25-8.8 Bolt Y 6

43 29050026141 调整垫片 Shim Y 1
