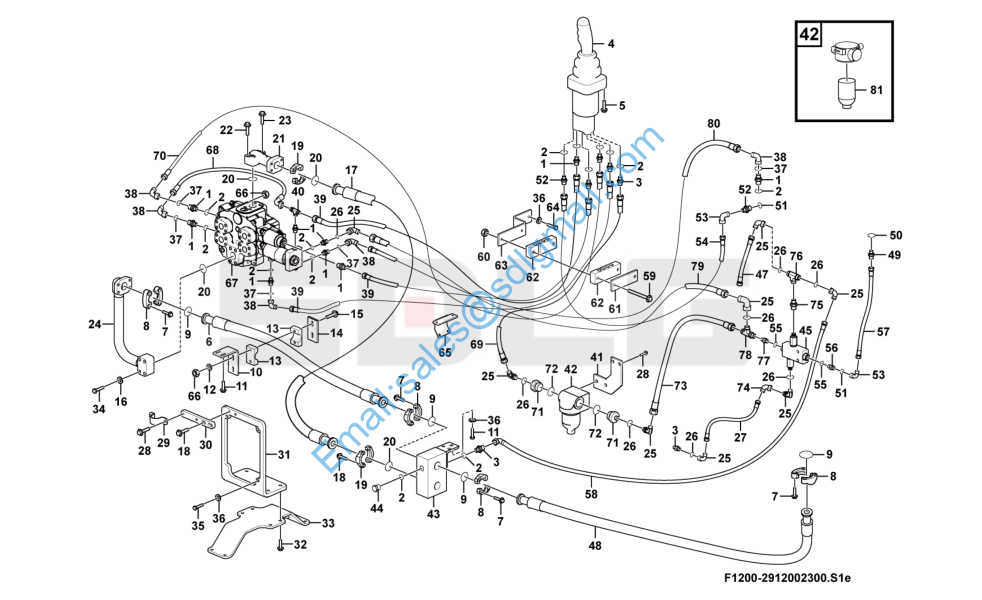

LG968N 液压操纵总成 Hydraulic control system F1200-2912002300

1 4041000133 直接头LGB120-01414 Nipple Y 11

2 4041000767 O形圈LGB168-11124 O-ring Y 18

3 4041000604 直接头LGB120-01614 Nipple Y 4

4 4120006649 先导阀总成PCL403-35-B Control lever Y 1

5 4011000153 螺栓GB16674-M6*16EpZn-8.8 Bolt Y 4

6 4041001957 软管LGB161-014159 Hose assembly Y 1

7 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 20

8 4041000011 分体法兰LGB117-314650 Flange half Y 4

9 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 4

10 29120019981 橡胶块支架 Bracket Y 1

11 4011000082 螺栓GB5783-M10*25EpZn-8.8 Bolt Y 5

12 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 4

13 29120019511 橡胶管夹-50 Clamp Y 2

14 29120019531 压板 Plate Y 1

15 4011000053 螺栓GB5782-M10*90EpZn-8.8 Bolt Y 2

16 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2

17 29120023671 多路阀进油胶管 Hose assembly Y 1

18 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 10

19 4041000056 分体法兰LGB117-312550 Flange half Y 2

20 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 4

21 29120019991 进油钢管 Pipe Y 1

22 4011000478 螺栓GB16674-M12*55EpZn-8.8 Bolt Y 2

23 4011000793 螺栓GB16674-M12*65EpZn-8.8 Screw Y 2

24 29120020001 多路阀回油钢管 Pipe Y 1

25 4041001023 组合接头LGB143-01608 Nipple Y 8

26 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 9

27 4041001962 软管LGB127-004185 Hose assembly Y 1

28 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 6

29 29120019601 管夹 Clamp Y 1

30 29120019611 固定板 Plate Y 1

31 29120019561 多路阀固定板 Valve plate Y 1

32 4011000145 螺栓GB16674-M14*35EpZn-8.8 Bolt Y 4

33 29120019571 多路阀支架 Bracket Y 1

34 4011000333 螺栓GB5783-M12*75EpZn-8.8 Screw Y 4

35 4011001013 螺栓GB5782-M10*80EpZn-10.9 Screw Y 3

36 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 11

37 4030000530 O形圈GB3452.1-6.00*1.80G O-ring Y 5

38 4041001047 组合接头LGB143-01406 Nipple Y 5

39 4041001964 软管LGB124-003230 Hose assembly Y 3

40 4190000204 三通接头ET08LOMDA3C Three-way nipple Y 1

41 29120016021 固定板 Anchor plate Y 1

42 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1

43 29120022901 油路块总成 Block Y 1

44 4041000774 螺塞LGB135-01422 Plug Y 1

45 4120005063 压力选择阀SF8-D Valve Y 1

46 4011000473 螺栓GB16674-M10*55EpZn-8.8 Bolt Y 2

47 4041002020 软管LGB128-404044 Hose assembly Y 1

48 4041001899 软管LGB163-014098 Hose assembly Y 1

49 4041000766 直接头LGB120-01818 Nipple Y 1

50 4041000768 O形圈LGB168-11524 O-ring Y 1

51 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 2

52 4041000150 直接头LGB120-01814 Nipple Y 2

53 4041001063 组合接头LGB143-01810 Nipple Y 2

54 4041001963 软管LGB164-005152 Hose assembly Y 1

55 29120014931 垫圈 Washer Y 2

56 29120007661 接头 Nipple Y 1

57 4041001960 软管LGB164-405088 Hose assembly Y 1

58 4041001956 软管LGB128-004029 Hose assembly Y 1

59 4011000493 螺栓GB16674-M8*90EpZn-8.8 Bolt Y 4

60 4013000033 螺母GB6170-M8EpZn-8 Nut Y 4

61 29120016351 固定板 Anchor plate Y 2

62 29120016741 管夹 Clamp Y 4

63 29120020071 弯板 Plate Y 1

64 4011000081 螺栓GB5783-M10*20EpZn-8.8 Bolt Y 2

65 29120019621 先导管支架 Bracket Y 1

66 4013000007 螺母GB6170-M10EpZn-8 Nut Y 3

67 4120006638 多路阀KM300-II-20A Control valve Y 1

68 4041001554 软管LGB125-003070 Hose assembly Y 1

69 4041000602 软管LGB124-004170 Hose Y 1

70 4041001362 软管LGB124-003280 Hose assembly Y 1

71 29120015081 接头 Nipple Y 2

72 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2

73 4041001959 软管LGB124-004039 Hose assembly Y 1

74 4041001521 组合接头LGB143-11608 Nipple Y 1

75 4120005031 接头GZ10LCF Nipple Y 1

76 4120003065 梭阀WV-10 Shuttle valve Y 1

77 29120007651 接头 Nipple Y 1

78 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1

79 4041001961 软管LGB127-004132 Hose assembly Y 1

80 4041001965 软管LGB164-003200 Hose assembly Y 1

81 4120001954001 滤芯（先导滤清器滤芯)PLFX-30X10 Filter insert Y 1
